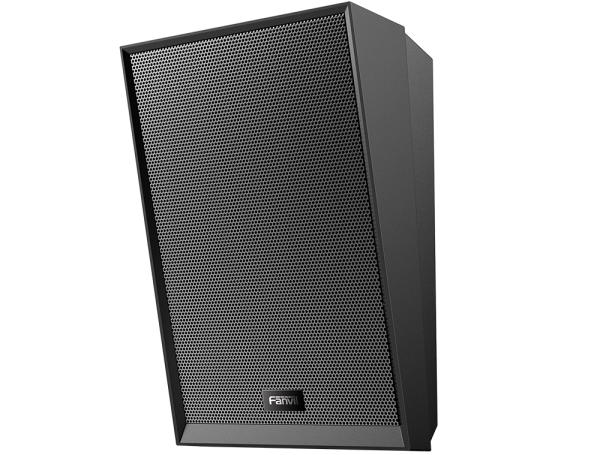

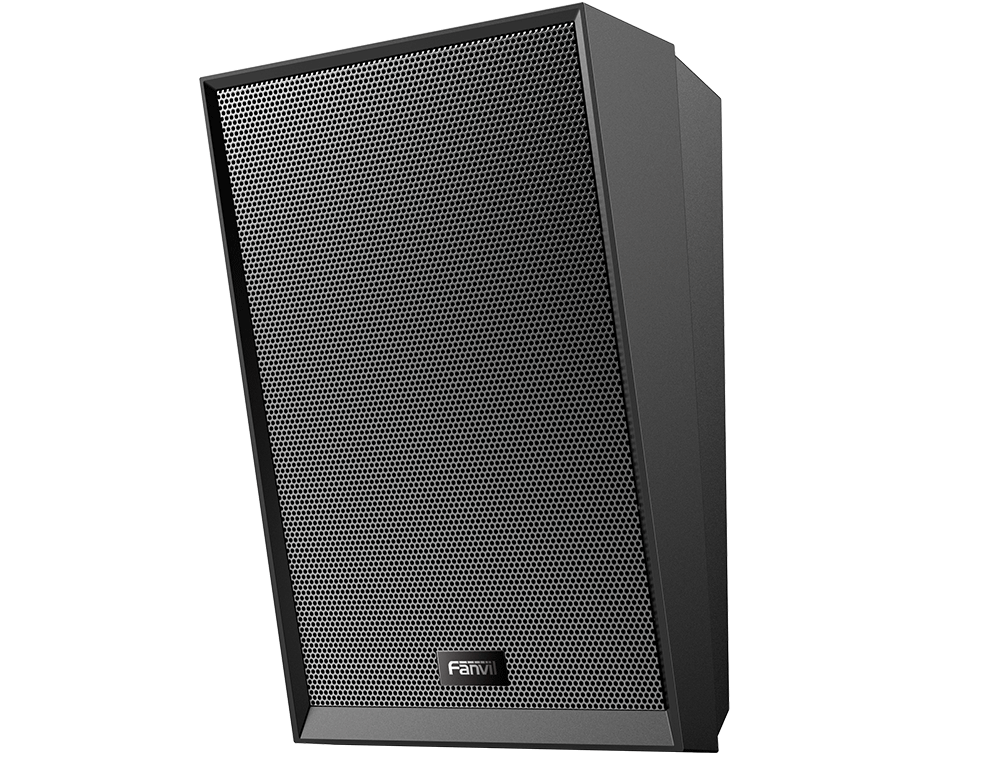

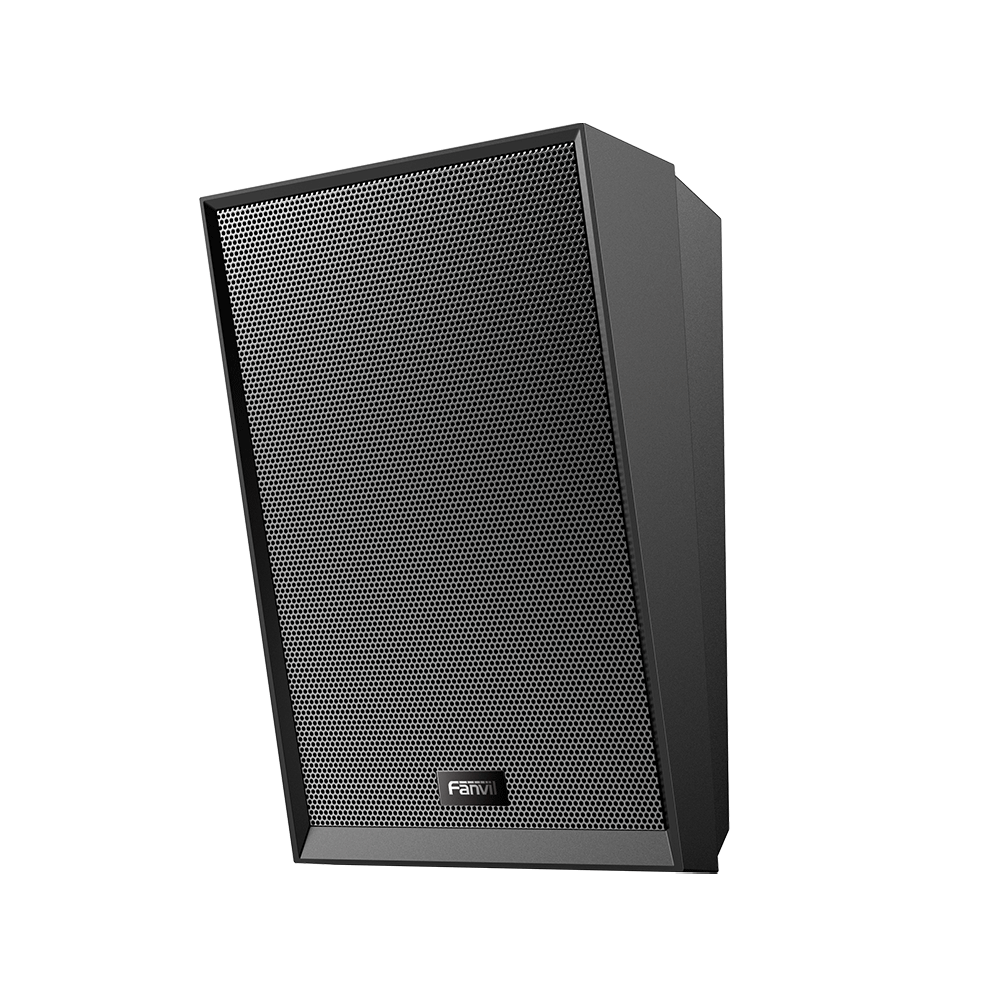

Wall-mounted Speaker with UTP A212 black

Basic Functions
⚫ 2 SIP lines
⚫ Wall-mounted installation, rotary support installation (optional)
⚫ Main speaker 8Ω15W can be connected to external 8Ω15W
passive sub-speaker
⚫ Built-in microphone, support monitoring, self-test, intercom
application
⚫ Support HD voice, using G.722 and Opus encoding
⚫ Support lossless sound quality broadcasting, MP3 and Wav
encoding
⚫ Support 20 multicast partitions
⚫ Built-in 24MB audio file storage space, support scheduled task
broadcast
⚫ Customize audio files for emergency notification and alarm
⚫ 3 short circuit input detection, 1 short-circuit output, linkage
security alarm device
⚫ Support external IP camera video linkage
⚫ Support Web remote adjustment volume
⚫ Support PoE/PoE+ power supply or DC24V/2A power supply
⚫ adaptive 10/100 Mbps network port
Device Functions
⚫ Default auto answer (Auto-answering)
⚫ Network time synchronization
⚫ Remote volume adjustment
⚫ Dynamic multicast function
⚫ Action URL / Active URI
Audio
⚫ Audio codecs: G.711A/U, G.729A/B, iLBC, G.723, G.726-32K,
G.722, Opus
⚫ DTMF: In-band, out-of-band (RFC2833/SIP INFO)
⚫ Speaker:
➢ 5″ coaxial treble
➢ Frequency response: 100-20KHz
➢ Sensitivity: 88dB±3dB 1M/1W
➢ Impedance: 8Ω
➢ MAX SPL: 105dB
➢ Speaker power
PoE: Main speaker 8W
PoE+: Main speaker 15W
DC 24/2A: Main speaker 15W(support external 8Ω15W sub
speaker)
⚫ Mic
➢ Omnidirectional microphone
➢ Sensitivity: -38±3dB, impedance 2.2k ohm, bias voltage 2V
Fanvil A212 wall-mounted speaker is a commercial-grade IP audio terminal
integrating broadcasting and intercom functions. It supports 20 multicast zones
with priority management and uses G.722 and Opus codecs for high-definition
audio. It also supports lossless MP3 and WAV broadcasting and can connect to a
15W passive speaker for enhanced amplification. The A212 integrates seamlessly
with systems such as converged communication systems, video surveillance
systems, Fanvil broadcast & intercom systems, access control systems, digital
billboards, and fire alarm systems, allowing for centralized configuration and
operation.
Highlights
□√ Excellent sound quality: Support HD intercom, lossless music broadcast
□√ Flexible integration: Support standard SIP protocol, HTTP API, short circuit input
and output and video linkage, easy to integrate with third-party systems
□√ Convenient management: Support Web, DM software, FDMCS and Fanvil
broadcast & intercom APP management
□√ Functional integration: Support paging broadcasting, scheduled broadcasting,
emergency broadcasting, two-way intercom, self-check/monitoring, priority
management and other functions
□√ Multi-mode: Serverless mode, converged communication mode, Fanvil
broadcast & intercom system mode and external linkage mode
Network
⚫ 10/100 Mbps
⚫ Network mode: IPv4/IPv6/IPv4&IPv6
⚫ IP Setting: Static IP / DHCP / PPPoE
⚫ VPN: L2TP / OpenVPN
⚫ VLAN
⚫ LLDP
⚫ QoS
Protocols
⚫ SIP2.0 over UDP/TCP/TLS
⚫ RTP/RTCP/SRTP
⚫ STUN
⚫ DHCP
⚫ IPv6
⚫ PPPoE
⚫ L2TP
⚫ OpenVPN
⚫ SNTP
⚫ FTP/TFTP
⚫ HTTP/HTTPS
⚫ TR-069
Deployment & Management
⚫ Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
PnP/TR-069
⚫ Web management portal
⚫ Web-based Packet-dump
⚫ Configuration export/import
⚫ Firmware upgrade
⚫ Syslog
Physical Specifications
⚫ DC 24V/2A port×1
➢ 2pin Terminal socket
⚫ RJ45 port×1: connect the Internet or LAN
➢ Support PoE power supply (IEEE 802.3at, class 4)
⚫ SPK port×1: support external 8Ω15W sub speakers
⚫ Short circuit input port×3
⚫ Short circuit output port×1
➢ Max support: 30V/2A
➢ Terminal socket
⚫ LED: Blue, green, cyan, can be customized
⚫ DC power input: DC 24V/2A
⚫ Working temperature: -20℃~ 55℃
⚫ Storage temperature: -30℃~ 60℃
⚫ Working humidity: 10~95%
⚫ Installation: Wall-mounted installation, universal bracket
installation(optional)
⚫ Color: Black/White
⚫ Device overall dimensions: 184.85mm×275.38mm×124.56mm
⚫ Gift box dimensions: 237mm×350mm×182mm
⚫ Outer CTN dimensions: 578mm×375mm×500mm(6 PCS)
