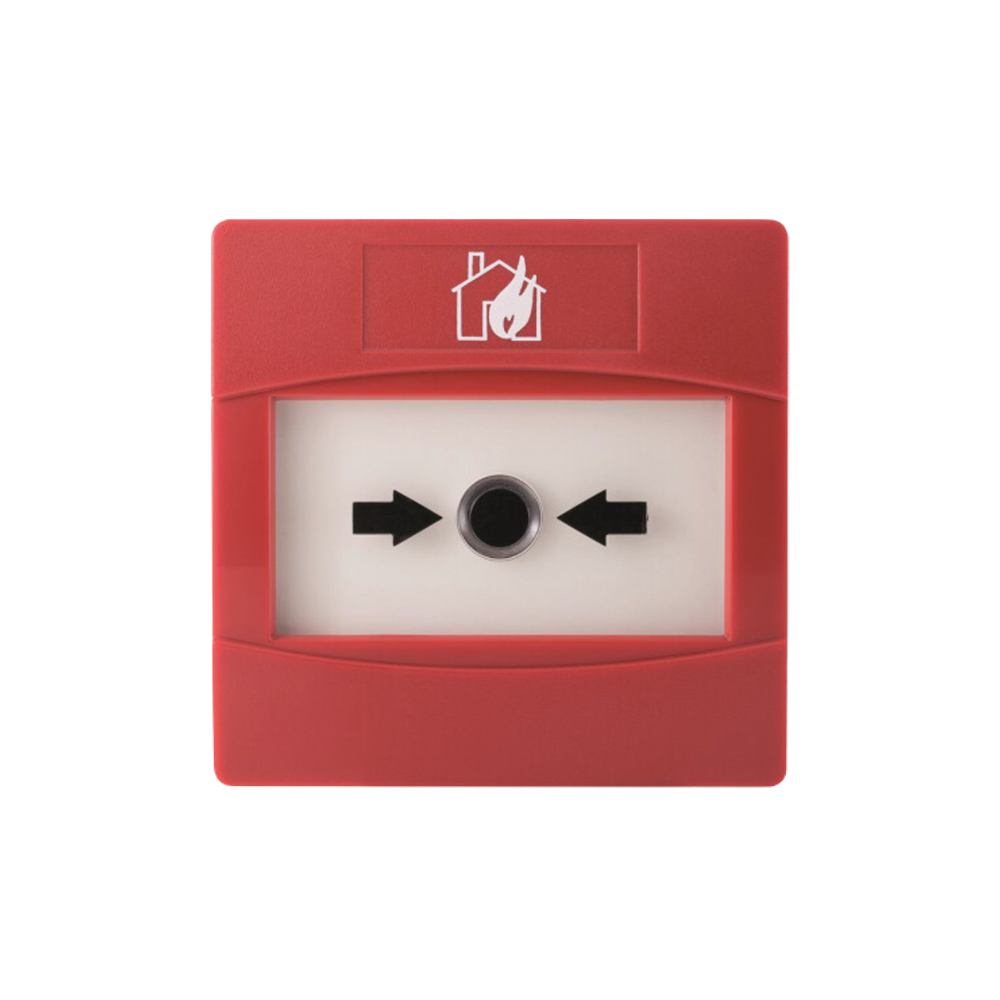

Wireless Callpoint SGCP200


The Libra wireless system offers an excellent solution for all those fire detection applications which would find a traditional hard-wired system installation to be either unfavourable or cost-inefficient, places such as: hotels, museums, churches or similar cultural sites.

The Libra is the ideal way of enhancing a traditional hard-wired analogue addressable fire detection system with wireless devices.

This is done by means of a translator which allows the control panel to manage both the translator and its devices as loop devices. The loop-powered system translator supports as many as 32 devices,

it communicates with the control panel using the same protocol as the hard-wired devices.

All the commands used by the VEGA range are valid for all VEGA wireless devices: optical smoke detectors, heat detectors, multicriteria detectors, input modules, callpoints, sounders.

Features

  • On site programming
  • Two-way communication with the wire to wireless translator
  • Programmable sensitivity
  • High reliability and sensitivity
  • Flexible device installation on site SW supported
  • Convenience in mounting and service
  • Double battery (main and secondary) guarantees a correct supply for about 5 years. The battery status is monitored by the device
Kodi i produktit : 9137205 Kategori:

General technical characteristics

Operational frequency 868 Mhz
Radiated power 0.01 – 5mW
Modulation type GFSK
Frequency channel 7
Temperature -30°C +70°C
