POE Switch/4+2 100Mbps
WKPOE-42
- Supply power to wireless AP and IP Camera through CAT 5 cable
- 4 Port: 10/100M auto sensing RJ45 port. 2 Port: 10/100M auto sensing RJ45
- Support port auto-flip (Auto MDI/ MDIX)
- Total PoE Power: 65W (Port 1 - 4 )
- Max PoE power output is
- Support Vlan
- Switch Mode: Port 1-4: 10/100M auto-sensing. @100 meters; Port 5-6: 100M @ 100 meters
- Store and forward
- Fanless design, natural Mini size.
POE Switch/24+2+2/Full Gigabit
WKPOE-FG-2422
- Supply power to wireless AP and IP Camera through CAT 5 cable
- 24 Port: 10/100M/1000 auto sensing RJ45 port. 2 Port: 10/100/1000M auto sensing RJ45 2 Port: 10/100/1000M auto sensing SFP port.
- Support port auto-flip (Auto MDI/ MDIX)
- Total PoE Power: 400W (Port 1 - 24 )
- Max PoE power output is
- Support Vlan
- Switch Mode: Port 1-24: 10/100M/1000 auto-sensing. @100 meters; Port 25-26: 1000M @ 100 meters
- Store and forward
- Fanless design, natural Mini size.
POE Switch/16+2+2/Full Gigabit
WKPOE-FG-1622
- Supply power to wireless AP and IP Camera through CAT 5 cable
- 16 Port: 10/100M/1000 auto sensing RJ45 port. 2 Port: 10/100/1000M auto sensing RJ45 2 Port: 10/100/1000M auto sensing SFP port.
- Support port auto-flip (Auto MDI/ MDIX)
- Total PoE Power: 250W (Port 1 - 16 )
- Max PoE power output is
- Support Vlan
- Switch Mode: Port 1-16: 10/100M/1000 auto-sensing. @100 meters; Port 17-18: 1000M @ 100 meters
- Store and forward
- Fanless design, natural Mini size.
POE Switch/24+2+2up link Gigabit port
WKPOE-UG-2422
- Supply power to wireless AP and IP Camera through CAT 5 cable
- 24 Port: 10/100M auto sensing RJ45
- Support port auto-flip (Auto MDI/ MDIX)
- Total PoE Power: 400W (Port 1 - 24 )
- Max PoE power output is
- Support Vlan
- Switch Mode: Port 1-24: 10/100M auto-sensing. @100 meters; Port 25-26: 1000M @ 100 meters
- Store and forward
POE Switch/8+2+1/Full Gigabit
WKPOE-FG-821
- Supply power to wireless AP and IP Camera through CAT 5 cable
- 8 Port: 10/100M/1000M auto sensing RJ45 port. 2 Port: 10/100/1000M auto sensing RJ45
- Support port auto-flip (Auto MDI/ MDIX)
- Anti-thunder function for uplink port (Port 9-10 anti-thunder function reaches level 2)
- Total PoE Power: 120W (Port 1 - 8 )
- Max PoE power output is
- Support Vlan
- Switch Mode: Port 1-10: 10/100M/1000M auto-sensing. @100 meters; Port 9-10: 1000M @ 100 meters
- Store and forward
- Fanless design, natural Mini size.
POE Switch/16+2 up link Gigabit port
WKPOE-UG-162
- Can supply power to wireless AP and IP Camera
- 16*10/100Mbps auto-sensing RJ45 ports, 2*10/100/1000Mbps.
- Total PoE power: 250W (Port 1 to Port 16)
- Maximum power per port ups to 30W
- Support Auto MDI/ MDIX
- Support anti-thunder to port(AC power port: Differential mode / -2kv, common mode / -4kv)
- 3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3z, IEEE802.3ab
- Flow control mode: full duplex adopts IEEE 802.3x standard, and half duplex adopts Back pressure standard
- Adopt store-and-forward Up to line speed at the frame length range of 64 to 1536
- Built-in 1U rack power supply series, easy to place it into standard mounting brackets
- Plug and play

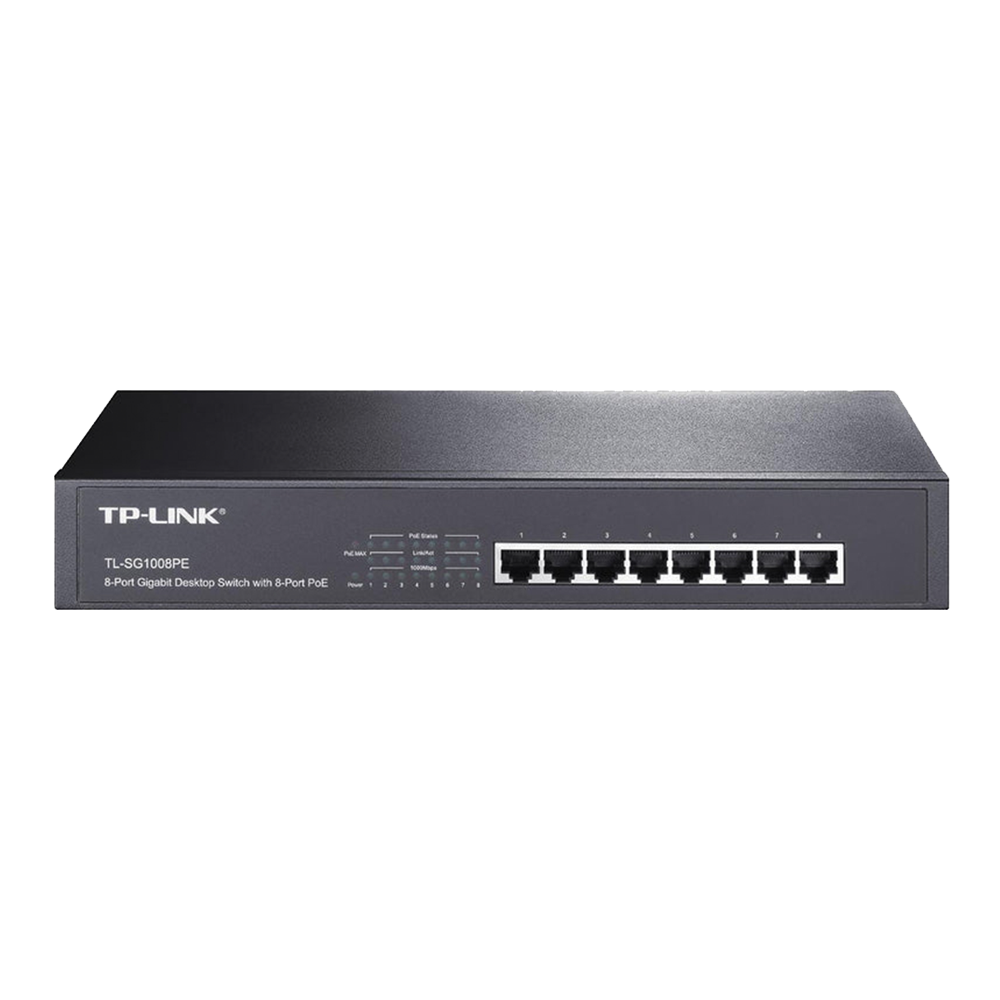

8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
TL-SG1008PE
- 8 10/100/1000Mbps RJ45 ports
- Equipped with 8 PoE supported ports to transfer data and power over a single cable
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Innovative energy-efficient technology reduces power consumption by up to 75%*
- Supports PoE standard with total power budget of 126W and up to 30W per port
- Plug and play design, no configuration required
