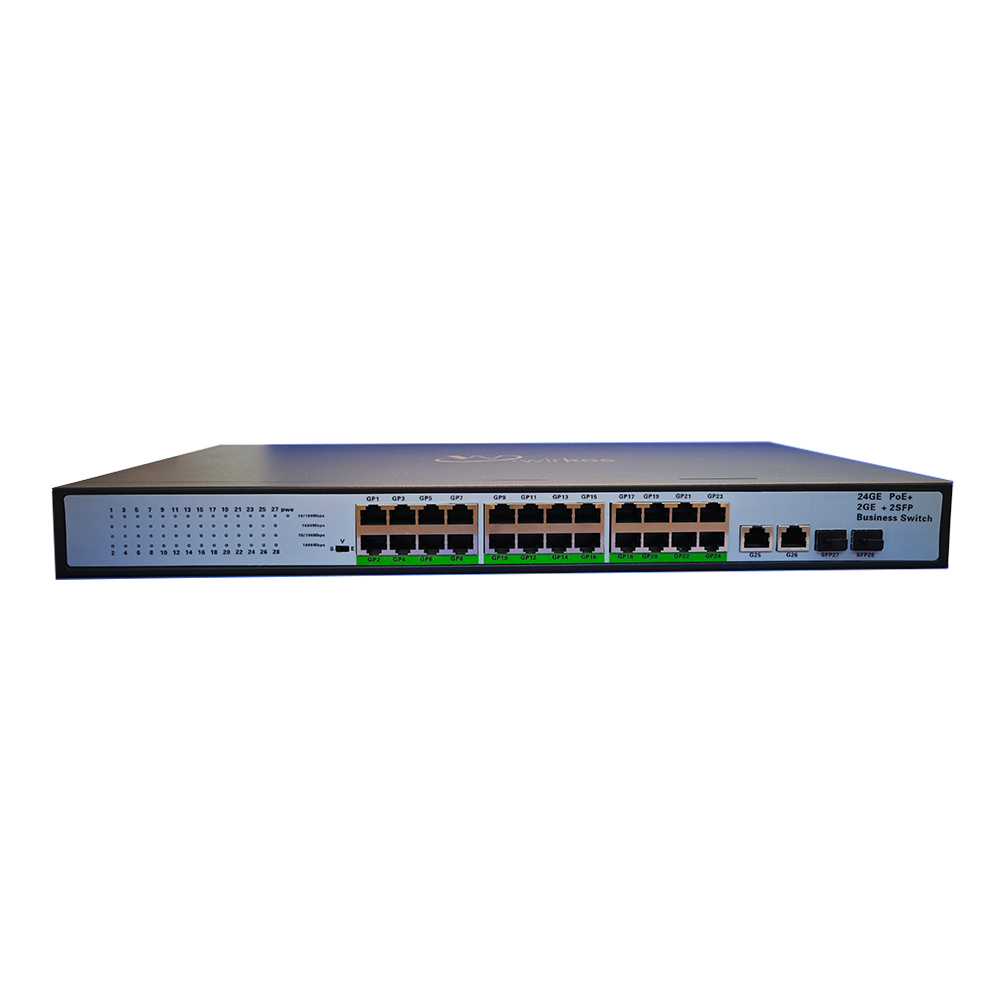

POE Switch/24+2+2/Full Gigabit


WKPOE-FG-2422

  • Supply power to wireless AP and IP Camera through CAT 5 cable
  • 24 Port: 10/100M/1000 auto sensing RJ45 port. 2 Port: 10/100/1000M auto sensing RJ45 2 Port: 10/100/1000M auto sensing SFP port.
  • Support port auto-flip (Auto MDI/ MDIX)
  • Total PoE Power: 400W (Port 1 – 24 )
  • Max PoE power output is
  • Support Vlan
  • Switch Mode: Port 1-24: 10/100M/1000 auto-sensing. @100 meters; Port 25-26: 1000M @ 100 meters
  • Store and forward
  • Fanless design, natural Mini size.



164.00

  • HD monitor transmission and power supply
  • Wireless AP layout transmission and power supply
  • Network telephone transmission , intelligent house and home system
  • Intelligent transportation supervisory system(ITS)
  • High-speed Way supervisory/Tele-Communication System
  • Security protection system, TV medical treatment
  • Long-distance Muti-media Schooling, Campus monitoring
  • Long-distance broadcast television transmission system
  • High-building Security Protection, Military Tele-Com projects







Product Model: WKPOE-FG-2422

Product Description: 24x 10/100M/1000 copper RJ45 Ports 2x 10/100/1000M copper RJ45 Ports 2x1000M SFP Ports. standard PoE Switch. Port 1-24 support PoE function with port isolation function. IEEE802.3af/at, max PoE power output is 30W. Total power is 400W. supports Vlan. Built-in power supply.



Note: PoE Power Supply:1,2( )/3,6(-) (Default) ; 45( ),78(-) (Option)







SKU: 8252 Category:

Product Name

28-Port Standard PoE Switch



Model

WKPOE-FG-2422





Connector Type

24x 10/100M/1000 copper RJ45 Ports 2x 10/100/1000M copper RJ45 Ports 2x1000M SFP

Ports (All ports support MDI/MDIX auto sensing) Port 1-24: PoE port, max PoE output for each port is 30W.



Network Media

100BASE-T: Cat5 UTP(≤100 meters); 1000BASE-TX: Cat5 or later UTP(≤100 meters);



Bandwidth

52GbpsAddress Database Size



2K



Network Latency

maximum delay less than 20 microseconds



Forwarding Mode

Store-And-ForwardNetwork Protocols



IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af/at



Power Supply

Input: AC100-240V, 50-60Hz



PoE Ports

24*PoE Ports



PoE Port Power

Max 30W



PoE Standard

IEEE802.3af/atWorking Environment

Operating Temperature: -20 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Humidity: 10% ~

90%, non-condensing; Storage Humidity: 10% ~ 95%, non-condensing; Working Altitude: 3000 m (10,000 ft); Storage Altitude: 3,000 m (10,000 ft)



Certification

CE Mark ,commercial CE/LVD EN60950



Radiation

CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class BTransmission Distance



Max 150 meters

Power Supply Type



1,2( )/3,6(-) (Default) ; 45( ),78(-) (Option)
