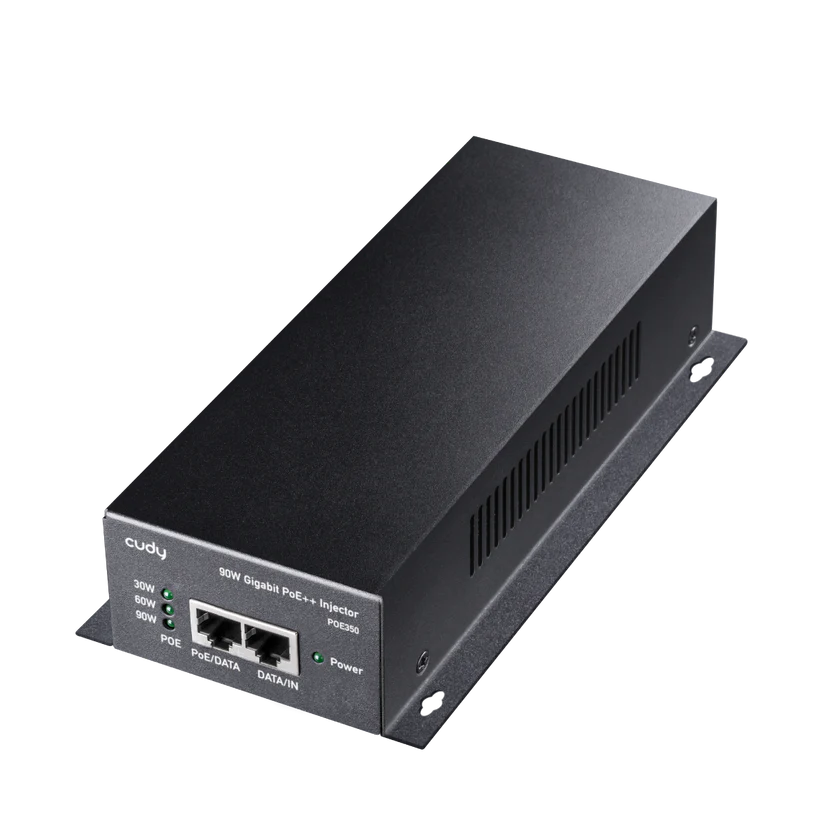

90W Wall-Mount PoE+ Injector (POE350)


A wall-mounted metal casing PoE adapter injecting up to 90W power to the Ethernet cable to power up the PoE device. Featuring brackets to be firmly attached to the wall.


  •  GbE In, GbE Out
  •  100m Transmission Distance
  •  802.3bt/at/af, Max 90W, 4-Pair
  •  4-Pair 1/2- 3/6+ 4/5+ 7/8-
  •  Power, PoE Wattage LED
  •  Surge Protection

73.28

Koha e arritjes së produktit : 29/03/2025 - 31/03/2025
Model Version POE350 1.0
Protocols 802.3 Protocols
  • 802.3i 10 Mbps over Twisted Pair
  • 802.3u 100 Mbps over Twisted Pair
  • 802.3ab 1 Gbps over Twisted Pair
  • 802.3af PoE
  • 802.3at PoE
  • 802.3bt PoE
PoE Uplink Stream 1× GbE
Downlink Stream 1× GbE, 802.3at/af/bt
Downlink Pin Assignment Four-Pair
Transimission Distance Cat. 5e or higher cable: 100 meters at Gigabit
Interfaces LED
  • Power
  • PoE Wattage
Power Input AC Inlet
Power AC 100-240V 50/60Hz
Max Power Output 90W
Max Power Output Note NA
Reliability Client Protection Surge Protection
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
Grounding Methods
  • Grounding Point
  • Three-Prong Plug
Environment Ambient Operating Temperature: -10~45 ℃ (14~113 ℉)
Storage Temperature: -20~70 ℃ (-4~158 ℉)
Operating Humidity: 10%~80% non-condensing
Storage Humidity: 5%~80% non-condensing
Certifications FCC, CE
Mechanical Installation
  • Desktop
  • Wall-mount
Casing Material Metal
Package Content
  • POE350
  • Power Cord
  • Installation Guide
Ordering Information Carton Net Weight 18.35 kg (40.45 lbs)
Carton Gross Weight 19.35 kg (42.66 lbs)
