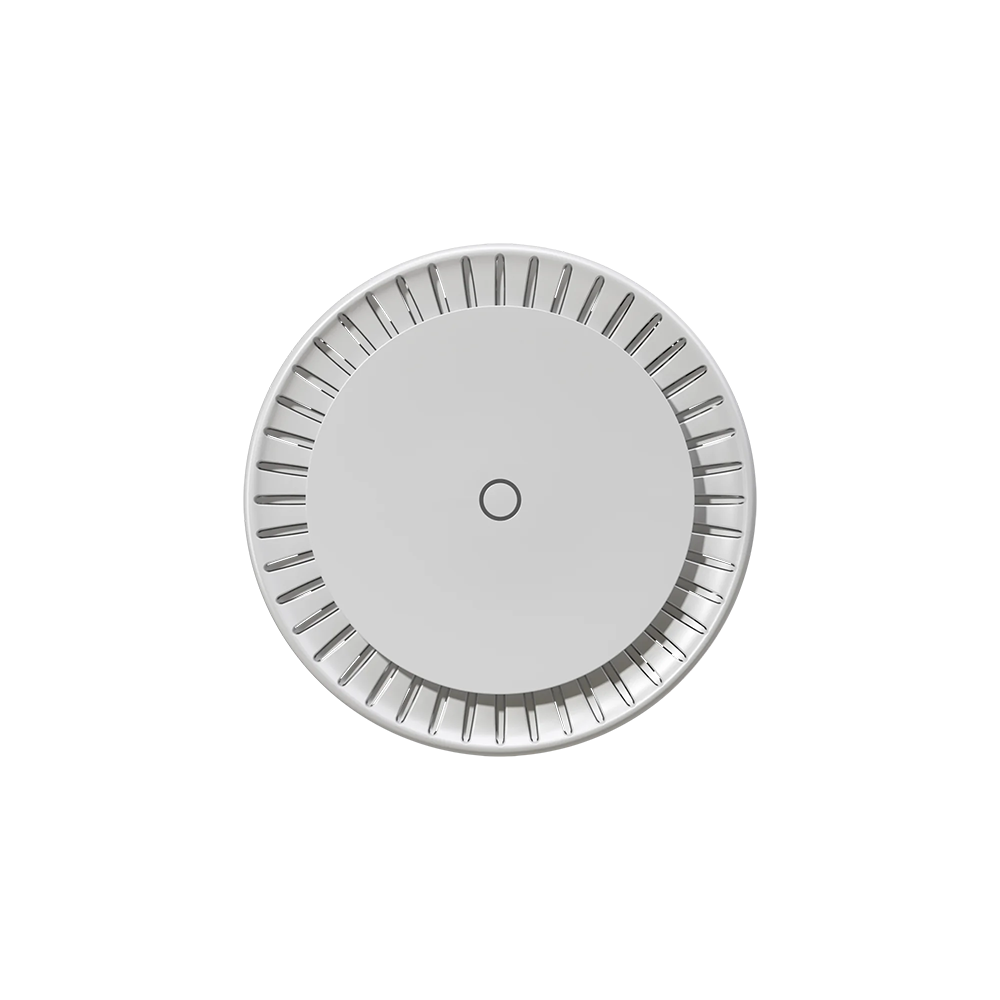

cAP ax


The best-selling ceiling access point is back – stronger than ever! A new generation of wireless greatness for your office, hotel, mall, or any other setups in crowded areas. Modern quad-core CPU, 1GB of RAM, 2x Gigabit Ethernet ports, PoE, Gen 6 802.11ax wireless, PSU – included!

133.20

Specifications

Details
Product code cAPGi-5HaxD2HaxD
Architecture ARM 64bit
CPU IPQ-6010
CPU core count 4
CPU nominal frequency auto (864 – 1800) MHz
Switch chip model IPQ-6010
RouterOS license 4
Operating System RouterOS (v7 only)
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 6
Wireless 2.4 GHz chip model QCN-5022
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 1200 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 5.5
Wireless 5 GHz chip model QCN-5052
Wireless 5 GHz generation Wi-Fi 6
WiFi speed AX1800

Ethernet

Details
10/100/1000 Ethernet ports 2
Number of 1G Ethernet ports with PoE-out 1

Powering

Details
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 18-57 V
Max power consumption 28.2 W
Max power consumption without attachments 9 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 18-57 V

PoE-out

Details
PoE-out ports Ether2
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 600 mA
Max out per port output (input 30-57 V) 400 mA
Max total out (A) 600 mA
Total output current 0.4
Total output power 19.2

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP 20

Other

Details
CPU temperature monitor Yes
Mode button Yes
