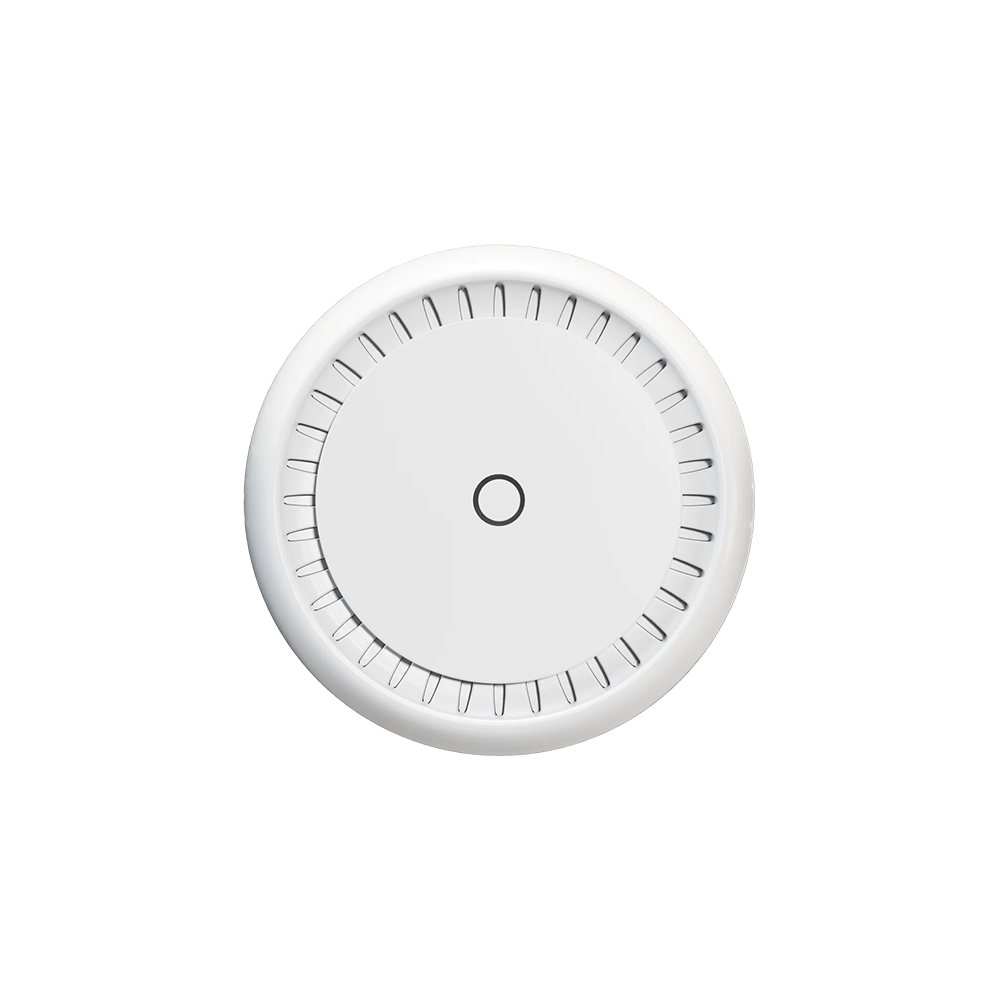

cAP XL ac


The ceiling AP on steroids! Our bestseller cAP is back – juiced up and stronger than ever. Compared to the previous cAP models, the improved high-gain antenna increases the covered area by up to 100%!

DATASHEET

103.60

Need a nice-looking access point that won’t get in your way? Or perhaps you’re managing the network in a crowded place and don’t want everyone to have physical access to the device? Either way – ceiling is the answer! The device itself is pretty sleek – the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.

The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!

Details
Product code RBcAPGi-5acD2nD-XL
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz
Switch chip model IPQ-4018
Dimensions 191 x 42 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 6
Wireless 2.4 GHz chip model IPQ-4018
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 5.5
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5
WiFi speed AC1200

Ethernet

Details
10/100/1000 Ethernet ports 2
Number of 1G Ethernet ports with PoE-out 1

Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 24 W
Max power consumption without attachments 11 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 18-57 V

PoE-out

Details
PoE-out ports Ether2
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 500 mA
Max out per port output (input 30-57 V) 330 mA
Max total out (A) 500 mA

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS

Other

Details
Mode button Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 26 -100
11MBit/s 26 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -96
54MBit/s 21 -80
MCS0 26 -96
MCS7 20 -75
MCS9 18 -70
