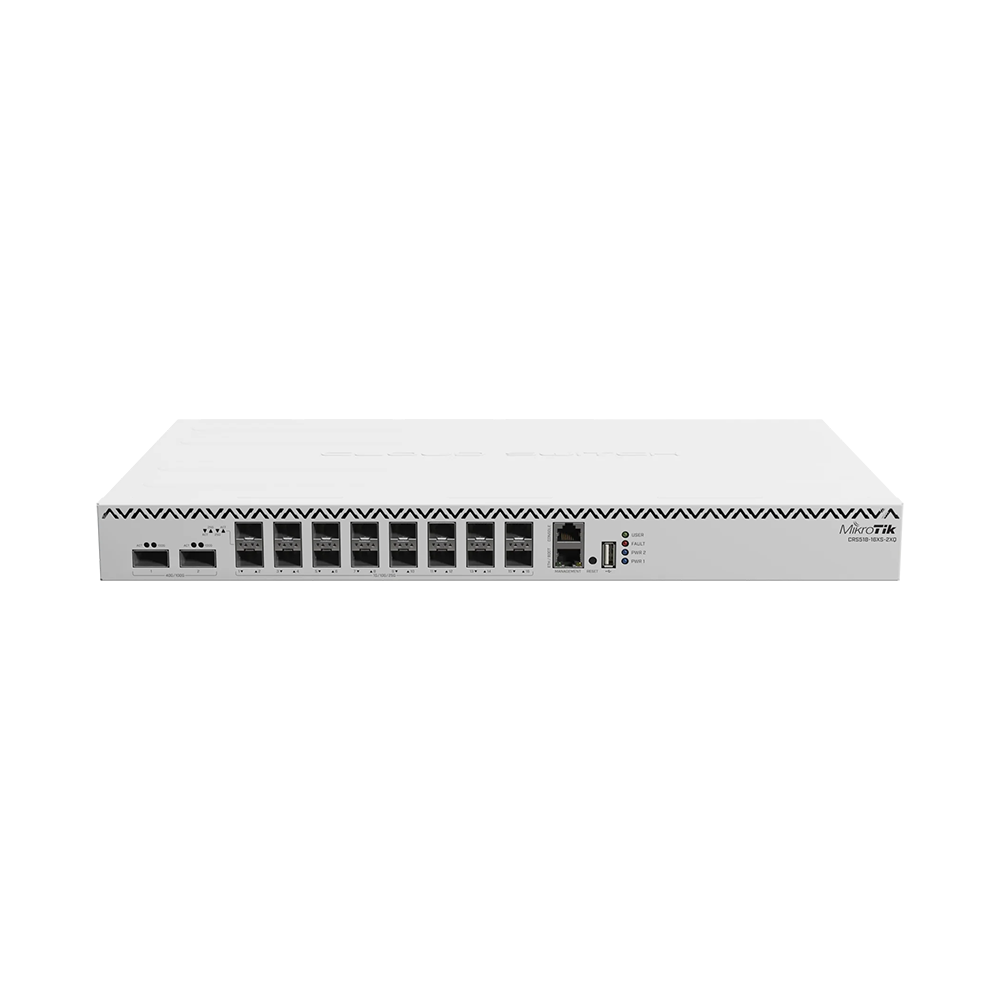

With 2x 100 Gigabit QSFP28 ports and 16x 25 Gigabit SFP28 ports, this is the perfect cost-effective addition to any enterprise network or data center. And with dual-redundant hot-swappable power supplies and fans, you won’t have to worry about unnecessary downtime.
pecifications
| Details |
| Product code |
CRS518-16XS-2XQ-RM |
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| RouterOS license |
6 |
| Operating System |
RouterOS (v7 only) |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 200’000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
|
|
Powering
| Details |
| Number of AC inputs |
2 |
| AC input range |
100-240 |
| Frequency (Hz) |
47-63 |
| Max power consumption |
95 W |
| Max power consumption without attachments |
45 W |
| Cooling type |
4 fans |
Ethernet
| Details |
| 10/100 Ethernet ports |
1 |
Fiber
| Details |
| Number of 25G SFP28 ports |
16 |
| Number of 100G QSFP28 ports |
2 |
Peripherals
| Details |
| Serial console port |
RJ45 |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Other
| Details |
| CPU temperature monitor |
Yes |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Certification & Approvals
| Details |
| Certification |
CE, EAC, ROHS |
| IP |
20 |
