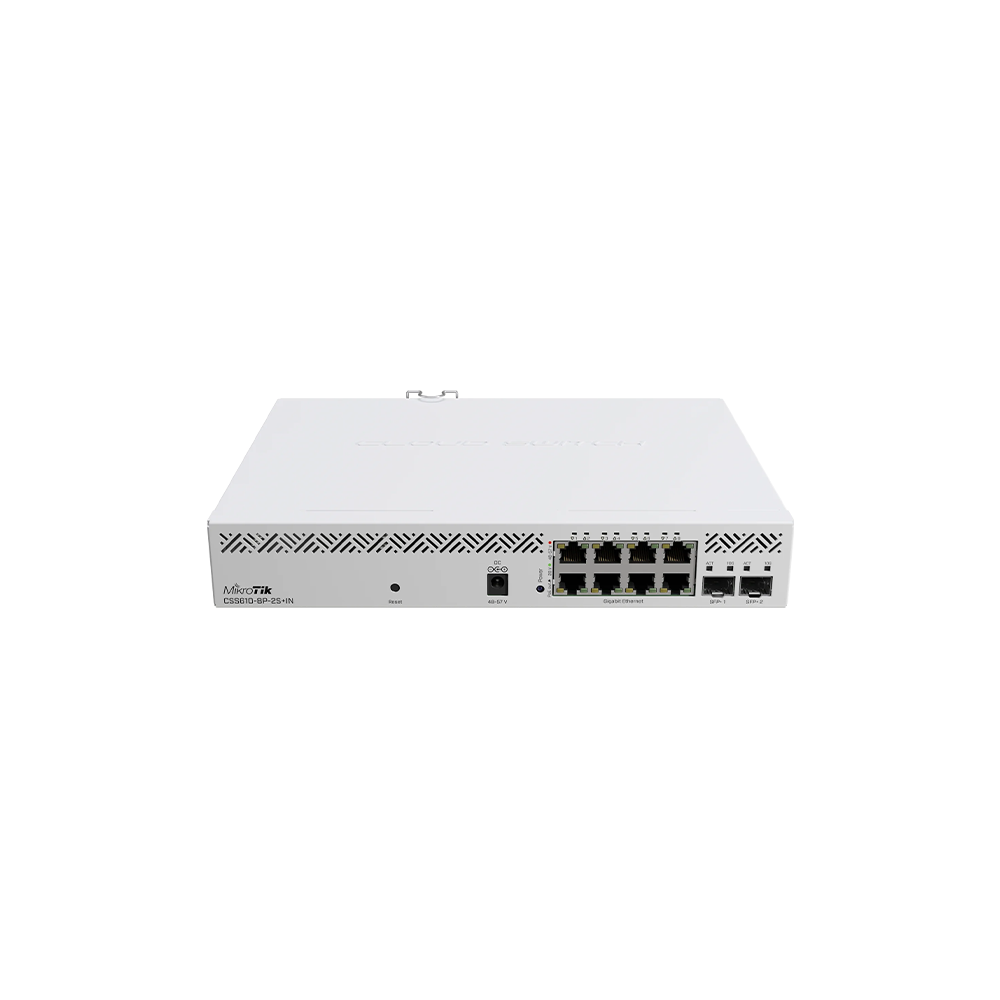

CSS610-8P-2S+IN

Your compact, affordable PoE powerhouse with 8x Gigabit PoE-out ports and 2x 10 Gigabit SFP+ ports.
CSS610-8P-2S+IN is one of the most well-rounded switches on the market. It is a perfect fit for the most diverse setups: from home networks and small offices to hotels, call centers and so on. The unique combination of size, features, and price offers unbelievable scalability potential.

Disponueshmëria : Në stok

Specifications

Details
Product code CSS610-8P-2S+IN
Switch chip model 88E6193X
Operating System SwitchOS Lite
Storage size 64 KB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of AC inputs 1
AC input range 100-240
Number of DC inputs 1 (DC jack)
DC jack input Voltage 48-57 V
Max power consumption 162 W
Max power consumption without attachments 12 W
Cooling type Passive

PoE-out

Details
PoE-out ports Ether1-Ether8
PoE out 802.3af/at
Max out per port output (input 18-30 V) 1000 mA
Max out per port output (input 30-57 V) 625 mA
Total output power 140

Ethernet

Details
10/100/1000 Ethernet ports 8
Number of 1G Ethernet ports with PoE-out 8

Fiber

Details
SFP+ ports 2

Other

Details
CPU temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20
