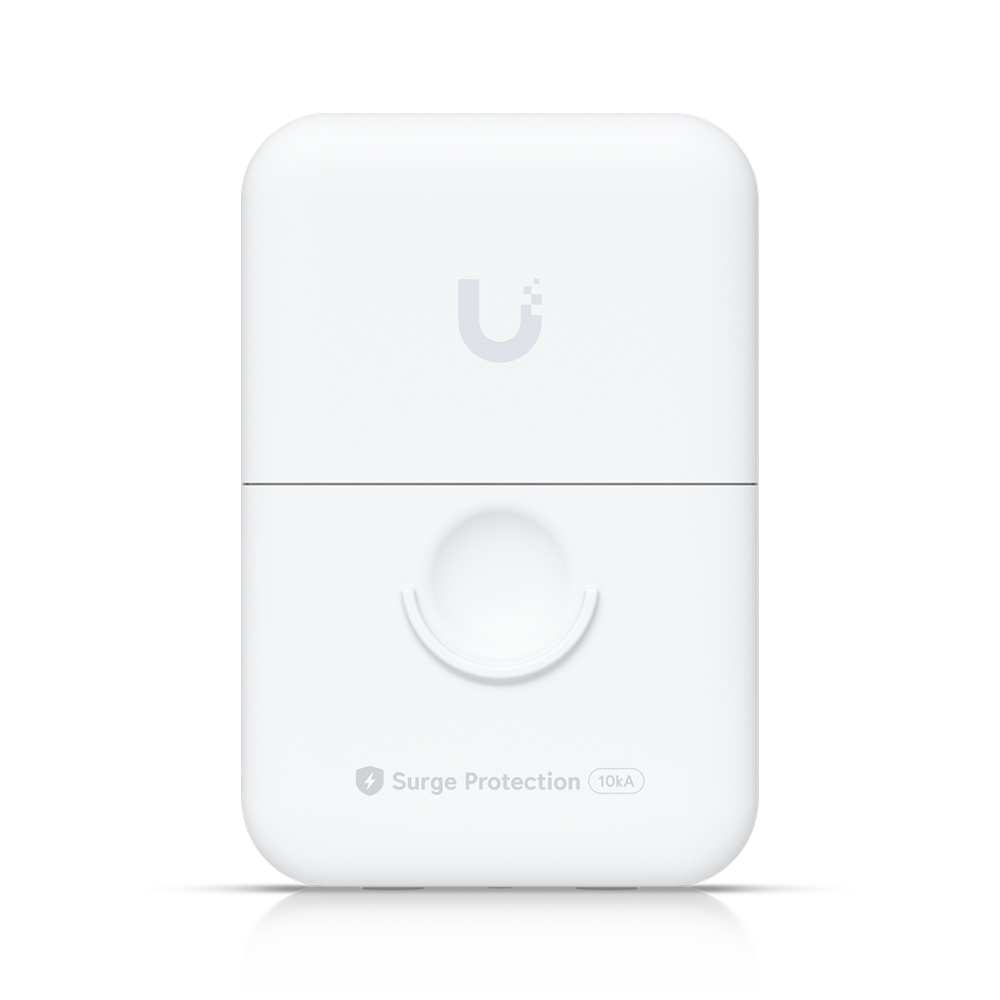

Ethernet Surge Protection Outdoor (ETH-SP-G2)
ETH-SP-G2
Përshkrim
ESD protection for outdoor high-speed networks.
Protects outdoor Ethernet devices

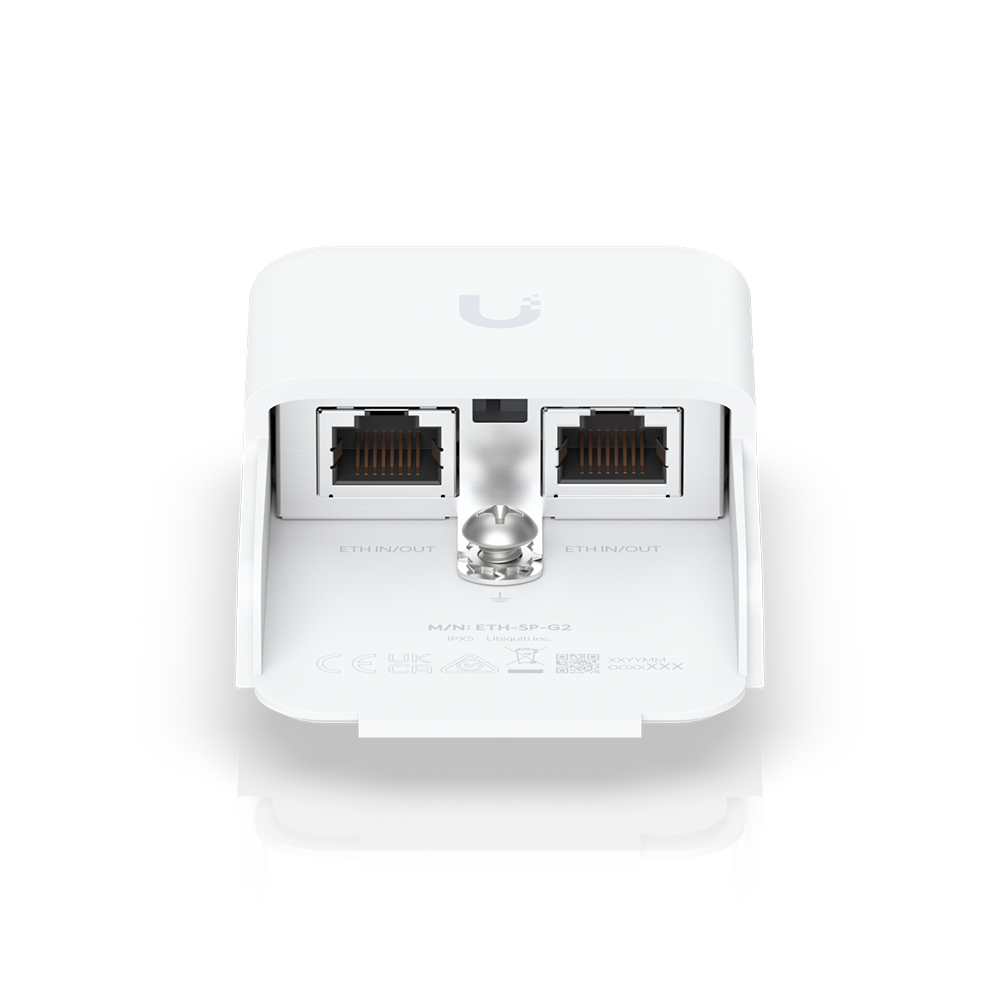

(2) Passive, surge-protected RJ45 connections
Quick and easy installation
Compatible with 2.5 GbE networks
Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 91 × 61 × 32.5 mm (3.6 × 2.4 × 1.3") |
| Weight | 80 g (2.8 oz) |
| Enclosure Material | Polycarbonate |
| Weatherproofing | IPX5 |
| Networking Interface | 2 × RJ45 female connectors |
| Data Line Protection | Up to 2.5 Gbps |
| PoE Support | Yes |
| DC Spark-Over Voltage | 90 V @ 100 V/s |
| Max. Impulse Spark-Over Voltage | 700 V @ 1 kV/µs |
| Discharge Current | ≥ 10 kA |
| Insulation Resistance | Max. 1 GΩ @ 50 V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| ESD Protection | Absorbs transient current with response to surge voltage from 100 V/s to 1 kV/µs |
| Operating Temperature | −30 to 65 °C (−22 to 149 °F) |
| Operating Humidity | 10% to 90% non-condensing |
| Shock & Vibration Standard | ETSI 300-019-1.4 |
