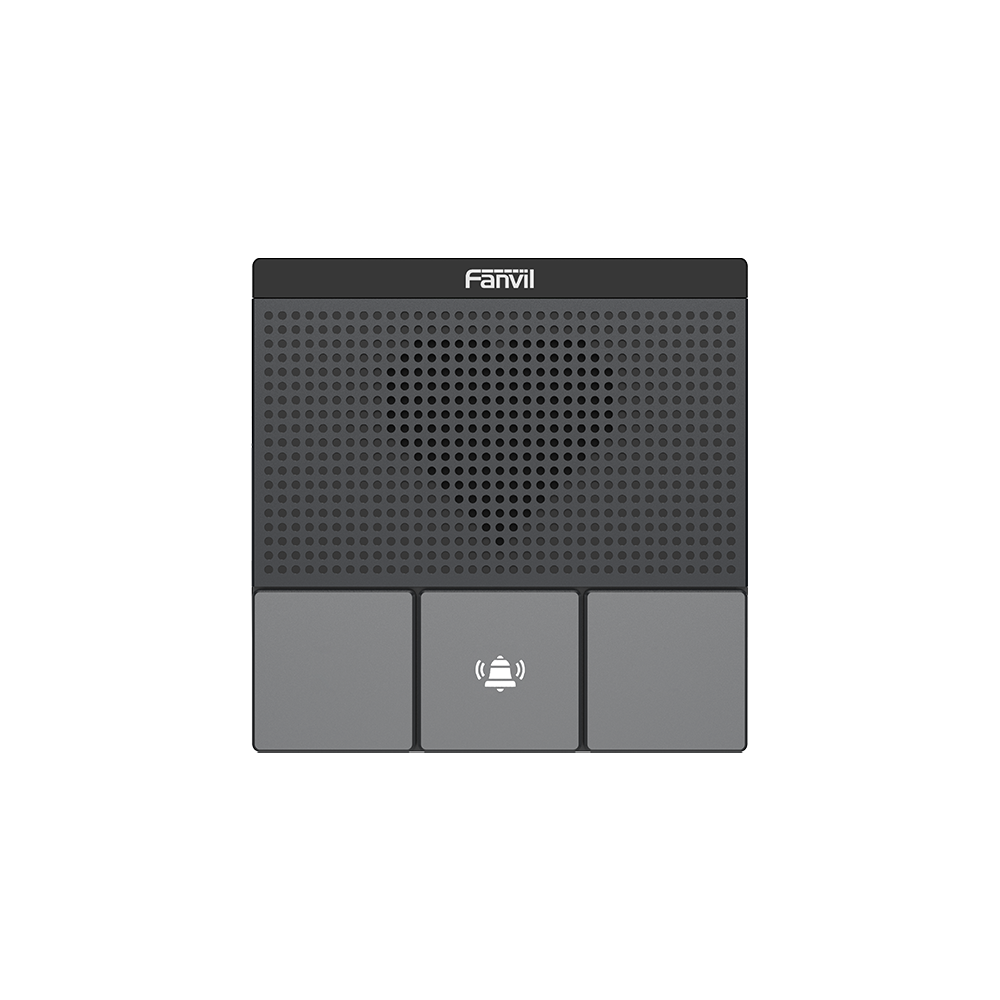

FANVIL Intercom A10 Series SIP mini Intercom
84.11 €
A10
Koha e arritjes së produktit : Sht 11, 2026 - Sht 14, 2026
Përshkrim
Fanvil A10 Series SIP Mini Intercom është një intercom kompakt IP për ambiente të brendshme, i dedikuar për komunikim zanor, siguri dhe transmetim audio. Pajisja ofron 2 SIP lines, audio HD, funksion intercom, furnizim PoE, Wi-Fi dual band (në modelet A10W/A10W-E), si dhe mundësi montimi në mur ose në kuti standarde 86. E përshtatshme për hotele, vila, ndërtesa, spitale, zyra dhe objekte banimi.
Specifications
| Description | Specification |
|---|---|
| Model | Fanvil A10 Series SIP Mini Intercom |
| Application | Indoor intercom, security communication, broadcasting |
| SIP Lines | 2 SIP Lines |
| Auto Answer | Supported |
| HD Voice | Supported |
| Intercom Function | Supported |
| DSS Keys | 3 programmable detachable DSS buttons |
| Wireless Connectivity | 2.4GHz & 5GHz Wi-Fi (A10W/A10W-E) |
| Wi-Fi Standard | 2.4G: 802.11 b/g/n; 5G: 802.11 a/n |
| Power Supply | DC 12V/1A or PoE |
| PoE Support | Supported |
| Speaker | Built-in 2W speaker |
| Audio Quality | HD audio with G.722 and Opus codec |
| Echo Cancellation | Acoustic Echo Canceller (AEC) |
| Noise Processing | VAD, CNG, BNE, PLC, Dynamic Adaptive Jitter Buffer |
| Audio Codec | G.711a/u, G.729AB, G.723.1, G.726, iLBC, G.722, Opus |
| DTMF | In-band, Out-of-Band (RFC2833 / SIP INFO) |
| Network Port | 10/100 Mbps Ethernet |
| Wi-Fi Security | WPA / WPA2-PSK / 802.1X EAP |
| IP Mode | IPv4 / IPv6 / IPv4&IPv6 |
| IP Configuration | Static IP / DHCP / PPPoE |
| VPN | L2TP / OpenVPN |
| Network Features | VLAN, LLDP, QoS |
| Protocols | SIP2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, PPPoE, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069 |
| HTTP Management | Web management portal |
| Provisioning | FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069 |
| Configuration | Export / Import |
| Firmware Management | Firmware upgrade, Syslog |
| Relay Output | 1 relay NC/NO contact |
| Relay Capacity | Max DC30V/1A, AC125V/0.5A |
| Short Circuit Input | 1 input interface |
| Housing Material | ABS |
| Protection Grade | IP54 Waterproof & Dustproof |
| Installation | Wall mounted / 86 box embedded |
| Models Installation | A10/A10W: Wall Mount; A10-E/A10W-E: 86 Box Embedded |
| Color | Gunmetal |
| Working Temperature | -10℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ 50℃ |
| Humidity | 10% ~ 90% RH |
| Device Dimensions (Wall Mount) | 87.56 × 87.56 × 30 mm |
| Device Dimensions (86 Box Embedded) | 87.56 × 87.56 × 21.5 mm |
| Power Consumption (Adapter) | A10/A10-E: 0.94W~1.98W; A10W/A10W-E: 1.42W~2.35W |
| Power Consumption (PoE) | A10/A10-E: 1.48W~2.37W; A10W/A10W-E: 1.99W~3.05W |
| Quantity per Carton | 20 PCS |
| N.W / CTN | 3.41 kg |
| G.W / CTN | 3.6 kg |
| Packing Dimension | 95 × 106 × 40 mm |
| Outer Carton Dimension | 224 × 220 × 210 mm (20 PCS) |
