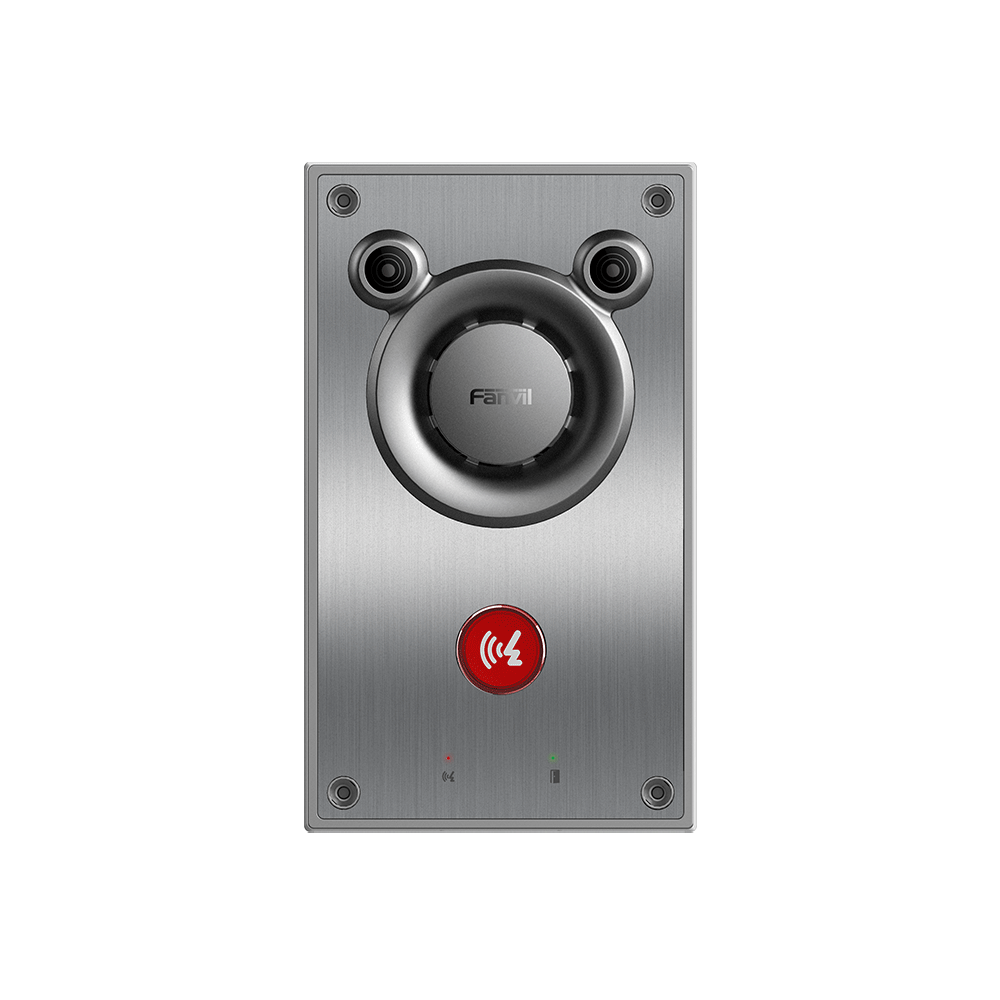

FANVIL Intercom A12 Audio Intercom
273.37 €
A12
Koha e arritjes së produktit : Sht 11, 2026 - Sht 14, 2026
Përshkrim
Fanvil A12 SIP Audio Intercom është një pajisje profesionale IP intercom për ambiente të jashtme dhe industriale, me altoparlant 10W, mbrojtje IP66/IK10, komunikim HD Voice dhe funksione të avancuara për thirrje, transmetim audio, kontroll aksesi dhe integrim me sisteme sigurie. E përshtatshme për fabrika, hyrje objektesh, parkingje, institucione, vila dhe zona me kushte të vështira atmosferike.
Specifications
| Description | Specification |
|---|---|
| Model | Fanvil A12 SIP Audio Intercom |
| SIP Lines | 2 SIP Lines |
| Speed Dial | Supported |
| IP Camera Linkage | Support video intercom linkage with IP camera |
| Audio Broadcasting | MP3, WAV broadcasting |
| Voice Functions | Voice monitoring, voice loop self-check |
| DSS Key | Programmable DSS key |
| Audio Output | Line-out audio output interface |
| USB Interface | Supported |
| Wiegand Interface | Supported |
| RS485 Interface | Supported |
| TF Card Support | Supported |
| Power Supply | DC 12V~24V / 2A or PoE+ |
| PoE Support | IEEE 802.3at PoE+ Class 4 |
| Speaker Power | 10W built-in speaker |
| Audio Quality | HD Voice communication |
| Noise Reduction | Dual microphone noise reduction technology |
| Audio Algorithms | AEC, ANR, AGC, AVC |
| Remote Pickup Range | Up to 5 meters |
| Broadcast Volume | Up to 100dB |
| Hands-Free Call Volume | Up to 90dB |
| Call Functions | Call out / Answer / Reject / Call waiting / Intercom / Multicast / Speed dial / Anonymous call |
| Audio Codec | G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K, G.722, Opus |
| DTMF | In-band, Out-of-band (RFC2833/SIP INFO) |
| Echo Cancellation | Full-duplex hands-free speakerphone with AEC |
| Network Port | 10/100 Mbps Ethernet |
| IP Mode | IPv4 / IPv6 / IPv4&IPv6 |
| IP Configuration | Static IP / DHCP / PPPoE |
| VPN | L2TP / OpenVPN |
| VLAN | Supported |
| Protocols | SIP v1/v2 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, PPPoE, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069 |
| Network Management | Auto-provisioning, Web management portal, Packet dump, Configuration export/import, Firmware upgrade, Syslog |
| HTTP API | Supported |
| Action URL / Active URI | Supported |
| Protection Level | IP66 Waterproof & Dustproof |
| Anti-Vandal Protection | IK10 |
| Housing Material | Stainless steel front panel + Aluminum alloy housing |
| Installation | Wall-mounted / Flush-mounted |
| Working Temperature | -40℃ ~ 70℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Working Humidity | 10% ~ 95% |
| DSS Key | 1 × DSS key with LED indicator |
| Relay Output | 2 × Short circuit output (built-in relay) |
| Relay Capacity | Max DC30V/2A, AC125V/0.5A |
| Short Circuit Input | 2 × Input ports |
| Alarm Output | 1 wet node output for external alarm light |
| Micro SD Slot | 1 × TF card slot |
| USB Port | 1 × USB |
| Wiegand Port | 1 × Wiegand |
| RS485 Port | 1 × RS485 |
| Tamper Alarm | Supported |
| DC Input Port | DC 12V~24V/2A |
| Device Dimensions | 205 × 120 × 54.5 mm (with wall bracket) |
| Net Weight | 1.71 kg |
| N.W / CTN | 17.1 kg |
| G.W / CTN | 17.84 kg |
| Gift Box Dimensions | 286 × 168 × 80 mm |
| Outer Carton Dimensions | 428 × 358 × 306 mm (10 sets) |
