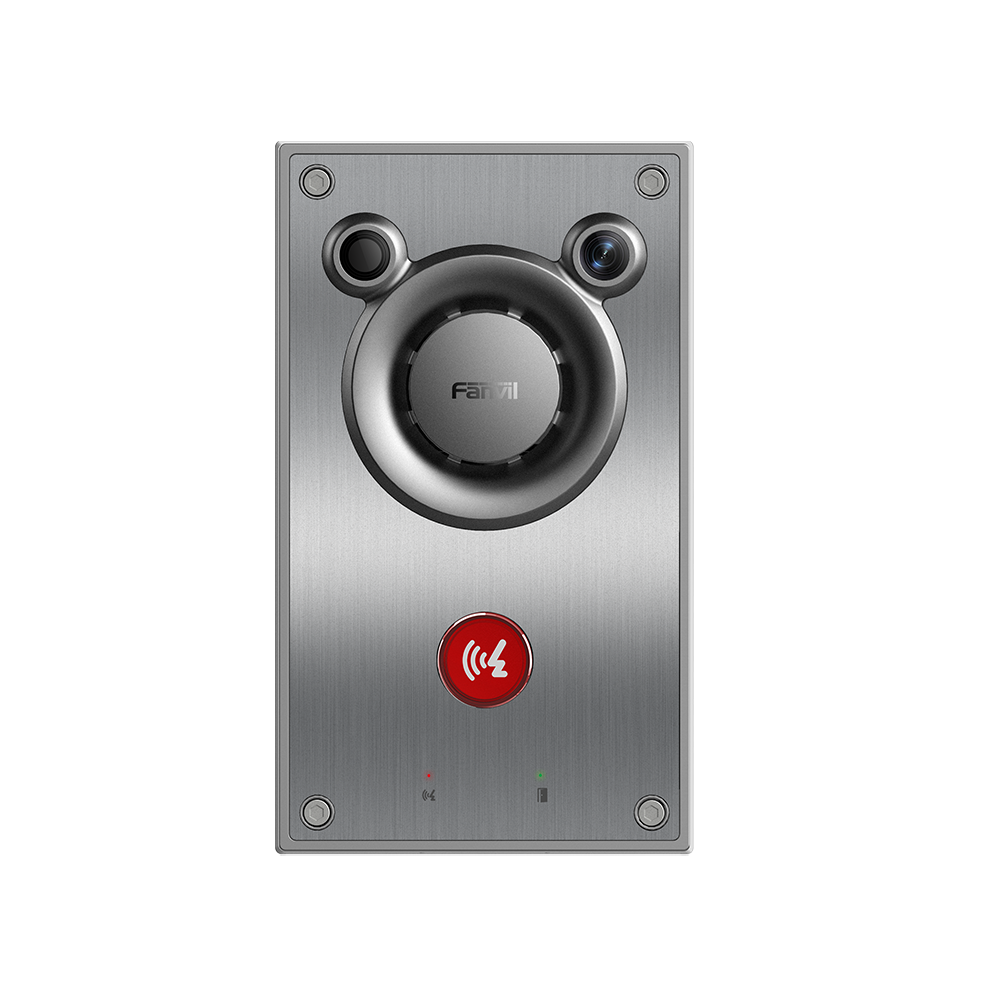

FANVIL Intercom A12V Video Intercom
483.66 €
A12V
Koha e arritjes së produktit : Sht 11, 2026 - Sht 14, 2026
Përshkrim
Fanvil A12V SIP Video Intercom është një pajisje profesionale IP për komunikim audio/video, e dizajnuar për hyrje objektesh, vila, ndërtesa, industri dhe ambiente me kërkesa të larta sigurie. Pajisja përfshin kamerë 4MP Starlight me IR, altoparlant të fuqishëm 10W, mbrojtje IP66/IK10, PoE+ dhe shumë ndërfaqe për integrim me sisteme kontrolli aksesi, alarmi dhe monitorimi.
Specifications
| Description | Specification |
|---|---|
| Model | Fanvil A12V SIP Video Intercom |
| Application | Outdoor video intercom, security entrance, villa, building, industrial environments |
| SIP Lines | 2 SIP Lines |
| Video Calling | Supported |
| IP Camera Linkage | Supported for video intercom |
| Infrared Lighting | Built-in IR illumination |
| Audio Broadcasting | MP3 broadcasting |
| DSS Key | Programmable DSS key |
| Audio Output | Line-out audio output interface |
| USB Interface | Supported |
| Wiegand Interface | Supported |
| RS-485 Interface | Supported |
| TF Card Support | Supported |
| Power Supply | DC 12V~24V / 2A or PoE+ |
| PoE Support | IEEE 802.3at PoE+ Class 4 |
| Speaker Power | 10W built-in speaker |
| Hands-Free Call Volume | Up to 90dB |
| Broadcast Volume | Up to 100dB |
| Remote Pickup Range | Up to 5 meters |
| Audio Technology | AEC, ANR, AGC, AVC noise reduction algorithms |
| Camera Type | 4MP Starlight HD Camera |
| Image Sensor | 1/2.9" Color CMOS |
| Video Codec | H.264 |
| Video Resolution | 720P / 1080P |
| Minimum Illumination | 0.05 Lux with IR support |
| Viewing Angle | Diagonal: 122° / Horizontal: 103° / Vertical: 54.8° |
| Video Features | HD video calls, infrared night vision, HDR imaging |
| Call Functions | Call out / Answer / Reject / Call waiting / Intercom / Multicast / Speed dial / Anonymous call |
| Auto Answer | Supported |
| Multicast Function | Supported |
| SIP Call Forwarding to Multicast | Supported |
| HTTP API | Supported |
| Action URL / Active URI | Supported |
| Audio Codec | G.711A/U, G.729, iLBC, G.723, G.726, G.722, Opus |
| DTMF | In-band, Out-of-band (RFC2833/SIP INFO) |
| Network Port | 10/100 Mbps Ethernet |
| IP Mode | IPv4 / IPv6 / IPv4&IPv6 |
| IP Configuration | Static IP / DHCP / PPPoE |
| VPN | L2TP / OpenVPN |
| VLAN | Supported |
| Protocols | SIP v1/v2 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, PPPoE, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069 |
| Network Management | Auto provisioning, Web management portal, Packet dump, Configuration export/import, Firmware upgrade, Syslog |
| Camera Protection | IP66 + IK10 (except lens) |
| Anti-Vandal Protection | IK10 |
| Housing Material | Stainless steel front panel + Aluminum alloy body |
| Installation | Wall-mounted / Flush-mounted |
| Working Temperature | -40℃ ~ 70℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Working Humidity | 10% ~ 95% |
| DSS Key | 1 × DSS key |
| Relay Output | 2 × Short circuit output with built-in relay |
| Relay Capacity | Max DC30V/2A, AC125V/0.5A |
| Short Circuit Input | 2 × Input ports |
| Tamper Alarm | Supported |
| SD Card Slot | 1 × SD card |
| USB Port | 1 × USB |
| Wiegand Port | 1 × Wiegand |
| RS-485 Port | 1 × RS-485 |
| DC Input | DC 12V~24V/2A |
| Device Dimensions | 205 × 120 × 54.5 mm (with wall bracket) |
| Net Weight | 1.72 kg |
| N.W / CTN | 17.2 kg |
| G.W / CTN | 17.98 kg |
| Gift Box Dimensions | 286 × 168 × 80 mm |
| Outer Carton Dimensions | 428 × 358 × 306 mm (10 sets) |
