FANVIL Intercom i16SV-02P SIP Audio/Video Intercom
262.86 €
i16SV-02P SIP
Koha e arritjes së produktit : Sht 11, 2026 - Sht 14, 2026
Përshkrim

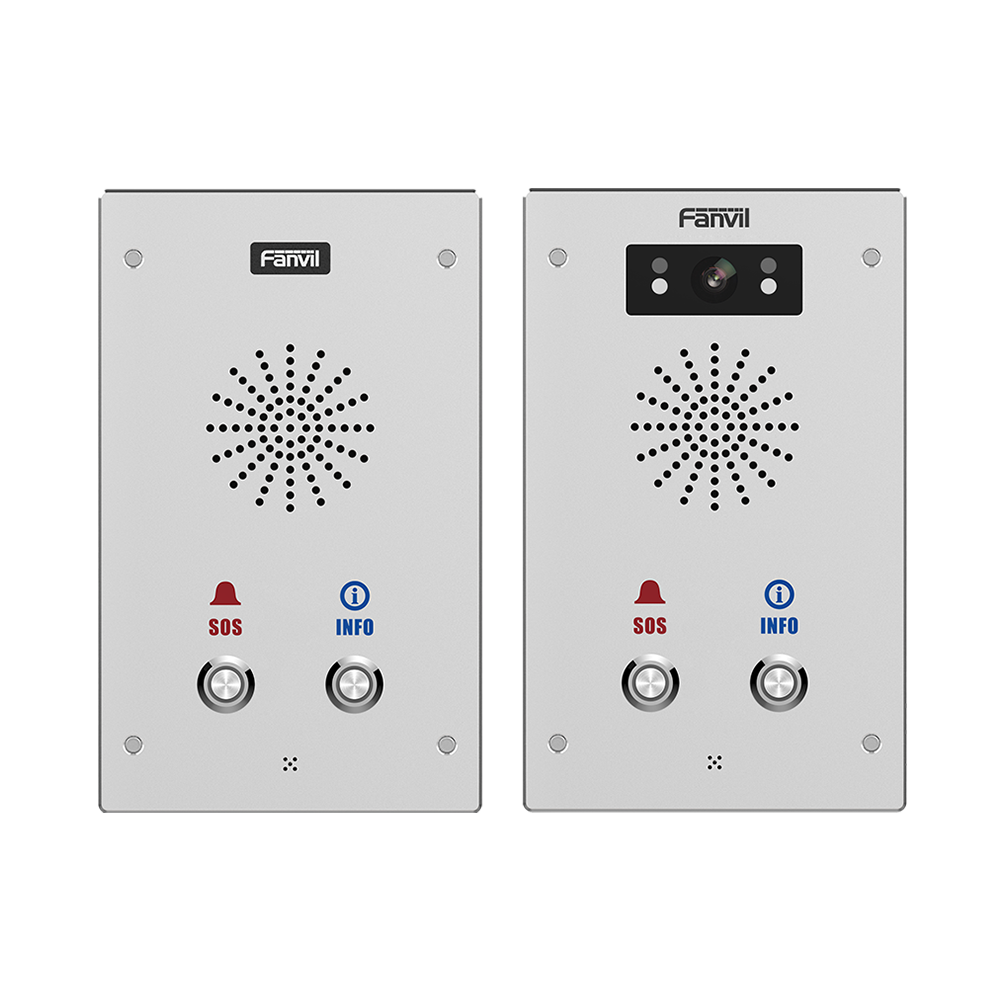

Fanvil i16S-02P / i16SV-02P SIP Intercom është një intercom IP profesional për ambiente të jashtme, i projektuar për komunikim audio/video, kontroll sigurie dhe transmetim njoftimesh. Pajisja ofron mbrojtje IP65 dhe IK10, kornizë alumini kundër goditjeve, kamerë HD me infra të kuqe (modeli i16SV-02P), PoE, regjistrim audio, lidhje me kamera IP dhe funksione broadcast.
Specifications
| Description | Specification |
|---|---|
| Model | Fanvil i16S-02P / i16SV-02P SIP Intercom |
| Applications | Outdoor Intercom, Security Communication, Audio/Video Intercom, Broadcasting |
| SIP Lines | 2 SIP Lines |
| Speed Dial | Supported |
| IP Camera Linkage | Supported for Video Intercom |
| IP Address Announcement | Oral announcement of IP address (English) |
| MP3 Broadcasting | Supported |
| Programmable DSS Keys | Supported |
| Speaker Support | Mono Active Speaker Support |
| Recording Output | Talkback Recording Output |
| Switch Signal | Input and Output Supported |
| TF Card Slot | Supported |
| Power Supply | PoE Enabled (IEEE 802.3af Class 3) / DC12V~24V |
| Auto Answering | Supported |
| Volume Control | Through Button or Web Interface |
| Network Time Synchronization | Supported |
| Time Plan Management | Supported |
| Multicast Function | Incoming Call Multicast & Dynamic Multicast |
| HTTP API | Supported |
| Action URL / Active URI | Supported |
| Call Functions | Call Out, Answer, Reject, Call Waiting, Intercom, Multicast, Speed Dial, Anonymous Call |
| Audio Codec | G.711A/U, G.729A/B, iLBC, G.723, G.726-32K |
| Wideband Audio Codec | G.722, Opus |
| Audio Processing | Full Duplex Hands-free Speakerphone with AEC |
| DTMF | In-band / Out-of-Band (RFC2833 / SIP INFO) |
| Camera (i16SV-02P Only) | Built-in HD Camera with IR Night Vision |
| Camera Sensor | 1/2.8” Color CMOS |
| Camera Resolution | 2 Megapixel |
| Video Codec | H.264 |
| Video Resolution | 720P / 1080P |
| Minimum Illumination | 0.1 Lux with Infrared Support |
| Viewing Angle | Diagonal: 126° Horizontal: 98° Vertical: 65° |
| Network Interface | 10/100 Mbps Ethernet |
| IP Mode | IPv4 / IPv6 / IPv4&IPv6 |
| IP Configuration | Static IP / DHCP / PPPoE |
| VPN | L2TP / OpenVPN |
| Network Features | VLAN, LLDP, QoS |
| Protection Grade | IP65 Waterproof & Dustproof |
| Anti-Vandal Protection | IK10 Anti-Collision |
| Tamper Alarm | Supported – Alarm when housing is removed |
| Housing Material | Aluminum Alloy Shell |
| Installation | Wall Mounted |
| Operating Temperature | -30℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Humidity | 10% ~ 95% RH |
| DSS Buttons | 2 DSS Keys with LED Indicator |
| RJ45 Port | 1× RJ45 Network Port |
| PoE Standard | IEEE 802.3af Class 3 |
| Line Out Port | 1× Audio Output for Active Speaker Max 1.2Vpp Adjustable Volume |
| Recording Output Port | 1× Audio Recording Output Impedance 15Ω |
| Short Circuit Ports | 2× Input/Output Ports with Built-in Relay |
| Relay Capacity | DC30V/2A, AC125V/0.5A |
| Active Switching Output | 12V/500mA DC |
| Tamper Switch | 1× Tamper Alarm Switch |
| TF Card Interface | 1× TF Card Slot |
| DC Input | DC12V~24V/1A |
| Protocols | SIP2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, PPPoE, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069 |
| Provisioning | FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069 |
| Management | Web Management Portal |
| Packet Capture | Web-based Packet Dump |
| Configuration | Export / Import |
| Firmware Upgrade | Supported |
| Syslog | Supported |
| Device Dimensions | 195 × 120 × 40 mm |
| Gift Box Dimensions | 260 × 165 × 62 mm |
| Outer CTN Dimensions | 348 × 328 × 280 mm (10 PCS) |
| Net Weight / Box | 9.5 kg |
| Gross Weight / Box | 10.05 kg |
