Name: FANVIL IP Phone - H601W Black Wi-Fi IP Phone
Brand: Fanvil
SKU: 970523
Price: 54.67 EUR
Availability: InStock

FANVIL IP Phone – H601W Black Wi-Fi IP Phone

54.67 €

H601W

Koha e arritjes së produktit : Sht 11, 2026 - Sht 14, 2026

Kodi i produktit : 970523 Kategori: Fanvil, IP Phones Brand: Fanvil

Description	Specification
Generic	2 SIP Lines, HD Voice
PoE Support	PoE Supported (Only H601)
Wi-Fi	Built-in Dual-band Wi-Fi 6 2.4GHz & 5GHz (Only H601W)
Wi-Fi Standard	2.4GHz: 802.11 b/g/n/ax; 5GHz: 802.11 a/n/ac/ax
Operation Mode	Handset / Hands-free
DSS Keys	Intelligent DSS Keys (Speed Dial Key)
External Power Supply	Optional (H601 sold separately)
Programmable DSS Keys	Supported
Action URL / Active URI	Supported
Web Dial	Supported
Dial Plan	Supported
SIP Hotspot	Supported
Distinctive Ring	Supported
Multicast	Supported
Built-in Wi-Fi SSID	Supported (Only H601W)
Speed Dial / Answer	Supported
Voice Message	Supported
Hot Line	Supported
Audio Sampling	Wideband ADC/DAC 16KHz Sampling
Narrowband Codec	G.711a/u, G.723.1, G.726, G.729A/B, iLBC
Wideband Codec	G.722, Opus
Echo Cancellation	Full Duplex Acoustic Echo Canceller (AEC)
Audio Processing	VAD, CNG, BNE, NR, AGC
Packet Loss Concealment (PLC)	Supported
Jitter Buffer	Dynamic Adaptive Jitter Buffer
DTMF	In-band, Out-of-Band (RFC2833 / SIP INFO)
Voice Quality Monitoring	VQM Supported
Ethernet	10/100Mbps
IP Mode	IPv4 / IPv6 / IPv4&IPv6
IP Configuration	Static IP / DHCP / PPPoE
Wi-Fi Security	WPA / WPA2-PSK / 802.1X EAP
Network Access Control	802.1X
VPN	L2TP / OpenVPN
VLAN	802.1P/Q
Network Features	LLDP, QoS
RTCP Support	RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Protocols	SIP v1 (RFC2543), SIP v2 (RFC3261) over UDP/TCP/TLS
Media Protocols	RTP / RTCP / SRTP
Other Protocols	STUN, DHCP, IPv6, PPPoE, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
Auto Provisioning	FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Management	Web Management Portal, Web Packet Dump, Configuration Export/Import, Firmware Upgrade, Syslog
Keypad	5 Keys
DSS Keys	2 DSS Keys
Function Keys	3 Function Keys (Up/Down/Hands-free)
Message Indicator	Red LED Indicator
Handset Port	RJ9 ×1
Network Port	RJ45 ×1
Handset	RJ9 Handset Included
Handset Cable	Standard RJ9 Handset Cord Included
Power Supply	DC 5V/1A or PoE
Power Consumption (PoE)	H601: 1.44W~2.7W
Power Consumption (Adapter)	H601W: 0.9W~1.7W
Working Temperature	0°C ~ +45°C
Working Humidity	10% ~ 95%
Installation	Wall Mount / Desktop
Color	Black
Quantity / Carton	15 PCS
N.W/CTN H601	7.065kg
N.W/CTN H601W	7.845kg
G.W/CTN H601	7.71kg
G.W/CTN H601W	8.49kg
Device Dimension	195 × 181 × 30mm
Gift Box Dimension H601	105 × 58 × 226mm
Gift Box Dimension H601W	105 × 58 × 266mm
Outer CTN Dimension H601	340 × 315 × 245mm (15 PCS)
Outer CTN Dimension H601W	340 × 315 × 285mm (15 PCS)

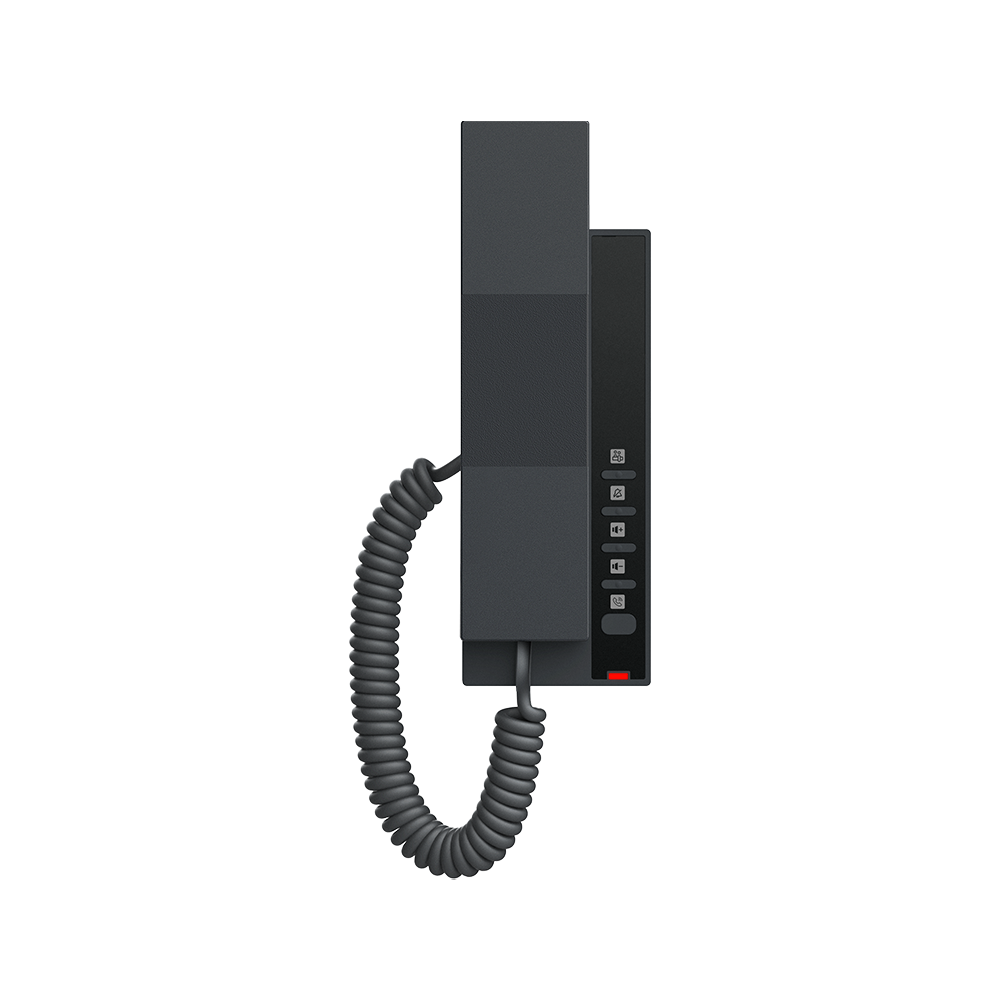

FANVIL IP Phone - H601W Black Wi-Fi IP Phone - Figura 1

Click to enlarge

Përshkrim
Specifications

Përshkrim

Telefon IP kompakt për komunikim VoIP me 2 linja SIP, audio HD, DSS inteligjente për thirrje të shpejta dhe mbështetje PoE ose Wi-Fi 6 (varësisht modelit). I përshtatshëm për zyra, ambiente biznesi dhe instalime në mur ose tavolinë, me konfigurim dhe menaxhim në distancë.

Specifications

Description	Specification
Generic	2 SIP Lines, HD Voice
PoE Support	PoE Supported (Only H601)
Wi-Fi	Built-in Dual-band Wi-Fi 6 2.4GHz & 5GHz (Only H601W)
Wi-Fi Standard	2.4GHz: 802.11 b/g/n/ax; 5GHz: 802.11 a/n/ac/ax
Operation Mode	Handset / Hands-free
DSS Keys	Intelligent DSS Keys (Speed Dial Key)
External Power Supply	Optional (H601 sold separately)
Programmable DSS Keys	Supported
Action URL / Active URI	Supported
Web Dial	Supported
Dial Plan	Supported
SIP Hotspot	Supported
Distinctive Ring	Supported
Multicast	Supported
Built-in Wi-Fi SSID	Supported (Only H601W)
Speed Dial / Answer	Supported
Voice Message	Supported
Hot Line	Supported
Audio Sampling	Wideband ADC/DAC 16KHz Sampling
Narrowband Codec	G.711a/u, G.723.1, G.726, G.729A/B, iLBC
Wideband Codec	G.722, Opus
Echo Cancellation	Full Duplex Acoustic Echo Canceller (AEC)
Audio Processing	VAD, CNG, BNE, NR, AGC
Packet Loss Concealment (PLC)	Supported
Jitter Buffer	Dynamic Adaptive Jitter Buffer
DTMF	In-band, Out-of-Band (RFC2833 / SIP INFO)
Voice Quality Monitoring	VQM Supported
Ethernet	10/100Mbps
IP Mode	IPv4 / IPv6 / IPv4&IPv6
IP Configuration	Static IP / DHCP / PPPoE
Wi-Fi Security	WPA / WPA2-PSK / 802.1X EAP
Network Access Control	802.1X
VPN	L2TP / OpenVPN
VLAN	802.1P/Q
Network Features	LLDP, QoS
RTCP Support	RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Protocols	SIP v1 (RFC2543), SIP v2 (RFC3261) over UDP/TCP/TLS
Media Protocols	RTP / RTCP / SRTP
Other Protocols	STUN, DHCP, IPv6, PPPoE, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
Auto Provisioning	FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Management	Web Management Portal, Web Packet Dump, Configuration Export/Import, Firmware Upgrade, Syslog
Keypad	5 Keys
DSS Keys	2 DSS Keys
Function Keys	3 Function Keys (Up/Down/Hands-free)
Message Indicator	Red LED Indicator
Handset Port	RJ9 ×1
Network Port	RJ45 ×1
Handset	RJ9 Handset Included
Handset Cable	Standard RJ9 Handset Cord Included
Power Supply	DC 5V/1A or PoE
Power Consumption (PoE)	H601: 1.44W~2.7W
Power Consumption (Adapter)	H601W: 0.9W~1.7W
Working Temperature	0°C ~ +45°C
Working Humidity	10% ~ 95%
Installation	Wall Mount / Desktop
Color	Black
Quantity / Carton	15 PCS
N.W/CTN H601	7.065kg
N.W/CTN H601W	7.845kg
G.W/CTN H601	7.71kg
G.W/CTN H601W	8.49kg
Device Dimension	195 × 181 × 30mm
Gift Box Dimension H601	105 × 58 × 226mm
Gift Box Dimension H601W	105 × 58 × 266mm
Outer CTN Dimension H601	340 × 315 × 245mm (15 PCS)
Outer CTN Dimension H601W	340 × 315 × 285mm (15 PCS)
