Name: FANVIL IP Phone V60W Basic Level IP Phone
Brand: Fanvil
SKU: 970516
Price: 60.98 EUR
Availability: InStock

FANVIL IP Phone V60W Basic Level IP Phone

60.98 €

V60W

Koha e arritjes së produktit : Sht 10, 2026 - Sht 11, 2026

Kodi i produktit : 970516 Kategori: Fanvil, IP Phones Brand: Fanvil

Description	Specification
Generic	2.4-inch (320×240) Color Screen, 4 SIP Lines, HD Voice, PoE Enabled
DSS Keys	Intelligent DSS Keys
Operation Mode	Handset / Hands-free / Headset
Installation	Desktop Stand / Wall-mounted (Optional)
Power Supply	DC5V/1A or PoE
External Power Supply	Optional
Handset Feature	Hall-effect Sensor Switch
Local Phonebook	1000 Entries
Remote Phonebook	XML / LDAP
Call Logs	Incoming / Outgoing / Missed, 1000 Entries
Blocked List / Allowed List	Supported
Screen Saver	Supported
Voice Message Waiting Indication (VMWI)	Supported
Programmable Keys	DSS / Soft Keys
Network Time Synchronization	Supported
Bluetooth	Built-in Bluetooth 5.4, Supports Bluetooth Headset and Mobile Pairing
Wi-Fi	Built-in Wi-Fi 6
Wi-Fi Standard	2.4GHz: 802.11 b/g/n/ax; 5GHz: 802.11 a/n/ac/ax
Wireless Headset Support	Poly Wireless Headset (APD-80 EHS Cable), Jabra Wireless Headset (Fanvil EHS20 EHS Cable)
Recording Support	Through Server
Action URL / Active URI	Supported
XML Browser	Supported
Background Image	Customizable
Boot Logo	Customizable
uaCSTA	Supported
Incoming Ringtone	Customizable
Time Plan	Timed Reboot / Timed Forward / Timed Upgrade / Timed Configuration
Hidden DTMF	Supported
Headset Ringing	Supported
DSS Icon	Customizable
DSS LED Lights	Customizable
BLF	Customizable
UI Display	Customizable
Call Functions	Call Out / Answer / Reject
Mute Function	Microphone Mute / Unmute
Call Control	Hold / Resume / Call Waiting
Intercom	Supported
Caller ID Display	Supported
Speed Dial	Supported
Anonymous Call	Hide Caller ID / Ban Anonymous Call
Call Forward	Always / Busy / No Answer
Call Transfer	Attended / Unattended
Call Parking / Pickup	Depending on Server
Redial / Predial	Supported
Callback	Supported
Do Not Disturb (DND)	Supported / Timed DND
Auto Answering	Supported
SIP SMS	Supported
Voice Message	Through Server
Audio Conference	6-way Audio Conference
Hot Line	Supported
Hot Desking	Supported
Direct IP Call	Without SIP Proxy
Search Function	Fuzzy Search Call
Dial Plan	Action Plan / Digit Collection Rules
Call Completion	Auto Redial Supported
SIP Server Support	Primary and Backup SIP Servers
Default Extension Line	Supported
Multicast Audio	Supported
HD Audio	HD Handset and HD Speaker
HAC Handset	Supported
ADC/DAC Sampling	Wideband 16KHz
Narrowband Codec	G.711a/u, G.723.1, G.726, G.729, G.729A, G.729B, G.729AB, iLBC
Wideband Codec	G.722, Opus
Echo Cancellation	Full Duplex Acoustic Echo Canceller (AEC)
Audio Processing	VAD, CNG, BNE, NR, AGC
Packet Loss Concealment (PLC)	Supported
Jitter Buffer	Dynamic Adaptive Jitter Buffer
DTMF	In-band, Out-of-Band (RFC2833 / SIP INFO)
Voice Quality Monitoring	VQM Supported
Ethernet	10/100Mbps
PC Bypass	Dual Bridged Port
IP Mode	IPv4 / IPv6 / IPv4&IPv6
IP Configuration	Static IP / DHCP / PPPoE
Network Access Control	802.1X
VPN	L2TP / OpenVPN
Network Features	VLAN, LLDP, QoS
RTCP Support	RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
DNS Support	DNS-SRV (RFC3263)
Server Support	Redundant Servers
HTTPS Authentication	Supported
Wi-Fi Security	WPA / WPA2-PSK / 802.1X EAP
Protocols	SIP v1 (RFC2543), SIP v2 (RFC3261), UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1x, 802.1p/Q, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
Encryption	AES128 & AES256
Auto Provisioning	FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Management	Screenshot, Web Management Portal, Packet Dump, Configuration Export/Import, Phonebook Import/Export, Firmware Upgrade, Syslog, Network Firewall
LCD Display	2.4-inch (320×240) Color Screen
Keypad	27 Keys
DSS Keys	3 DSS Keys with LED Indicator
Function Keys	Mute, Headset, Redial
Soft Keys	4
Navigation Keys	2
Standard Digit Keys	12
Volume Keys	2 (Lower / Increase)
Hands-free Key	1
Handset Port	RJ9 ×1
Headset Port	RJ9 ×1
Network Port	RJ45 ×2 (Network + PC Bridged)
Security Slot	1
Power Adapter Input	100-240VAC ~ 50/60Hz
Power Adapter Output	5V/1A
Power Consumption (Adapter)	1.2~2.4W
Power Consumption (PoE)	1.7~2.8W
Working Temperature	0°C ~ +45°C
Working Humidity	10% ~ 95%
Installation	Desktop Stand / Wall-mounted (Optional)
Color	Dark Grey
Quantity / Carton	10 PCS
N.W/CTN	8.3kg
G.W/CTN	8.755kg
Device Dimension (Desktop 40°)	173.00 × 184.96 × 169.90mm
Device Dimension (Desktop 45°)	173.00 × 173.93 × 177.96mm
Device Dimension (Wall Mount)	173.00 × 91.34 × 215.55mm
Gift Box Dimension	250 × 220 × 55mm
Outer CTN Dimension	460 × 300 × 270mm (10 PCS)

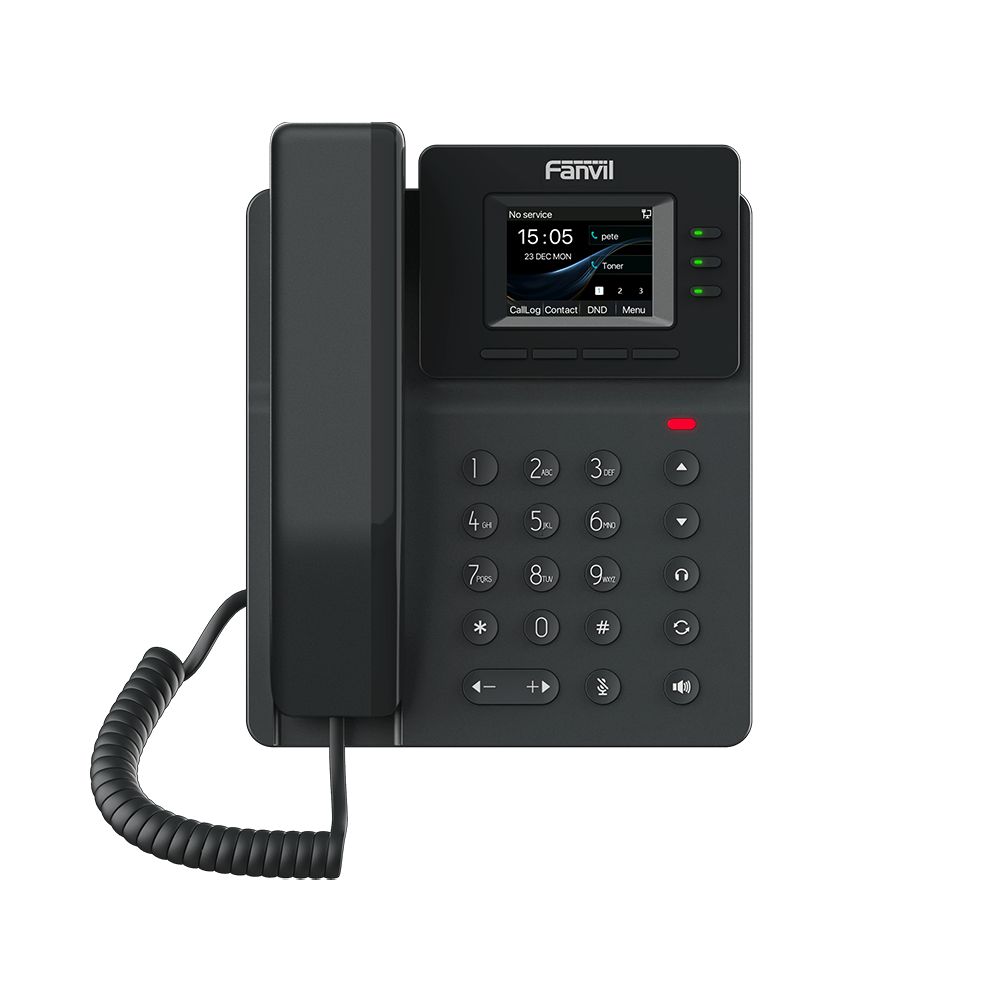

FANVIL IP Phone V60W Basic Level IP Phone - Figura 1

Click to enlarge

Përshkrim
Specifications

Përshkrim

Telefon IP profesional me 4 linja SIP, ekran me ngjyra 2.4″, DSS inteligjente, Bluetooth 5.4 dhe Wi-Fi 6 të integruar. Ofron komunikim audio HD, PoE, funksione të avancuara VoIP, konferencë audio, menaxhim të plotë të thirrjeve dhe integrim me sisteme profesionale komunikimi.

Specifications

Description	Specification
Generic	2.4-inch (320×240) Color Screen, 4 SIP Lines, HD Voice, PoE Enabled
DSS Keys	Intelligent DSS Keys
Operation Mode	Handset / Hands-free / Headset
Installation	Desktop Stand / Wall-mounted (Optional)
Power Supply	DC5V/1A or PoE
External Power Supply	Optional
Handset Feature	Hall-effect Sensor Switch
Local Phonebook	1000 Entries
Remote Phonebook	XML / LDAP
Call Logs	Incoming / Outgoing / Missed, 1000 Entries
Blocked List / Allowed List	Supported
Screen Saver	Supported
Voice Message Waiting Indication (VMWI)	Supported
Programmable Keys	DSS / Soft Keys
Network Time Synchronization	Supported
Bluetooth	Built-in Bluetooth 5.4, Supports Bluetooth Headset and Mobile Pairing
Wi-Fi	Built-in Wi-Fi 6
Wi-Fi Standard	2.4GHz: 802.11 b/g/n/ax; 5GHz: 802.11 a/n/ac/ax
Wireless Headset Support	Poly Wireless Headset (APD-80 EHS Cable), Jabra Wireless Headset (Fanvil EHS20 EHS Cable)
Recording Support	Through Server
Action URL / Active URI	Supported
XML Browser	Supported
Background Image	Customizable
Boot Logo	Customizable
uaCSTA	Supported
Incoming Ringtone	Customizable
Time Plan	Timed Reboot / Timed Forward / Timed Upgrade / Timed Configuration
Hidden DTMF	Supported
Headset Ringing	Supported
DSS Icon	Customizable
DSS LED Lights	Customizable
BLF	Customizable
UI Display	Customizable
Call Functions	Call Out / Answer / Reject
Mute Function	Microphone Mute / Unmute
Call Control	Hold / Resume / Call Waiting
Intercom	Supported
Caller ID Display	Supported
Speed Dial	Supported
Anonymous Call	Hide Caller ID / Ban Anonymous Call
Call Forward	Always / Busy / No Answer
Call Transfer	Attended / Unattended
Call Parking / Pickup	Depending on Server
Redial / Predial	Supported
Callback	Supported
Do Not Disturb (DND)	Supported / Timed DND
Auto Answering	Supported
SIP SMS	Supported
Voice Message	Through Server
Audio Conference	6-way Audio Conference
Hot Line	Supported
Hot Desking	Supported
Direct IP Call	Without SIP Proxy
Search Function	Fuzzy Search Call
Dial Plan	Action Plan / Digit Collection Rules
Call Completion	Auto Redial Supported
SIP Server Support	Primary and Backup SIP Servers
Default Extension Line	Supported
Multicast Audio	Supported
HD Audio	HD Handset and HD Speaker
HAC Handset	Supported
ADC/DAC Sampling	Wideband 16KHz
Narrowband Codec	G.711a/u, G.723.1, G.726, G.729, G.729A, G.729B, G.729AB, iLBC
Wideband Codec	G.722, Opus
Echo Cancellation	Full Duplex Acoustic Echo Canceller (AEC)
Audio Processing	VAD, CNG, BNE, NR, AGC
Packet Loss Concealment (PLC)	Supported
Jitter Buffer	Dynamic Adaptive Jitter Buffer
DTMF	In-band, Out-of-Band (RFC2833 / SIP INFO)
Voice Quality Monitoring	VQM Supported
Ethernet	10/100Mbps
PC Bypass	Dual Bridged Port
IP Mode	IPv4 / IPv6 / IPv4&IPv6
IP Configuration	Static IP / DHCP / PPPoE
Network Access Control	802.1X
VPN	L2TP / OpenVPN
Network Features	VLAN, LLDP, QoS
RTCP Support	RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
DNS Support	DNS-SRV (RFC3263)
Server Support	Redundant Servers
HTTPS Authentication	Supported
Wi-Fi Security	WPA / WPA2-PSK / 802.1X EAP
Protocols	SIP v1 (RFC2543), SIP v2 (RFC3261), UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1x, 802.1p/Q, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
Encryption	AES128 & AES256
Auto Provisioning	FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Management	Screenshot, Web Management Portal, Packet Dump, Configuration Export/Import, Phonebook Import/Export, Firmware Upgrade, Syslog, Network Firewall
LCD Display	2.4-inch (320×240) Color Screen
Keypad	27 Keys
DSS Keys	3 DSS Keys with LED Indicator
Function Keys	Mute, Headset, Redial
Soft Keys	4
Navigation Keys	2
Standard Digit Keys	12
Volume Keys	2 (Lower / Increase)
Hands-free Key	1
Handset Port	RJ9 ×1
Headset Port	RJ9 ×1
Network Port	RJ45 ×2 (Network + PC Bridged)
Security Slot	1
Power Adapter Input	100-240VAC ~ 50/60Hz
Power Adapter Output	5V/1A
Power Consumption (Adapter)	1.2~2.4W
Power Consumption (PoE)	1.7~2.8W
Working Temperature	0°C ~ +45°C
Working Humidity	10% ~ 95%
Installation	Desktop Stand / Wall-mounted (Optional)
Color	Dark Grey
Quantity / Carton	10 PCS
N.W/CTN	8.3kg
G.W/CTN	8.755kg
Device Dimension (Desktop 40°)	173.00 × 184.96 × 169.90mm
Device Dimension (Desktop 45°)	173.00 × 173.93 × 177.96mm
Device Dimension (Wall Mount)	173.00 × 91.34 × 215.55mm
Gift Box Dimension	250 × 220 × 55mm
Outer CTN Dimension	460 × 300 × 270mm (10 PCS)
