FANVIL IP Phone V62G Prime Business Phone

V62G

Kodi i produktit : 970517 Kategori: Fanvil Brand: Fanvil

Description	Specification
Generic	12 SIP Lines, HD Voice, Dual Gigabit Ports, PoE Enabled
Display	2.8-inch (320×240) Color Screen
Operation Mode	Handset / Hands-free / Headset
Installation	Desktop Stand / Wall Mountable (Optional)
Power Supply	DC5V/1A or PoE
External Power Supply	Optional
Handset Feature	Hall-effect Sensor Switch
Local Phonebook	1000 Entries
Remote Phonebook	XML / LDAP
Call Logs	Incoming / Outgoing / Missed, 1000 Entries
Blocked List / Allowed List	Supported
Screen Saver	Supported
Voice Message Waiting Indication (VMWI)	Supported
Programmable Keys	DSS / Soft Keys
Network Time Synchronization	Supported
Wireless Headset Support	Poly Wireless Headset (APD-80 EHS Cable), Jabra Wireless Headset (Fanvil EHS20 EHS Cable)
Recording Support	Through Server
Action URL / Active URI	Supported
XML Browser	Supported
Background Customization	Supported
Boot Logo Customization	Supported
uaCSTA	Supported
Incoming Ringtone	Customizable
Time Plan	Timed Reboot / Forward / Upgrade / Configuration
Hidden DTMF	Supported
Headset Ringing	Supported
DSS Icon	Customizable
DSS LED Light	Customizable
BLF	Customizable
UI Display	Customizable
Call Functions	Call Out, Answer, Reject, Mute/Unmute, Hold/Resume, Call Waiting
Intercom	Supported
Caller ID Display	Supported
Speed Dial	Supported
Anonymous Call	Hide Caller ID / Ban Anonymous Call
Call Forward	Always / Busy / No Answer
Call Transfer	Attended / Unattended
Call Parking / Pickup	Depending on Server
Redial / Predial / Callback	Supported
Do Not Disturb (DND)	Supported / Timed DND
Auto Answering	Supported
SIP SMS	Supported
Voice Message	Through Server
Audio Conference	6-way Audio Conference
Hot Line	Supported
Hot Desking	Supported
Direct IP Call	Without SIP Proxy
Search Function	Fuzzy Search Call
Dial Plan	Supported
Auto Redial	Call Completion / Auto Redial
SIP Servers	Primary and Backup SIP Servers
Multicast Audio	Supported
HD Audio	HD Handset and HD Speaker
ADC/DAC Sampling	Wideband 16KHz
Narrowband Codec	G.711a/u, G.723.1, G.726, G.729, G.729A, G.729B, G.729AB, iLBC
Wideband Codec	G.722, Opus
Echo Cancellation	Full Duplex Acoustic Echo Canceller (AEC)
Audio Processing	VAD, CNG, BNE, NR, AGC
Packet Loss Concealment (PLC)	Supported
Jitter Buffer	Dynamic Adaptive Jitter Buffer
DTMF	In-band, Out-of-Band (RFC2833 / SIP INFO)
Voice Quality Monitoring	VQM Supported
Ethernet	10/100/1000Mbps Dual Gigabit Ethernet
PC Bypass	Dual Bridged Port
IP Mode	IPv4 / IPv6 / IPv4&IPv6
IP Configuration	Static IP / DHCP / PPPoE
Network Access Control	802.1X
VPN	L2TP / OpenVPN
Network Features	VLAN, LLDP, QoS
RTCP Support	RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
DNS Support	DNS-SRV (RFC3263)
Server Support	Redundant Servers
HTTPS Authentication	Supported
Protocols	SIP v1 (RFC2543), SIP v2 (RFC3261), UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1x, 802.1p/Q, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
Encryption	AES128 & AES256
Auto Provisioning	FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Management	Screenshot, Web Management Portal, Packet Dump, Configuration Export/Import, Phonebook Import/Export, Firmware Upgrade, Syslog, Network Firewall, Online Upgrade
LCD Display	2.8-inch Color Screen, 320×240 Resolution
Keypad	39 Keys
Soft Keys	4
DSS Keys	7 DSS Keys + 1 Page Key with LED
Function Keys	Contact, MWI, Mute, Headset, Redial
Navigation Keys	4
OK Key	1
Standard Digit Keys	12
Volume Keys	2 (Up/Down)
Hands-free Key	1
RJ9 Ports	2 (Handset / Headset)
RJ45 Ports	2 (Network / PC Bridged)
Security Slot	1
Power Adapter Input	100-240VAC ~ 50/60Hz
Power Adapter Output	5V/1A
Power Consumption (Adapter)	1.33~3.00W
Power Consumption (PoE)	1.90~4.60W
Working Temperature	0°C ~ +45°C
Working Humidity	10% ~ 95%
Installation	Desktop Stand / Wall Mountable
Color	Dark Grey / White
Quantity / Carton	10 PCS
N.W/CTN	9.65kg
G.W/CTN	10.36kg
Device Dimension (Desktop 40°)	191.80 × 164.50 × 174.20mm
Device Dimension (Desktop 45°)	191.80 × 154.50 × 181.90mm
Device Dimension (Wall Mount)	191.80 × 91.60 × 215.6mm
Gift Box Dimension	295 × 222 × 56mm
Outer CTN Dimension	464 × 305 × 315mm (10 PCS)

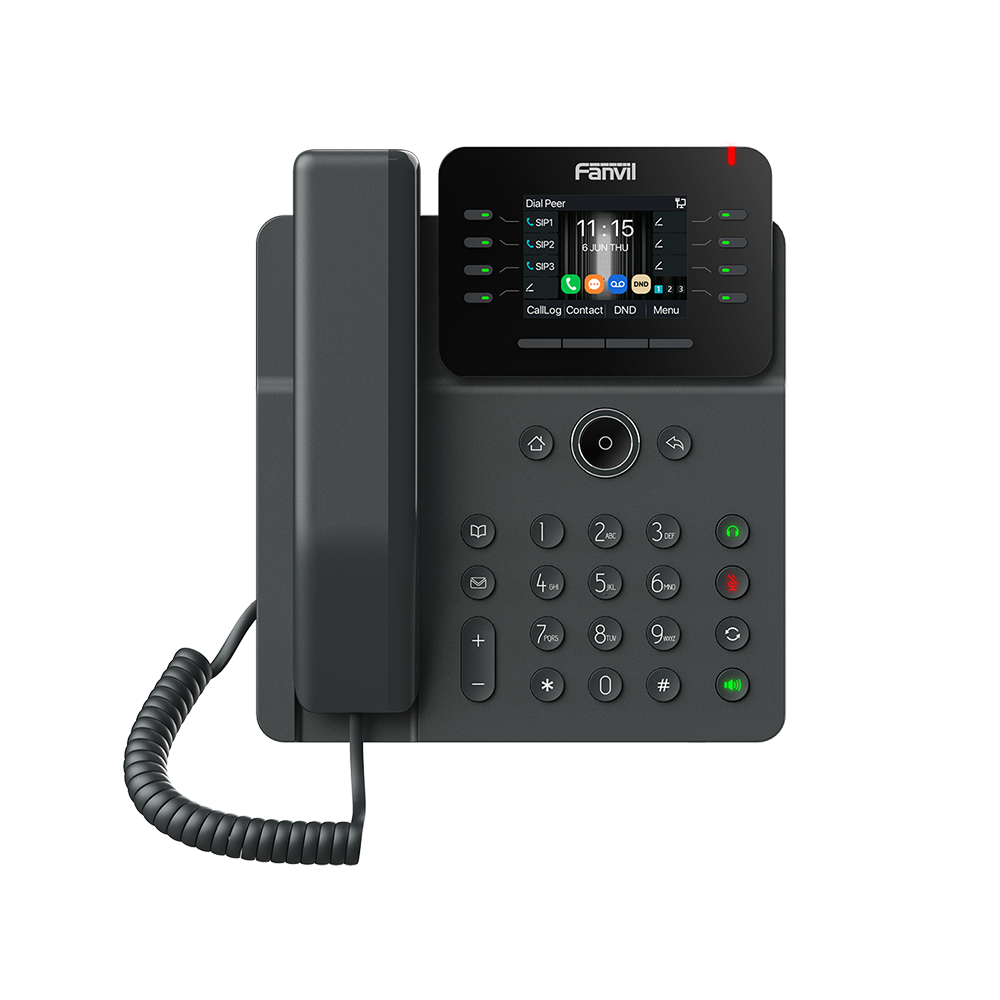

FANVIL IP Phone V62G Prime Business Phone - Figura 1

Click to enlarge

Përshkrim
Specifications

Përshkrim

Telefon IP profesional për komunikim biznesi me 12 linja SIP, porte Dual Gigabit, PoE, ekran me ngjyra 2.8″ dhe audio HD. Pajisja ofron funksione të avancuara VoIP, konferencë audio, Wi-Fi/kufje wireless, menaxhim të plotë të thirrjeve dhe integrim me sisteme profesionale komunikimi.

Specifications

Description	Specification
Generic	12 SIP Lines, HD Voice, Dual Gigabit Ports, PoE Enabled
Display	2.8-inch (320×240) Color Screen
Operation Mode	Handset / Hands-free / Headset
Installation	Desktop Stand / Wall Mountable (Optional)
Power Supply	DC5V/1A or PoE
External Power Supply	Optional
Handset Feature	Hall-effect Sensor Switch
Local Phonebook	1000 Entries
Remote Phonebook	XML / LDAP
Call Logs	Incoming / Outgoing / Missed, 1000 Entries
Blocked List / Allowed List	Supported
Screen Saver	Supported
Voice Message Waiting Indication (VMWI)	Supported
Programmable Keys	DSS / Soft Keys
Network Time Synchronization	Supported
Wireless Headset Support	Poly Wireless Headset (APD-80 EHS Cable), Jabra Wireless Headset (Fanvil EHS20 EHS Cable)
Recording Support	Through Server
Action URL / Active URI	Supported
XML Browser	Supported
Background Customization	Supported
Boot Logo Customization	Supported
uaCSTA	Supported
Incoming Ringtone	Customizable
Time Plan	Timed Reboot / Forward / Upgrade / Configuration
Hidden DTMF	Supported
Headset Ringing	Supported
DSS Icon	Customizable
DSS LED Light	Customizable
BLF	Customizable
UI Display	Customizable
Call Functions	Call Out, Answer, Reject, Mute/Unmute, Hold/Resume, Call Waiting
Intercom	Supported
Caller ID Display	Supported
Speed Dial	Supported
Anonymous Call	Hide Caller ID / Ban Anonymous Call
Call Forward	Always / Busy / No Answer
Call Transfer	Attended / Unattended
Call Parking / Pickup	Depending on Server
Redial / Predial / Callback	Supported
Do Not Disturb (DND)	Supported / Timed DND
Auto Answering	Supported
SIP SMS	Supported
Voice Message	Through Server
Audio Conference	6-way Audio Conference
Hot Line	Supported
Hot Desking	Supported
Direct IP Call	Without SIP Proxy
Search Function	Fuzzy Search Call
Dial Plan	Supported
Auto Redial	Call Completion / Auto Redial
SIP Servers	Primary and Backup SIP Servers
Multicast Audio	Supported
HD Audio	HD Handset and HD Speaker
ADC/DAC Sampling	Wideband 16KHz
Narrowband Codec	G.711a/u, G.723.1, G.726, G.729, G.729A, G.729B, G.729AB, iLBC
Wideband Codec	G.722, Opus
Echo Cancellation	Full Duplex Acoustic Echo Canceller (AEC)
Audio Processing	VAD, CNG, BNE, NR, AGC
Packet Loss Concealment (PLC)	Supported
Jitter Buffer	Dynamic Adaptive Jitter Buffer
DTMF	In-band, Out-of-Band (RFC2833 / SIP INFO)
Voice Quality Monitoring	VQM Supported
Ethernet	10/100/1000Mbps Dual Gigabit Ethernet
PC Bypass	Dual Bridged Port
IP Mode	IPv4 / IPv6 / IPv4&IPv6
IP Configuration	Static IP / DHCP / PPPoE
Network Access Control	802.1X
VPN	L2TP / OpenVPN
Network Features	VLAN, LLDP, QoS
RTCP Support	RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
DNS Support	DNS-SRV (RFC3263)
Server Support	Redundant Servers
HTTPS Authentication	Supported
Protocols	SIP v1 (RFC2543), SIP v2 (RFC3261), UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1x, 802.1p/Q, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
Encryption	AES128 & AES256
Auto Provisioning	FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Management	Screenshot, Web Management Portal, Packet Dump, Configuration Export/Import, Phonebook Import/Export, Firmware Upgrade, Syslog, Network Firewall, Online Upgrade
LCD Display	2.8-inch Color Screen, 320×240 Resolution
Keypad	39 Keys
Soft Keys	4
DSS Keys	7 DSS Keys + 1 Page Key with LED
Function Keys	Contact, MWI, Mute, Headset, Redial
Navigation Keys	4
OK Key	1
Standard Digit Keys	12
Volume Keys	2 (Up/Down)
Hands-free Key	1
RJ9 Ports	2 (Handset / Headset)
RJ45 Ports	2 (Network / PC Bridged)
Security Slot	1
Power Adapter Input	100-240VAC ~ 50/60Hz
Power Adapter Output	5V/1A
Power Consumption (Adapter)	1.33~3.00W
Power Consumption (PoE)	1.90~4.60W
Working Temperature	0°C ~ +45°C
Working Humidity	10% ~ 95%
Installation	Desktop Stand / Wall Mountable
Color	Dark Grey / White
Quantity / Carton	10 PCS
N.W/CTN	9.65kg
G.W/CTN	10.36kg
Device Dimension (Desktop 40°)	191.80 × 164.50 × 174.20mm
Device Dimension (Desktop 45°)	191.80 × 154.50 × 181.90mm
Device Dimension (Wall Mount)	191.80 × 91.60 × 215.6mm
Gift Box Dimension	295 × 222 × 56mm
Outer CTN Dimension	464 × 305 × 315mm (10 PCS)
