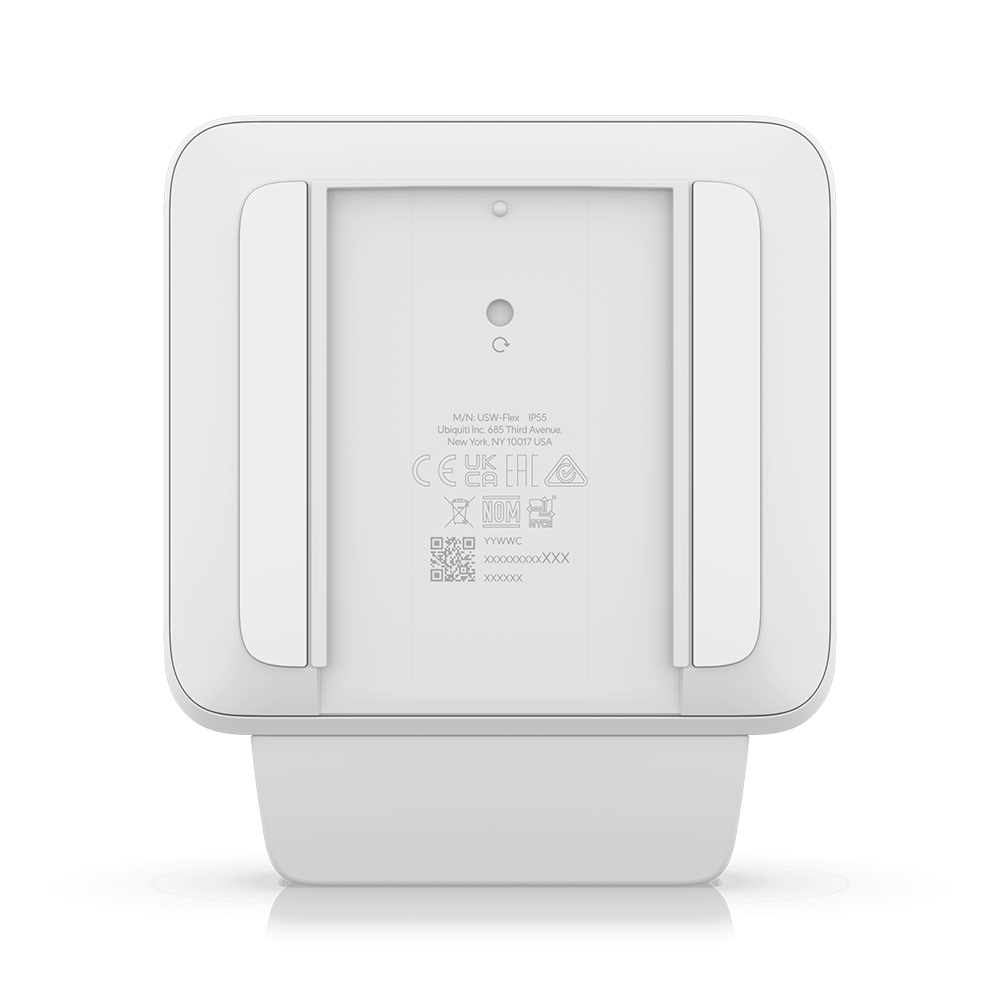

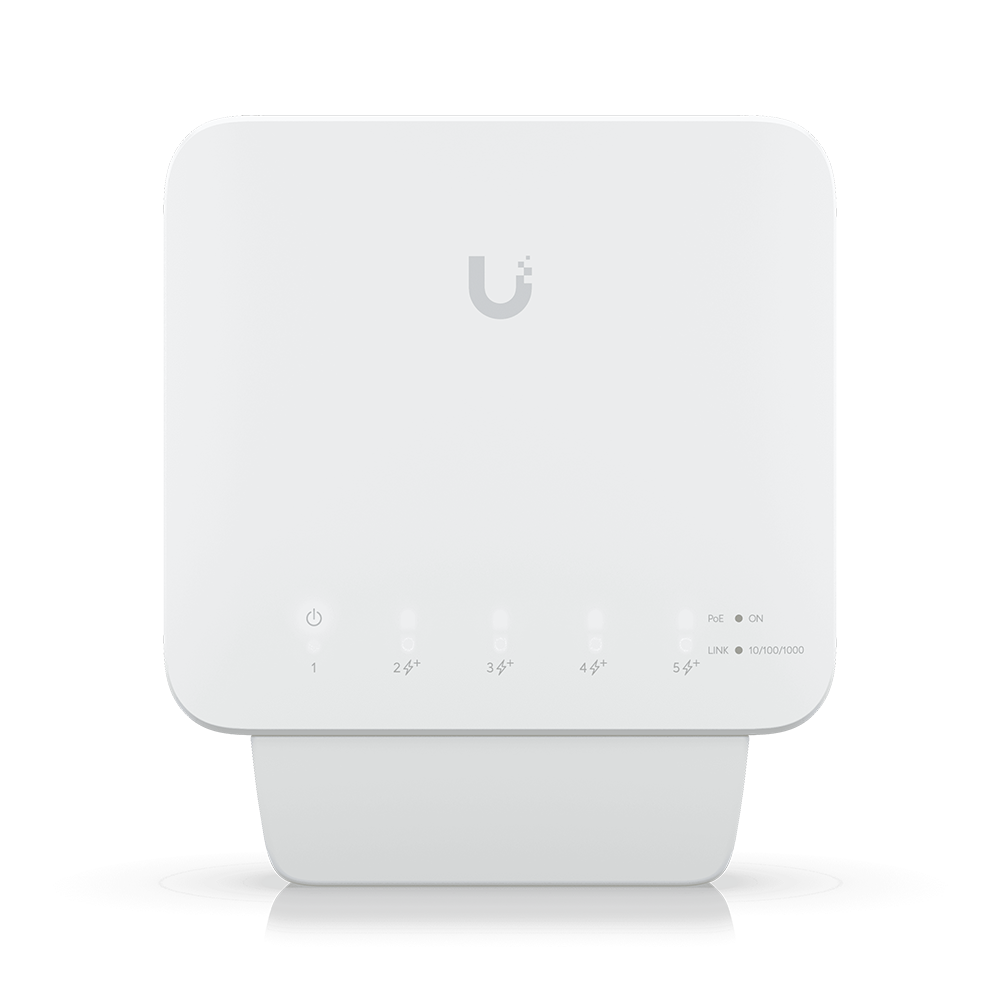

Flex (USW-Flex 46W)
USW-Flex (46W)
Përshkrim
Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.
Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 122.5 × 107.1 × 28 mm (4.8 × 4.2 × 1.1") |

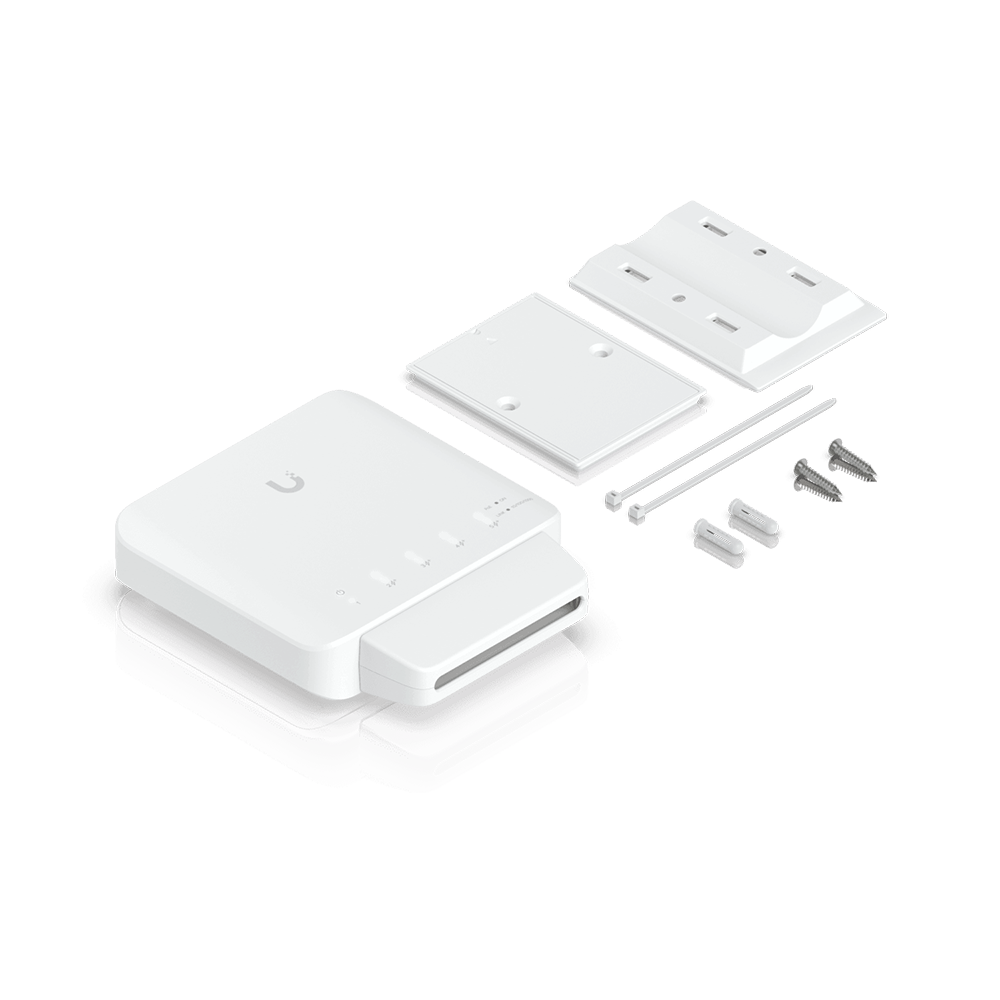

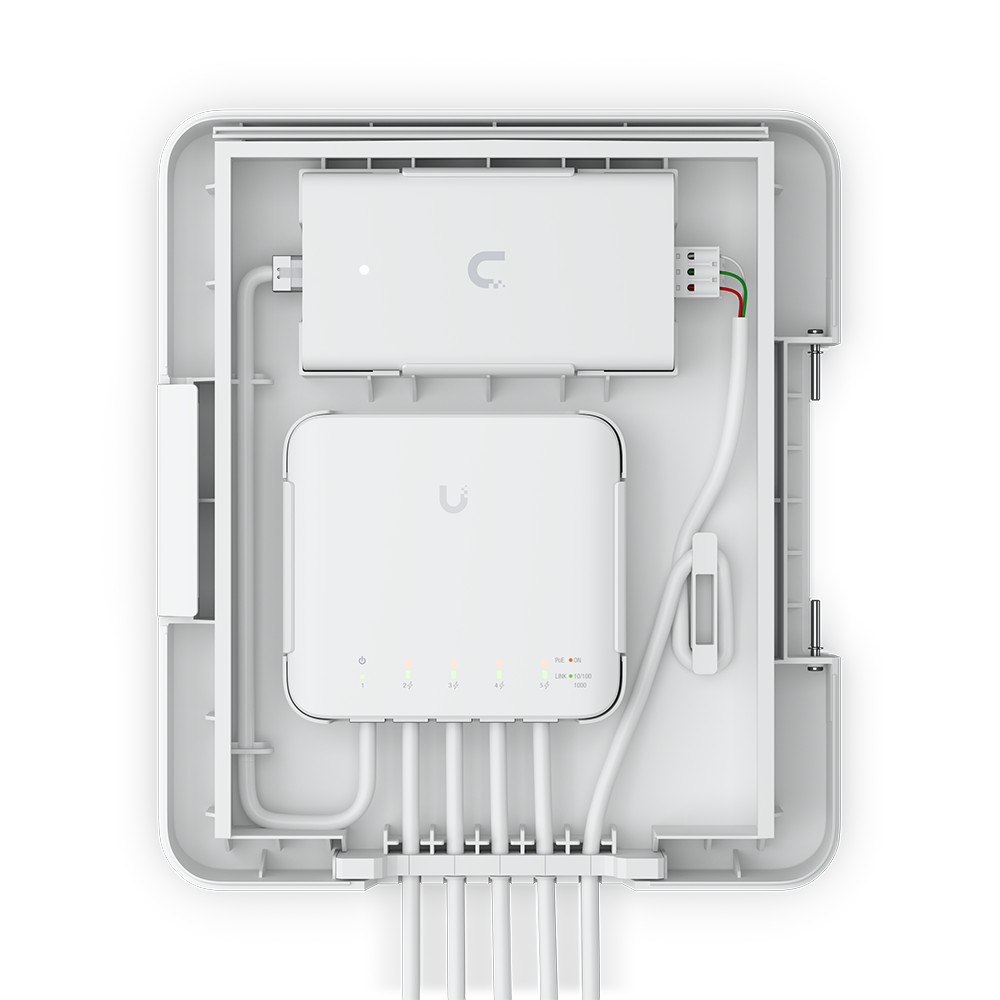

| Form Factor | Compact desktop, wall mount, pole mount |
| Weight | 230 g (8.1 oz) |
| Outdoor Ready | Yes |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 14502-20-08356 |
| Networking Ports | 5 × GbE RJ45 (1G / 100M / 10M) |
| Port Layout | 4 × PoE+ ports, 1 × PoE++ port |
| Max PoE Output | Up to PoE+ |
| Total PoE Availability | 46 W |
| Max PoE Wattage per Port | PoE+: 25 W |
| Power Method | PoE++ |
| Power Input Method | PoE |
| Supported Voltage Range | 50–57 V PoE |
| Max Power Consumption | 5 W (excluding PoE output)51 W (including PoE output) |
| Heat Dissipation | 17.1 BTU/hr (excluding PoE output) |
| Switching Capacity | 10 Gbps |
| Total Non-Blocking Throughput | 5 Gbps |
| Forwarding Rate | 7 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table | 2,000 entries |
| Layer 2 Features | Egress rate limit, flow control, port isolation, port mirroring, jumbo frames |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| Management | Ethernet |
| ESD Protection | Air/contact: ±16 kV |
| Operating Temperature (46W PoE) | −40 to 55 °C (−40 to 131 °F) |
| Operating Temperature (25W PoE) | −40 to 65 °C (−40 to 149 °F) |
| Operating Humidity | 5–95% non-condensing |
| Software Management | UniFi Network |
| Application Requirement | UniFi Network v5.10.3 or later |
