The scope of application is: aerial, underground, wall-mounting, duct-mounting, handhole-mounting. The ambient temperature ranges from…

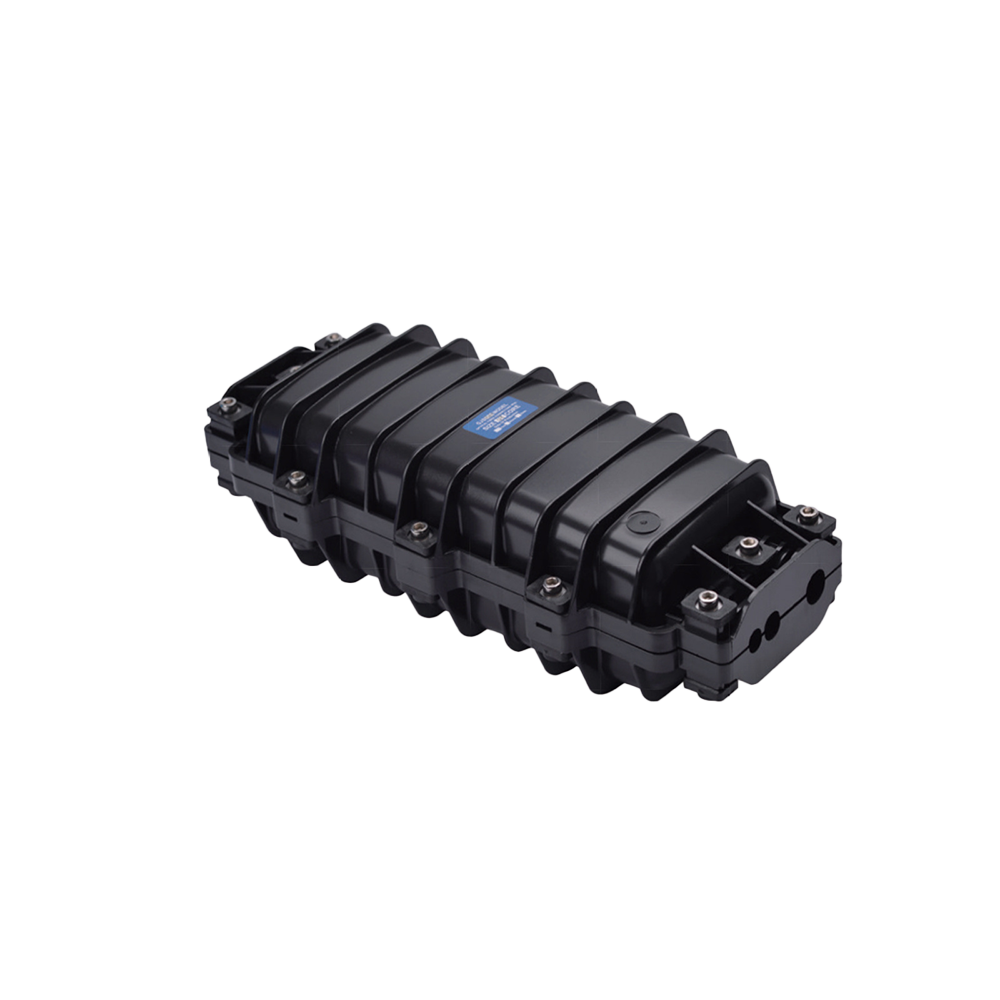

Basic Structure And Configuration
2.1 Dimension And Capacity
| Outside dimension (LxWxH) | 430x180x125 (mm) |
| Weight (excluding outside box) | 2500g-2825g |
| Number of inlet/outlet ports | 3 (pieces) on each side (total 6 pieces) |
| Diameter of fiber cable | Φ8—Φ20 (mm) |
| Capacity of FOSC | Bunchy: 12—96 (Cores) Ribbon: max. 144(Cores) |
2.2 Main Components
| No. | Name Of Components | Quantity | Usage | Remarks | |
| 1 | Housing(bottom) | 1 set | Protecting fiber cable splices in whole | Internal diameter: 430*186*63 (mm) |
|
| 2 | Housing(cover) | 1 set | Protecting fiber cable splices in whole | Internal diameter: 430*186*63(mm) |
|
| 3 | Fiber optic splice tray (FOST) |
Max.6 trays (bunchy) or Max.4trays (ribbon) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy: 12,24(cores) Ribbon: 3 (pieces) | |
| 4 | Foundation | 1 set | Fixing fiber cable, reinforced core and FOST | ||
| 5 | Seal fitting | 1 set | Sealing between FOSC cover and FOSC bottom | ||
| 6 | port plug | 6 pieces | Sealing empty ports | ||
| 7 | Fixed bolt | 6 sets | Fixing the house | ||
2.3 Main Accessories And Special Tools
| No. | Name Of Accessories | Quantity | Usage | Remarks |
| 1 | Heat shrinkable protective sleeve | Protecting fiber splices | Configuration as per capacity | |
| 2 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
| 3 | Insulation tape | 1 roll | Enlarging diameter of fiber cable for easy fixing | |
| 4 | Seal tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
| 5 | Hanging hook | 1 set | For aerial use | |
| 6 | Earthing wire | 1 piece | Putting through between earthing devices | To put through as per actual requirement |
| 7 | Abrasive cloth | 1 piece | Scratching fiber cable | |
| 8 | Labeling paper | 1 piece | Labeling fiber | |
| 9 | M8 Special wrench | 1 pieces | Fixing bolts of housing and insert plate | |
| 10 | M10 Special wrench | 1 piece | Tightening nut of reinforecd core | |
| 11 | Instruction manual | 1 piece | Standard installation |
