The scope of application is: aerial, underground, wall-mounting, duct-mounting and handhole- mounting.
The ambient temperature ranges from –40℃ to +65℃.
Dimension and capacity

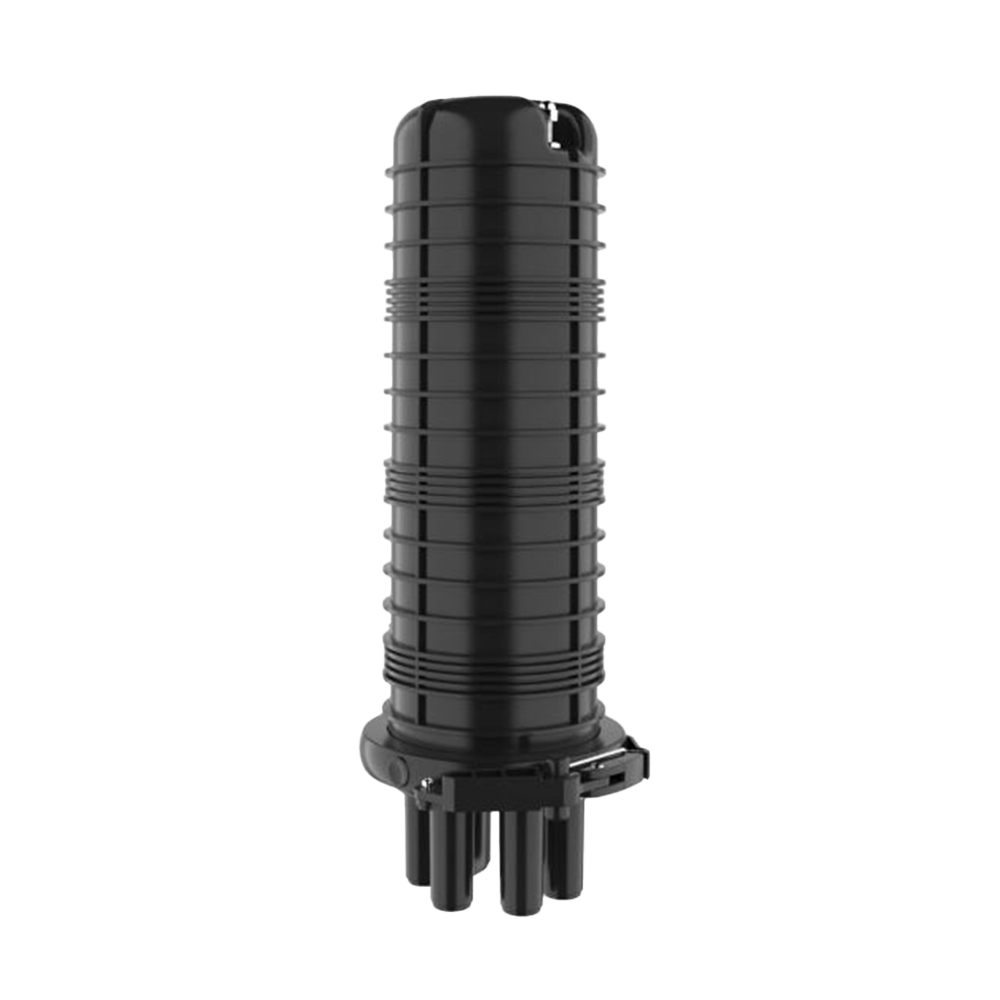

Outside dimension (Height x Diameter) 472mm×193mm
Weight (excluding outside box) 3000 g— 3600g
Diameter of fiber cable Φ8mm～Φ20mm
Number of inlet/out ports 4+1 pieces in general
Main components
FOSC cover – Protecting fiber cable splices in whole
Fiber optic splice tray (FOST) – Fixing heat shrinkable protective sleeve and holding fibers
Fiber holding tray – Holding fibers with protective coat
Base – Fixing internal and external structure
Plastic hoop – Fixing between FOSC cover and base
Seal fitting – Sealing between FOSC cover and base
Pressure testing valve – After inject air, it is used for pressure testing and sealing testing
Earthing deriving device – Deriving metal parts of fiber cables in FOSC for earthing connection
