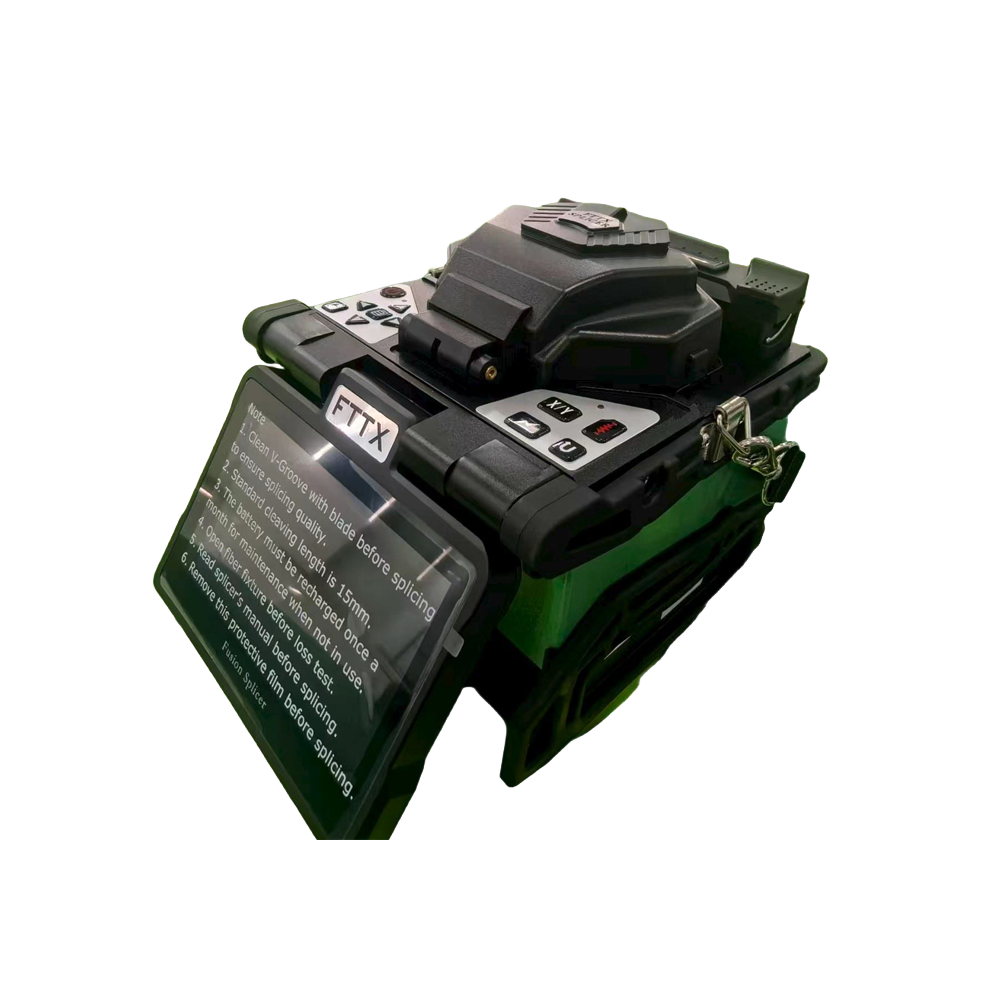

Fusion Splicer ST-912T
1 230.00 €
ST-912T
Fusion Splicer profesional për fibra optike me rreshtim preciz dhe funksionim automatik/manual, i projektuar për instalime FTTH, FTTx, rrjete telekomunikacioni, CATV dhe mirëmbajtje të infrastrukturave optike. Pajisja ofron humbje minimale të splicing, ruajtje të rezultateve dhe përdorim të qëndrueshëm në ambiente të ndryshme pune.
| Description | Specification |
|---|---|
| Applicable Fibers | Single Fiber: SMF (G.652/G.657), MMF (G.651), DSF (G.653), NZDSF (G.655) |
| Average Splice Loss | SM: 0.02dB / MM: 0.01dB / NZDS: 0.04dB / EDF: 0.04dB |
| Return Loss | ≥60dB |
| Tension Test | 2.0N (200gf) Standard |
| Typical Splicing Time | 8 sekonda |
| Typical Heating Time | 20 sekonda |
| Splicing Programs | 50 grupe programesh |
| Protection Sleeve Length | 40mm / 45mm / 60mm |
| Operating Language | Kinezisht, Anglisht, Frëngjisht, Portugalisht, Spanjisht |
| Operating Temperature | -10°C ~ +50°C |
| Operating Humidity | 0 ~ 95% RH |
| Maximum Operating Altitude | 0 ~ 5000m |
| Power Supply (AC Adapter) | 100–240V AC, 50/60Hz input; 12V DC, 5A output |
| Battery | Inner Lithium Battery 12V, 6Ah |
| Monitor | 5" High Resolution Color LCD Display |
| Fiber Image Magnification | 520× X/Y Axis Separate View; 230× Simultaneous View |
| Splice Result Storage | Deri në 10,000 rezultate të fundit të splicing |
| Splicing Mode | Auto / Manual / Full Auto |
| Optical Fiber Fixture | 3-in-1 Cutting Fixture |
| Dimensions | 130(W) × 138.5(D) × 135(H) mm |
| Package Size | 52 × 31 × 29 cm |
| Weight | 1.69kg + 0.38kg bateri = 2.06kg |
| Package Gross Weight | 7.6kg |
> 5 inches high resolution colorful LCD display, image can be turned according to position
> Average splice time: 8 seconds
> Average tube-heat time: 20 seconds
> Lithium battery: Rechargable and up to 220 times of continuous splice and heat after fully charged
> X or Y axis Separately views with 520 times magnification, or Simultaneously 230 times
> Cutting-edge technology for image processing
> New developed technology providing strong wind and dust resistance
> Splicing mode: Auto & Manual & Full-Auto
> USB Port
> Storing 10,000 groups of latest splice results
> New technology of fiber core alignment, enhanced accuracy
Produkte të afërt

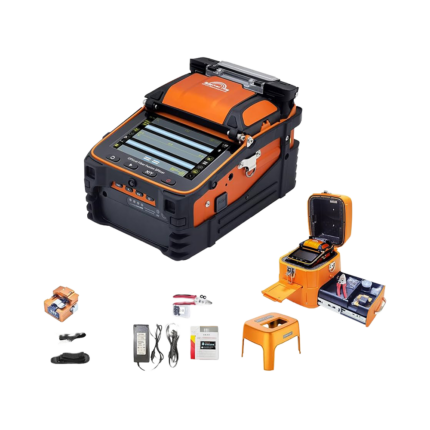

AI 9 Optical Fiber Fusion Splicer

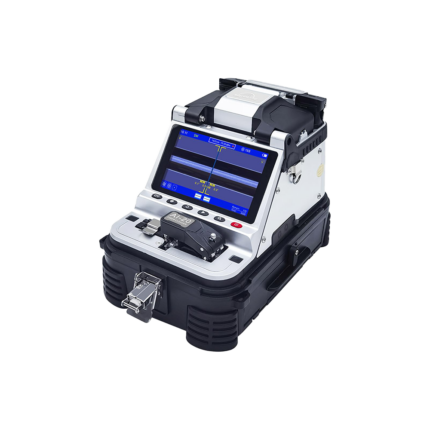

AI 20 Optical Fiber Fusion Splicer

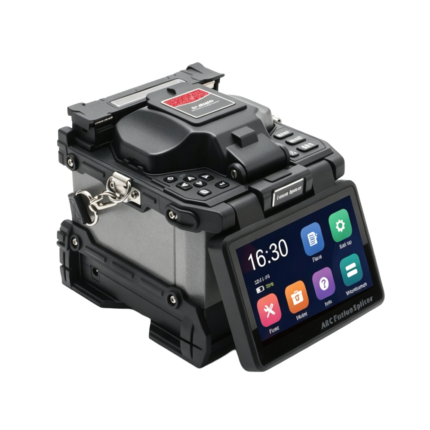

Optical fiber fusion splicer SHINHO X-900
