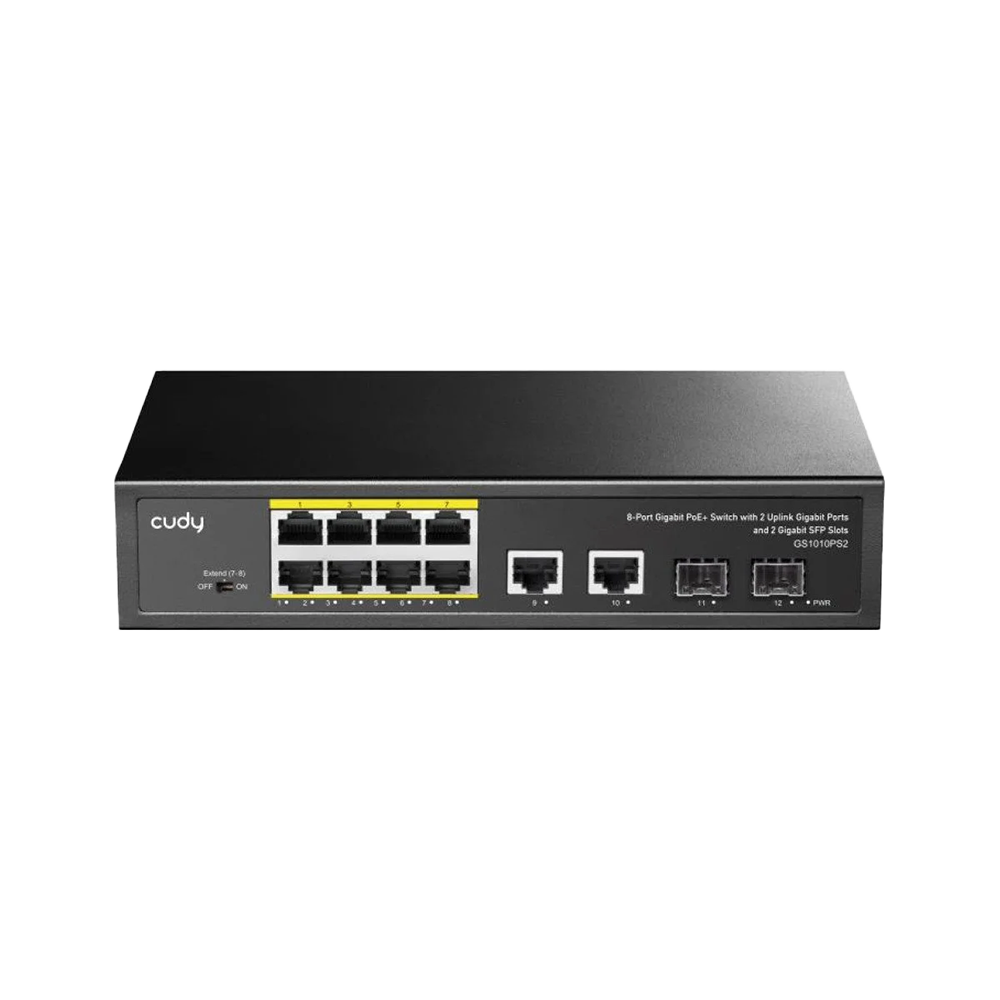

8-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP (GS1010PS2)

DATASHEET

75.30 €

A rack-mounted 10-GbE, 2-SFP PoE switch with a 120W power supply and a silent cooling system.

  •  8× GbE with 802.3at/af Mode A PoE
  •  2× Uplink GbE + 2× Uplink SFP
  •  120W Power Supply
  •  Extend for 250 Meters Transmission
  •  Watchdog under Extend Mode
  •  Desktop, Rack-Mount
  •  220×161×44 mm (8.66×6.34×1.73″)
Kodi i produktit : 9392 Kategori: ,
Model Version GS1010PS2 1.0
Mechanical Dimension 220×161×44 mm
8.66×6.34×1.73 inches
Product Weight 934 g (32.95 oz.)
Casing Material Metal
Installation
  • Desktop
  • Rackmount via Brackets
Interfaces Physical Buttons Default/Extend DIP switch
Gigabit RJ45 Ports 2
Gigabit RJ45 PoE Ports 8
Max Power on a Single PoE Port 30W
PoE Port Notes PoE Ports support 802.3at/af standards.
PoE priority ranks from #1~#8.
Extend Mode Ports #7~#8
LED
  • Power
  • Link/ACT of Each Ethernet Port
Power Input AC Inlet
Performance Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports.
MAC Address Table 2048
Max Switching Capacity 24 Gbps
Max Forwarding Rate 17.856 Mpps
Jumbo Frame 2 KB
Packet Buffer 448 Kbit
Power Power Methods AC
AC 100-240V 50/60Hz
Max Power Consumption 10W
Max Power Excluding PoE 10W
Switching 802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-T
  • 802.3ab 1000BASE-T
  • 802.3z 1.25 Gbps over Fiber
  • 802.3x Flow Control
  • 802.3af PoE
  • 802.3at PoE
Port Management Watchdog
Port Management Note The Watchdog is on under the Extend mode and will attempt to reboot the plugged-in but inactive client.
Reliability Grounding Methods Three-Prong Plug
Lightning/Surge Protection 4kV
ESD Contact Protection 6kV
ESD Air Protection 8kV
Environment Operating Temperature: -10~50 ℃ (14~122 ℉)
Storage Temperature: -40~70 ℃ (-40~158 ℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Package Content
  • Main Product
  • Power Cord
  • Installation Guide
