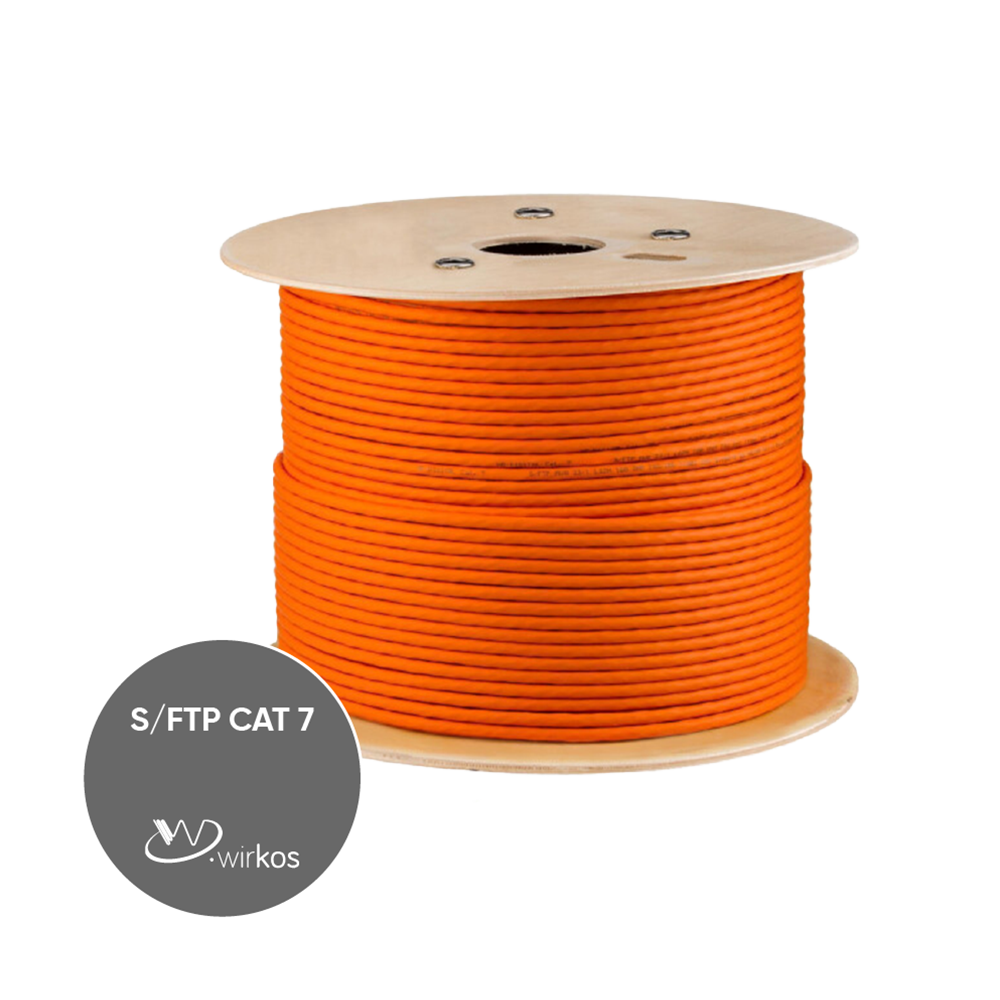

Wirkos LAN CABLE S/FTP CAT7 4Pair/0.57 Cu


S/FTP Cat 7 4Pair/0.57 Cu cable is an advanced Ethernet cable designed for high-performance network installations demanding superior shielding against electromagnetic interference (EMI). It adheres to Category 7 standards, supporting ultra-high-speed data transmission up to 10 Gbps or higher over extended distances, making it ideal for data-intensive applications in environments such as data centers, industrial facilities, and areas prone to high EMI.

This cable features pure copper conductors with a diameter of 0.57 mm² per pair, ensuring exceptional conductivity and durability for maximum performance and reliability. It incorporates robust shielding technology including individual pair shielding (S/FTP – Shielded and Foiled Twisted Pair), overall foil shielding (FTP – Foil Twisted Pair), and an additional braided shield (S – Shielded), effectively minimizing EMI and crosstalk to maintain superior signal integrity and reduce the risk of signal degradation.

Packaged in a sturdy and protective format suitable for industrial applications, S/FTP Cat 7 4Pair/0.57 Cu cable provides reliable performance and ease of installation, ensuring optimal protection and longevity in demanding network environments. It is the preferred choice where exceptional performance, reliability, and stringent EMI shielding are critical requirements.

Kodi i produktit : 6685 Kategori:

Application
Suitable for structured premises cabling
For transmission of digital and analogue voice and data signals.
Especially suitable for all Class F applications.
ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T,Gigabit Ethernet 1000Base-T ,10G Base-T.(IEEE 802.3)
Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s,ATM 155Mbit/s.(IEEE 802.5 )

Standard
IEC/ISO 61156-5
ISO/IEC 11801

Construction

Conductors
Material ———- Solid Bare Copper
Conductors Size mm 0.56+/-0.01

Insulation
Material ———- PE(Skin-Foam-Skin)
Diameter mm 1.36+/-0.05
Average Thickness mm 0.40+/-0.05

Assembly
Direction ———- S
No. of Insulation Pair 4

Shielding Material ———- Al-Foil Screneed
Drain wire Material ———- 26AWG TC
Braid Material ———- 16*6*0.12ALM

Jacket
Material ———- PVC
Diameter mm 7.6+/-0.3
Average Thickness mm 0.60+/-0.1
Flame Rate ———- ———
