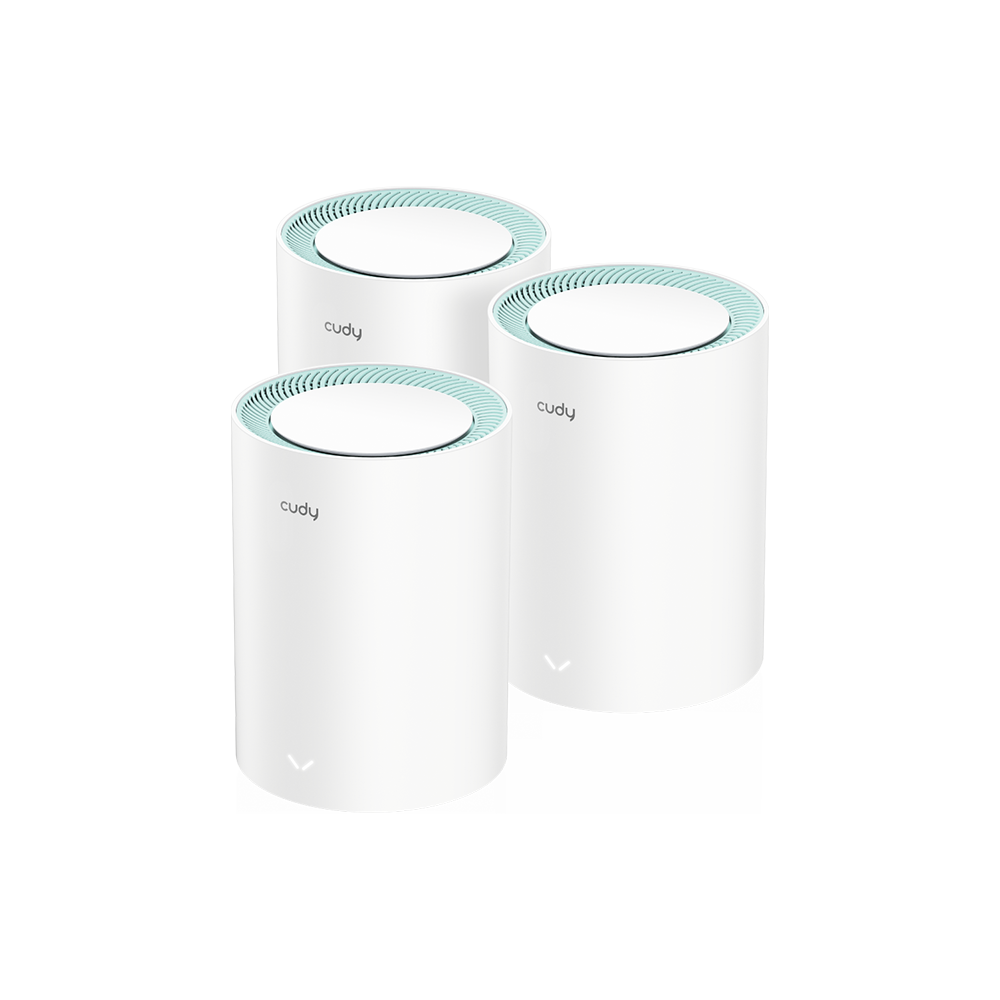

AX1500 Gigabit Mesh Wi-Fi 6 System (M1500, 3-Pack)
125.75 €
M1500
Përshkrim
- 1201 Mbps + 300 Mbps Wi-Fi 1
- 3× Gigabit Ethernet Ports
- Fast Roaming
- Beamforming
- Cudy Mesh, VPN Client
- Multi-Band Simultaneous Backhaul
- Cudy App, Cloud Control
Hardware Specification
| Specification | Details |
|---|---|
| Model | M1500 1.0 |
| CPU | 1 GHz Single-Core CPU |
| Flash Memory | 16 MB NOR |
| RAM | 128 MB DDR3 |
| WiFi Standard | Dual-Band WiFi |
| 5GHz Speed | 1201 Mbps |
| 2.4GHz Speed | 300 Mbps |
| 5GHz Streams | 2 Spatial Streams |
| 2.4GHz Streams | 2 Spatial Streams |
| Antennas | 2 × Internal |
| Beamforming | Yes |
| Max Coverage | Up to 170 m |
| Indoor Coverage Reference | 2-Pack: 170 m² / 3-Pack: 230 m² |
| Ethernet Ports | 3 × Gigabit RJ45 |
| Ethernet Notes | 1 × WAN, Remaining LAN |
| Buttons | WPS, Reset |
| Power Method | DC |
| Power Input | 12V ⎓ 1A |
| Max Power Consumption | 10W |
| Operating Temperature | 0°C to 40°C |
| Humidity | 10% to 90% non-condensing |
| Certifications | FCC, CE |
| Installation | Desktop |
| Dimensions | Ø110 × 154.5 mm |
| Weight | 299.1 g |

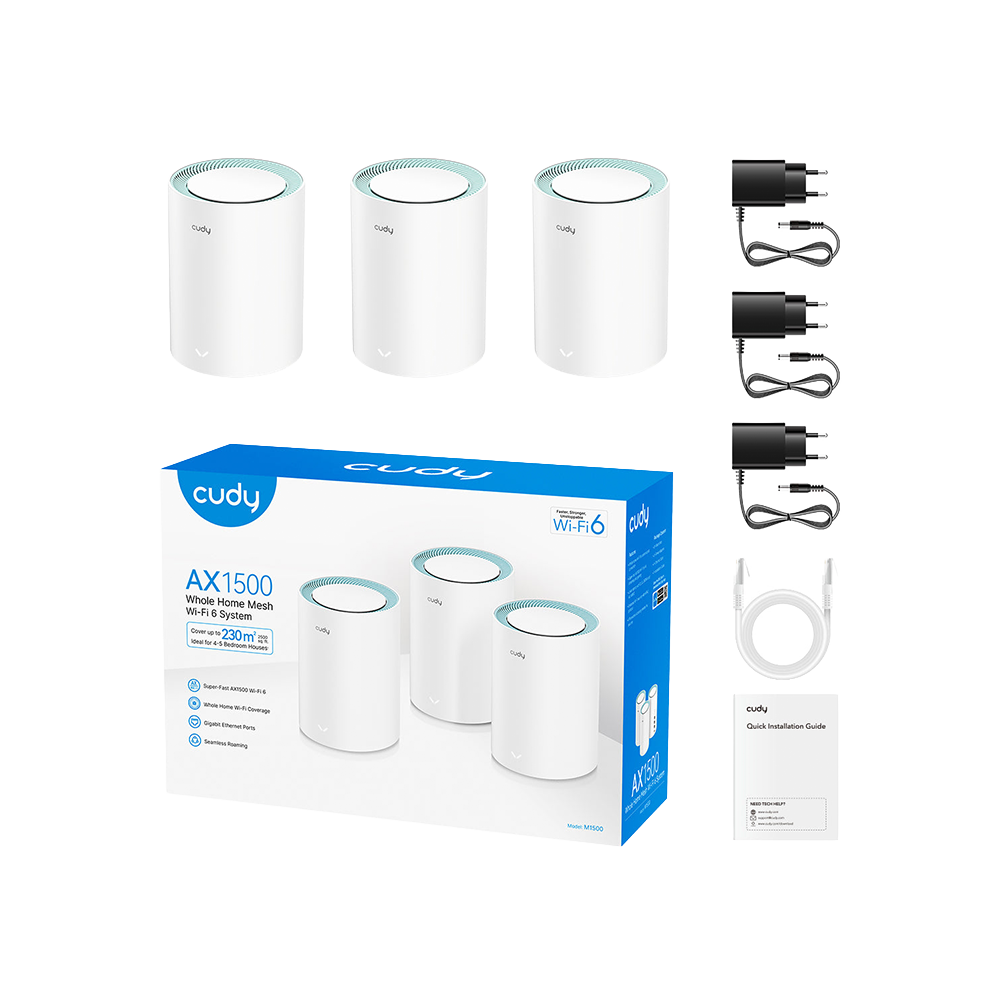

| Included Accessories | Power Adapter, Ethernet Cable, Installation Guide |
Software Specification
| Specification | Details |
|---|---|
| Model | M1500 1.0 |
| WiFi Standard | WiFi 6 |
| Max WiFi Modulation | 1024-QAM |
| Max Capacity | 128 Devices |
| Recommended Clients | Up to 60 |
| Max Channel Width | 80 MHz |
| WiFi Security | WPA / WPA2 / WPA3 |
| Guest Network | 2.4GHz & 5GHz |
| Operation Modes | Router, Access Point, Range Extender, WISP, Client |
| Mesh Technology | Cudy Mesh |
| Mesh Backhaul | Wireless & Wired |
| WAN Modes | DHCP, Static IP, PPPoE, PPTP, L2TP |
| QoS | Per-User Rate Limiting |
| DHCP Features | Address Reservation, DHCP Client List, Server |
| IPv6 Support | Yes |
| IPTV / VLAN | Bridge, Tag VLAN, VoIP VLAN, IPTV VLAN |
| IGMP | Proxy, Snooping |
| Port Forwarding | Yes |
| UPnP | Yes |
| DMZ | Yes |
| Firewall | SPI Firewall, Block PING |
| VPN Client | PPTP, L2TP, WireGuard |
| DNS Features | Manual DNS, Rebind Protection, DNS Override |
| Wake on LAN | Yes |
| Parental Control | Profiles, Time Limits, Web Filter |
| Device Management | Internet On/Off, VPN On/Off, Device Rename |
| Content Management | Domain Filter, IP Filter |
| Management Methods | Web Page, App Control, Remote HTTPS |
| Firmware Upgrade | Local, OTA App Update, Online Update |
| Diagnostic Tools | Ping, Traceroute, NSLookup, System Log |
| Supported Languages | English, Portuguese, Russian, Spanish, Ukrainian, French, Chinese |
| Dashboard Features | Mesh Topology, Internet Speed, WiFi Speed, Device Status |
DATASHEET
