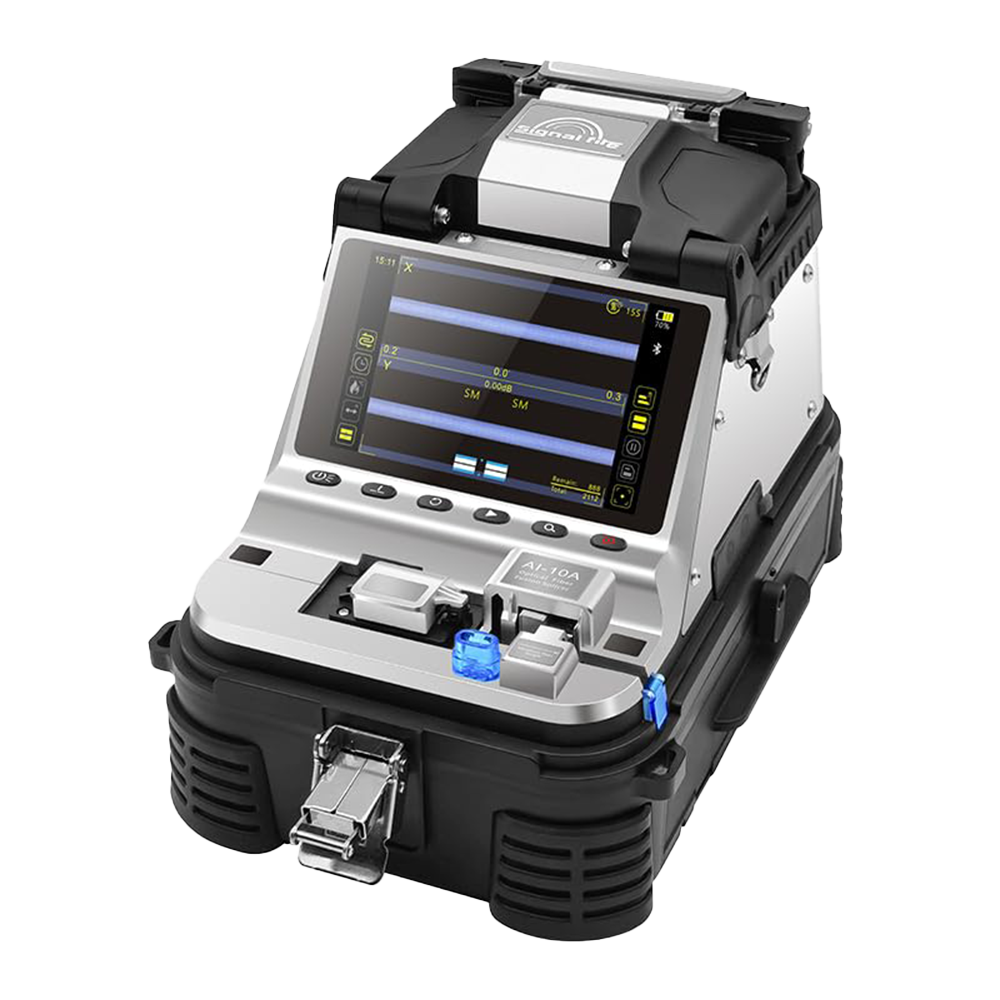

Optical fiber fusion splicer AI 10A

  • With 5-inch 800X480 high-resolution screen, is up to 300 times focus magnifications, making it easy to observe the fiber with naked eyes;6s fast splicing 15s fast heating,the working efficiency increased by 50% compared to ordinary splicing machines.
  • 3 In 1 Fiber Holder suit for SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable;Splice Loss:0.025dB(SM)、0.01dB(MM)、0.04dB(DS/NZDS);Fiber diameter:Cladding Diameter：80-150μm、Coating Diameter：100-1000μm;Fiber Cleave Length:Coating less than 250µm：8-16mm、Coating less than 250-1000µm:16mm.
  • Built-In power meter (Wavelength 850nm/1300nm/1310nm/1490nm/1550nm/1625nm); Built-in Visual Fault Locator:Power:15mw,2hz flashing And Constantly Bright Mode.
  • Configure it on the phone app,splicing is easy to operate.10 Languages to switch freely :English,french,Russion,Italian,Portuguese,Polish,Spanish,Thai,Arabic. splicing record storage, synchronize to the phone, the server to cloud storage unlimited.
  • It is especially suitable for optical fiber and cable projects, maintenance scientific research, railway, petrochemical, electric power, military and public security and other communications fields.

1,750.00 €

1

THE FOURTH GEGERATION TRUNK LINE OPTICAL FIBER FUSION SPLICER

Signal fire fusion splicer AI-10A is the world’s first fourth-generation optical fiber fusion splicer, it combines electric cleaver and fusion splicer as one, with 8-in-1 signal fire stripper, and can be combined with the work bench and table, making it is the world’s first real sense, small size, light weight, easy to operate optical fiber fusion splicer.

Signal fire AI-10A optical fiber fusion splicer uses a number of patents, the full weight of the main machine, the toolbox and a complete set of accessories is only 4.5KG, and the toolbox size is 25.5cmx16.5cm x23cm. In such a small and compact case, the combined design of bench and bench is realized at the same time. Industrial CPU, running speed is super fast, 6 seconds fast splicing, 15 seconds heating, 5 inch color HD LCD screen, 320 times magnification,7800mAh large capacity lithium battery can splice and heat 240 cores, in high altitude, dry,cold and other harsh environments still perform well.

DETAILS

2

3

4

EXQUISITE DETAILS

The buttons are clear and beautiful

3-IN-1 UNIVERSAL FIBER HOLDER

SM, MM, bare fiber, pigtail, Drop cable , multi fiber cable

BUILT-IN VFL AND OPM FUNCTION

Effectively measure connection losses, verify continuity,and help evaluate fiber link transmission quality

OPM:Switch between six states（Wave

length:850nm;1300nm,1310nm,1490nm,1555nm,1625nm）

VFL:Switch between three states（power: 15mW, 2Hz flashing and steady on mode）

15S AUTOMATIC HEATING

1

2

3

Preheating

Successful fiber spliced.When opening the windproof cover to take out the fiber, the machine turns on pre heating for up to 6 seconds

Heating part automatic lid closing

Heating part compatible with SC fiber

SC Fiber: Push up

Ordinary fiber: Push down
5

INTELLIGENT INTERACTION, AVOID TEDIOUS



  • Welding record can be read through mobile phone,and the data can be exported
  • You can set the parameters of the welding machine, such as selecting the machine language, changing the heating time, selecting the fiber optic alignment mode
  • You can set the use time of the machine, welding times, etc;
