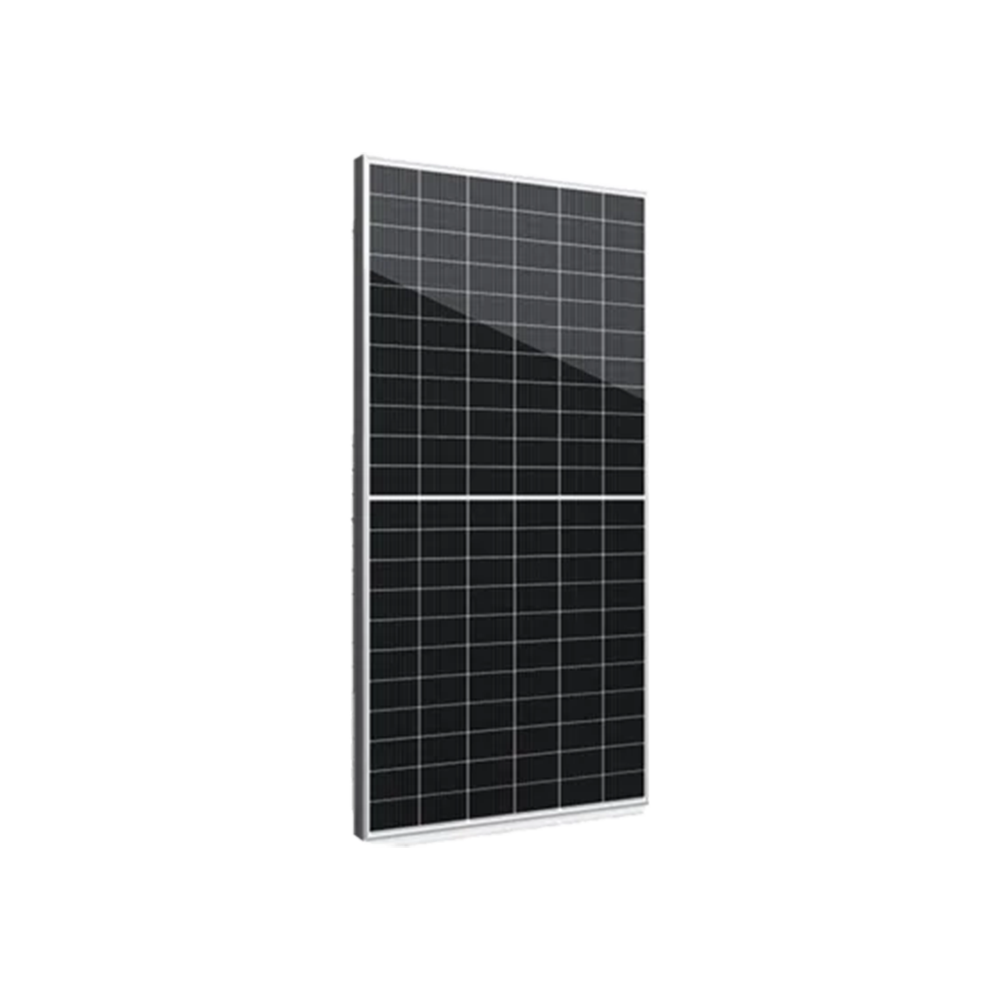

Panela solar 705w (HN21-66HT-705w)
Përshkrim
| Module Power | 705 |
| Cell Type | Topcon / N-Type Mono |
| Frame Color | Silver |
| Module Type | Bi-Facial |
Specifications
| Series Power Range (Wp) | 680~705 |
| Manufacturer SKU | HN21N-66HT-705W |
| Primary (Years, % Output Power) | 30, 87.4 |
| Voltage at Maximum Power, Vmpp (V) At STC | 40.60 |
| Current at Maximum Power, Impp (A) At STC | 17.37 |
| Open Circuit Voltage, Voc (V) At STC | 48.40 |
| Short Circuit Current, Isc (A) At STC | 18.38 |
| Panel Efficiency (%) At STC | 22.70 |
| Power Tolerance, - (%) At STC | 0.00 |
| Temperature coefficient of Pmax (%/°C) | -0.28 |
| Temperature coefficient of Voc (%/°C) | -0.23 |
| Temperature coefficient of Isc (%/°C) | 0.05 |
| Maximum System Voltage (V) | 1500V DC(IEC) |
| Cell Number | 132 |
| Glass Thickness (mm) | 2mm-2mm |
| Backsheet Type | Glass |
| Frame Type | Anodized Aluminium Alloy |
| Connector Type | MC4-EVO 2A/Z4S-abcd/Others |
| Cable Crosssection (mm²) | 4 |
| Cable Length (mm) | 300/300mm(can be customized) |
| Maximum Power, Pmax (W) At NOCT | 782.00 |
| Voltage at Maximum Power, Vmpp (V) At NOCT | 40.60 |
| Current at Maximum Power, Impp (A) At NOCT | 19.27 |
| Open Circuit Voltage, Voc (V) At NOCT | 48.40 |
| Short Circuit Current, Isc (A) At NOCT | 20.37 |
| Junction Box | IP68 |
