- HD monitor transmission and power supply
- Wireless AP layout transmission and power supply
- Network telephone transmission , intelligent house and home system
- Intelligent transportation supervisory system(ITS)
- High-speed Way supervisory/Tele-Communication System
- Security protection system, TV medical treatment
- Long-distance Muti-media Schooling, Campus monitoring
- Long-distance broadcast television transmission system
- High-building Security Protection, Military Tele-Com projects

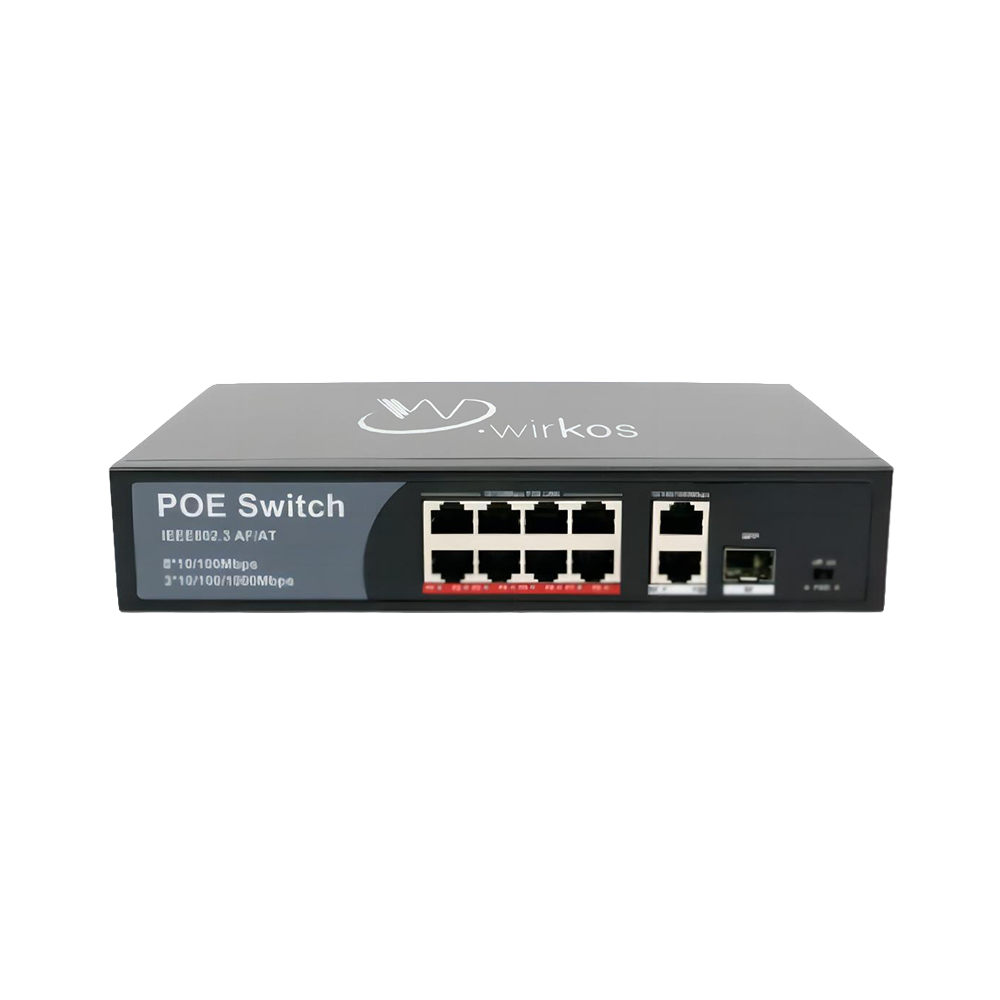

Product Model: WKPOE-UG-821
Product Description: 8x 10/100M copper RJ45 Ports 2x 10/100/1000M copper RJ45 Ports 1x1000M SFP Ports. standard PoE Switch. Port 1-8 support PoE function with port isolation function.
IEEE802.3af/at, max PoE power output is 30W. Total power is 120W. supports Vlan. Built-in power supply.
Note: PoE Power Supply:1,2( )/3,6(-) (Default) ; 45( ),78(-) (Option)
Product Name |
11-Port Standard PoE Switch |
Model |
WKPOE-UG-821 |
Connector Type |
8x 10/100M copper RJ45 Ports 2x 10/100/1000M copper RJ45 Ports 1x1000M SFP Ports
(All ports support MDI/MDIX auto sensing) Port 1-8: PoE port, max PoE output for each port is 30W. |
Network Media |
100BASE-T: Cat5 UTP(≤100 meters); 1000BASE-TX: Cat5 or later UTP(≤100 meters); |
Bandwidth |
5.6Gbps |
Address Database Size |
2K |
Network Latency |
maximum delay less than 20 microseconds |
Forwarding Mode |
Store-And-Forward |
Network Protocols |
IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af/at |
Power Supply |
Input: AC100-240V, 50-60Hz |
PoE Ports |
8*PoE Ports |
PoE Port Power |
Max 30W |
PoE Standard |
IEEE802.3af/at |
Working Environment | Operating Temperature: -20 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Humidity: 10% ~
90%, non-condensing; Storage Humidity: 10% ~ 95%, non-condensing; Working Altitude: 3000 m (10,000 ft); Storage Altitude: 3,000 m (10,000 ft) |
Certification |
CE Mark ,commercial CE/LVD EN60950 |
Radiation |
CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B |
Transmission Distance |
Max 150 meters |
Power Supply Type |
1,2( )/3,6(-) (Default) ; 45( ),78(-) (Option) |
