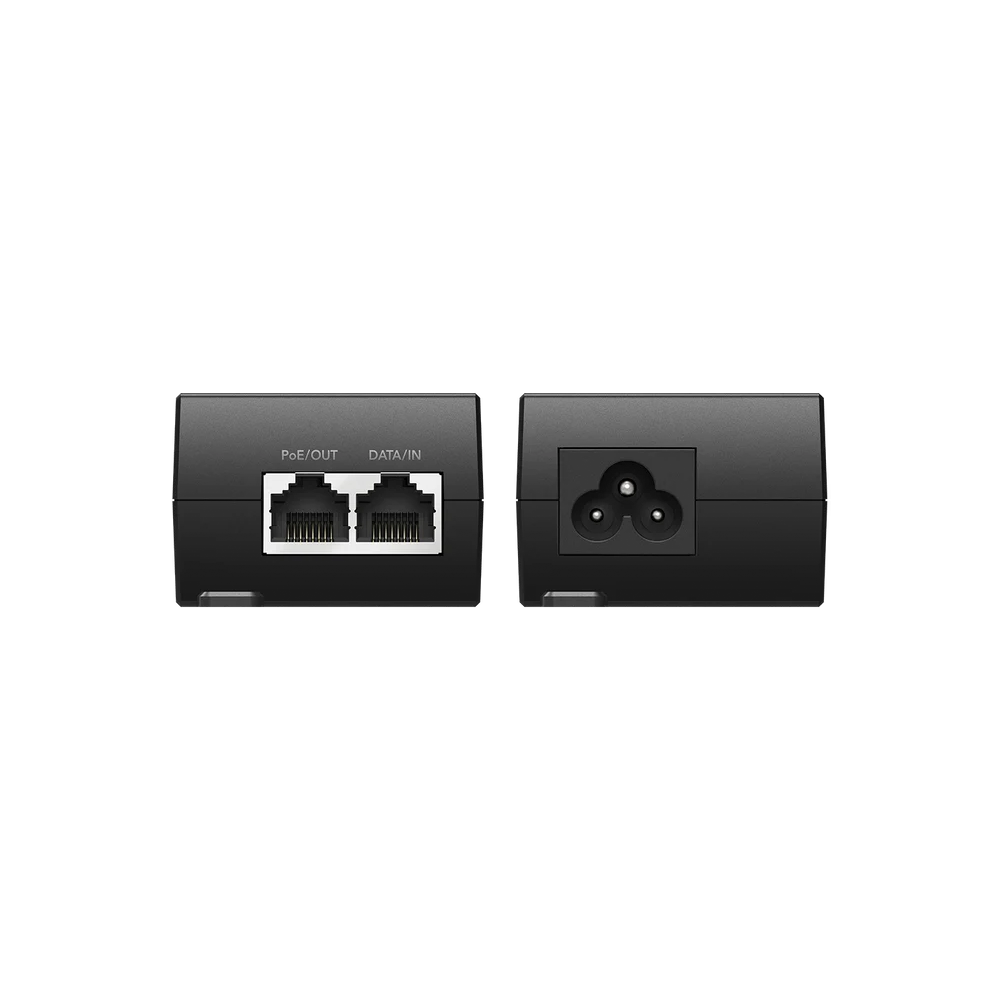

Gigabit 52V 30W Passive PoE Adapter POE52-30W
13.45 €
POE52-30W
POE52-30W 1.0 është një PoE Adapter Gigabit me fuqi 30W, i projektuar për furnizimin me energji të pajisjeve të rrjetit si Access Point, kamera IP dhe pajisje të tjera PoE. Pajisja ofron 1× Gigabit Ethernet uplink dhe 1× Gigabit Passive PoE downlink, duke mbështetur transmetim deri në 100 metra përmes kabllos Cat.5e ose më të lartë. Me mbrojtje të avancuar ndaj mbitensionit, qarkut të shkurtër, ESD dhe surge, është zgjidhje e sigurt për instalime profesionale.
| Specification | Details |
|---|---|
| Model Version | POE52-30W 1.0 |
| Supported IEEE 802.3 Protocols | 802.3i 10 Mbps over Twisted Pair802.3u 100 Mbps over Twisted Pair802.3ab 1 Gbps over Twisted Pair |
| Uplink Stream | 1× Gigabit Ethernet (GbE) |
| Downlink Stream | 1× Gigabit Ethernet, Passive PoE |
| Downlink Pin Assignment | Mode B |
| Maximum Transmission Distance | Cat. 5e or higher cable: 100 meters at Gigabit |
| Transmission Distance Note | Total cable length from uplink switch through PoE adapter to downlink device is measured as one network segment |
| LED Indicators | Power |
| Power Interface | AC Inlet |
| Power Method | AC |
| Power Input | 100-240V~, 50/60Hz, 0.8A |
| Maximum Power Output | 30W, 52V ⎓ 0.58A |
| Power Protection Features | Surge ProtectionESD ProtectionOvervoltage ProtectionShort-Circuit Protection |
| EMC Protection | IEC/EN 61000-4-2 Level 3 ESD: Contact 6kV, Air 8kVIEC/EN 61000-4-5 Level 4 Surge: Power DM 4kV, CM 4kV; RJ45 CM 4kV |
| Grounding Method | Three-Prong Plug |
| Safety Standard | IEC/EN 62368 |
| Operating Temperature | 0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉) |
| Storage Temperature | -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 10% ~ 95% non-condensing |
| Certifications | FCC, CE, CCC |
| Installation Method | Desktop / Wall-Mount |
| Dimensions | 123 × 51 × 35 mm4.84 × 2.01 × 1.38 inches |
| Casing Material | Plastic |
| Package Content | POE52-30WPower CordMounting KitInstallation Guide |
| Retail Package Dimension | 175 × 63 × 57 mm6.89 × 2.48 × 2.24 inches |
| Units per Carton | 40 Units |
| Carton Dimension | 37.8 × 31 × 28 cm14.88 × 12.2 × 11.02 inches |
| Compatible Products | AP3000 1.0LT700 Outdoor 1.0AP3000 Outdoor 1.0AP11000 1.0AP3000_P 1.0AP3600 1.0AP6500 1.0LT700 Outdoor 2.0AP3600 Outdoor 1.0 |
