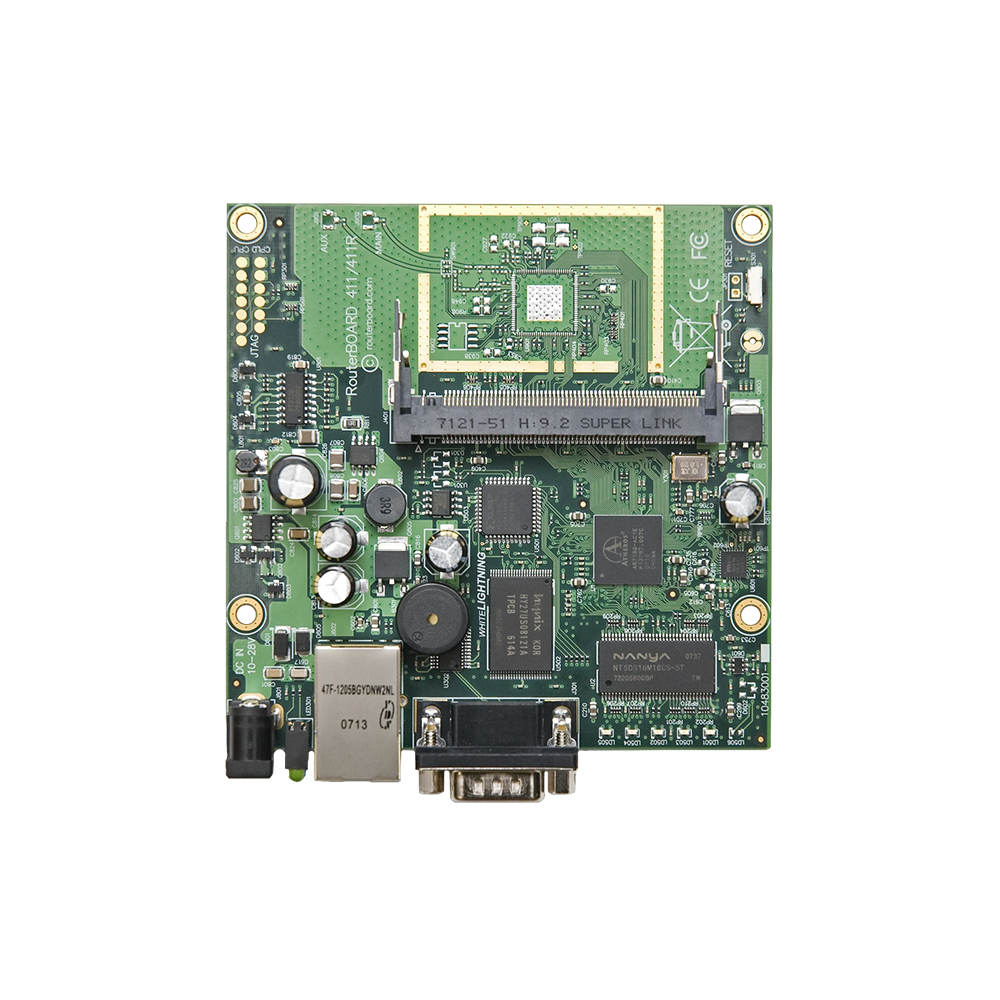

RB411AH
RB411AH – RouterBOARD 411 with 680MHz Atheros CPU, 64MB RAM, 1 LAN, 1 miniPCI, RouterOS L4
Përshkrim
The RB411AH is designed with size and cost in mind. This small device will fit perfectly into small AP, CPE devices or run your wireless backup link. The powerful 680MHz Atheros CPU gives it the ability to do all of this and more.
The RB411AH includes RouterOS – the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.
Product specifications
| Details | |
|---|---|
| Product code | RB411AH |
| CPU nominal frequency | 680 MHz |
| CPU core count | 1 |
| Architecture | MIPS-BE |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | 1 |
| MiniPCI slots | 1 |
| Power Jack | 1 |
| PoE in | Yes |
| Supported input voltage | 10 V – 28 V |
| Voltage Monitor | Yes |
| Operating System | RouterOS |
| Tested ambient temperature | -40°C .. 70°C tested |
| License level | 4 |
| CPU | AR7161 |
| Serial port | RS232 |
| Storage type | NAND |
| Storage size | 64 MB |
