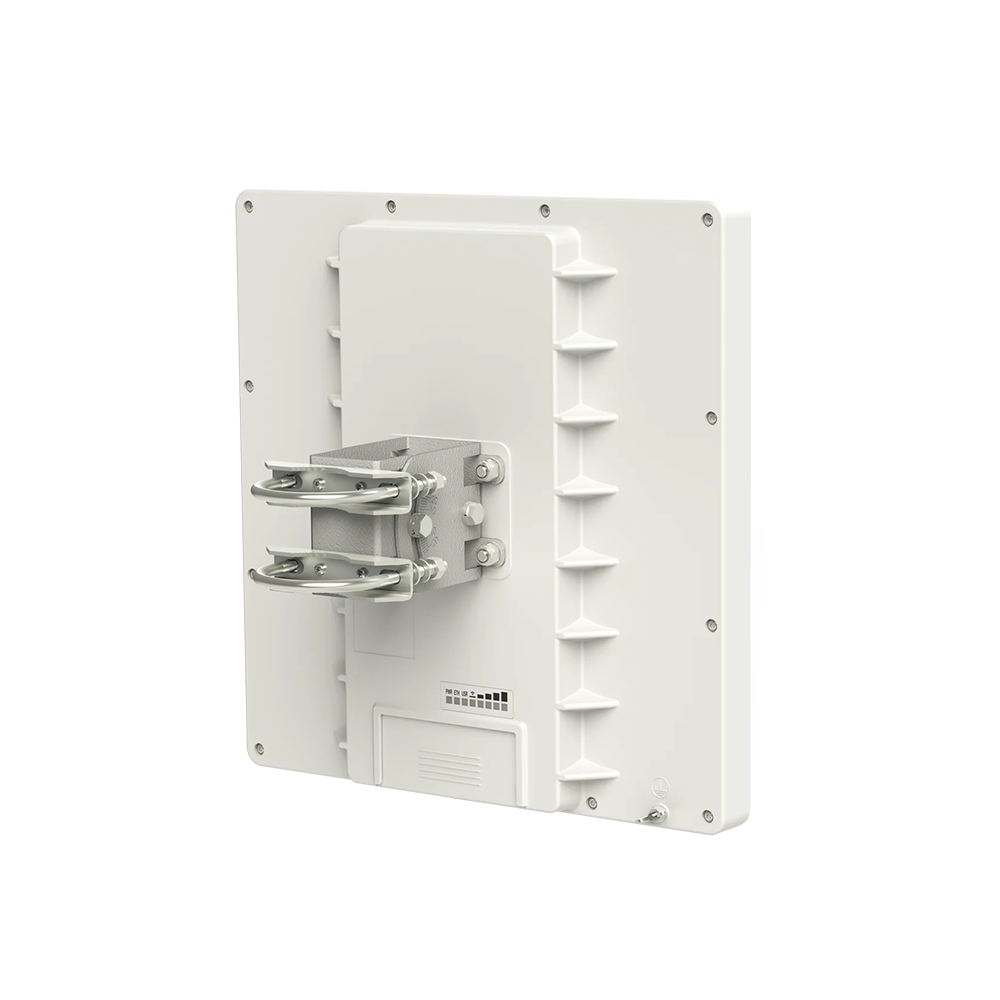

The QRT 5 is a rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 24dBi antenna and a high power 5GHz wireless transmitter.
Inside is the high power RB911 dual chain wireless device (see separate brochure), with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11n high speed wireless.
Easy to use and quick to deploy, QRT is ideal for point to point links.
|CPU nominal frequency||600 MHz|
|CPU core count||1|
|Size of RAM||64 MB|
|10/100/1000 Ethernet ports||1|
|Wireless chip model||AR9342|
|Supported input voltage||8 V – 30 V|
|PCB temperature monitor||Yes|
|Antenna gain DBI||24|
|Max Power consumption||11W at 24V|
|Number of chains||2|
|Storage size||128 MB|
