Name: UniFi Switch Pro Max 16 PoE USW-Pro-Max-16-PoE – Switch 16 Portash PoE+ me 180W PoE
Brand: Unifi
SKU: 9948
Availability: InStock

UniFi Switch Pro Max 16 PoE USW-Pro-Max-16-PoE – Switch 16 Portash PoE+ me 180W PoE

418.03 €

USW-Pro-Max-16-PoE (180W)
Unifi

Koha e arritjes së produktit : Maj 25, 2026 - Maj 26, 2026

Kodi i produktit : 9948 Kategori: Switches with PoE - UniFi Etiketa: FO, G, GM Brand: Unifi

Specification	Details
Model	UniFi Switch Pro Max 16 PoE
Model Code	USW-Pro-Max-16-PoE
Device Type	Managed PoE Switch
Dimensions	325.1 × 160 × 43.7 mm
Form Factor	Rack Mount 1U, Desktop, Wall Mount
WAN Ports	1 × GbE RJ45
Max WAN Port Count	8
PoE Ports	12 × PoE+, 4 × PoE++
Max PoE Output	PoE++ (Up to 64W per port)
Total PoE Availability	180W
Switching Capacity	84 Gbps
Total Non-Blocking Throughput	42 Gbps
Forwarding Rate	62 Mpps
Supported VLANs	1,000
MAC Address Table Size	16,000
IPv4 Static Routes	256
Packet Buffer Size	1.5 MB
Access Lists	IPv4: 128, MAC: 128
Layer 3 Features	DHCP Server, Relay, Inter-VLAN Routing, Static Routing
Layer 2 Features	LACP, STP/RSTP, QoS, Pro AV Profiles, IGMP Snooping, 802.1X Control, Port Isolation, Port Mirroring
Power Method	AC Adapter
Max Power Consumption	210W (Including PoE Output)
Power Supply	External AC/DC, 210W
Supported Voltage	50–54V DC
Processor	ARM Cortex-A53
Management	Ethernet, AR
Display	1.3" Touchscreen
Weight	2.1 kg
Enclosure Material	SGCC Steel
Mount Material	SGCC Steel
Supported Rack Depth	400–1200 mm
ESD/EMP Protection	Air ±15kV, Contact ±8kV
Operating Temperature	-5°C to 40°C
Operating Humidity	10% to 90% non-condensing
NDAA Compliant	Yes
Certifications	CE, FCC, IC, Anatel

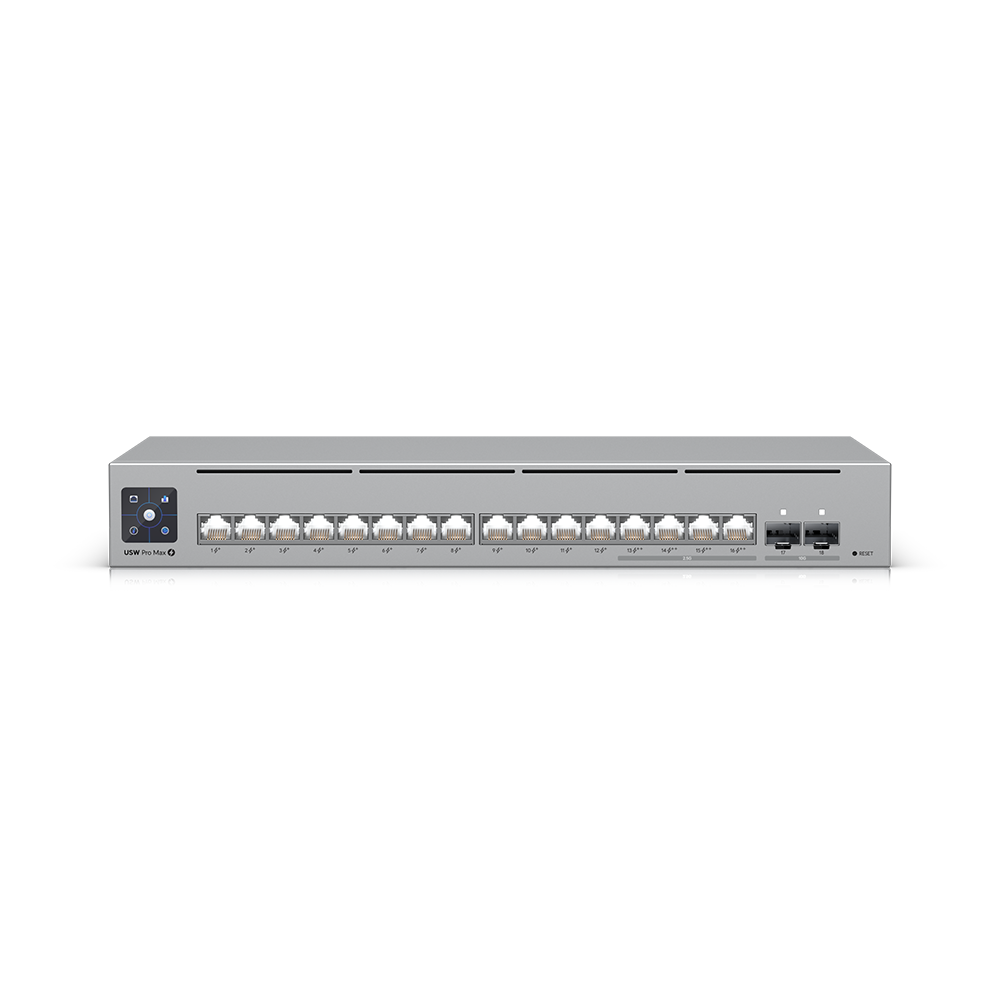

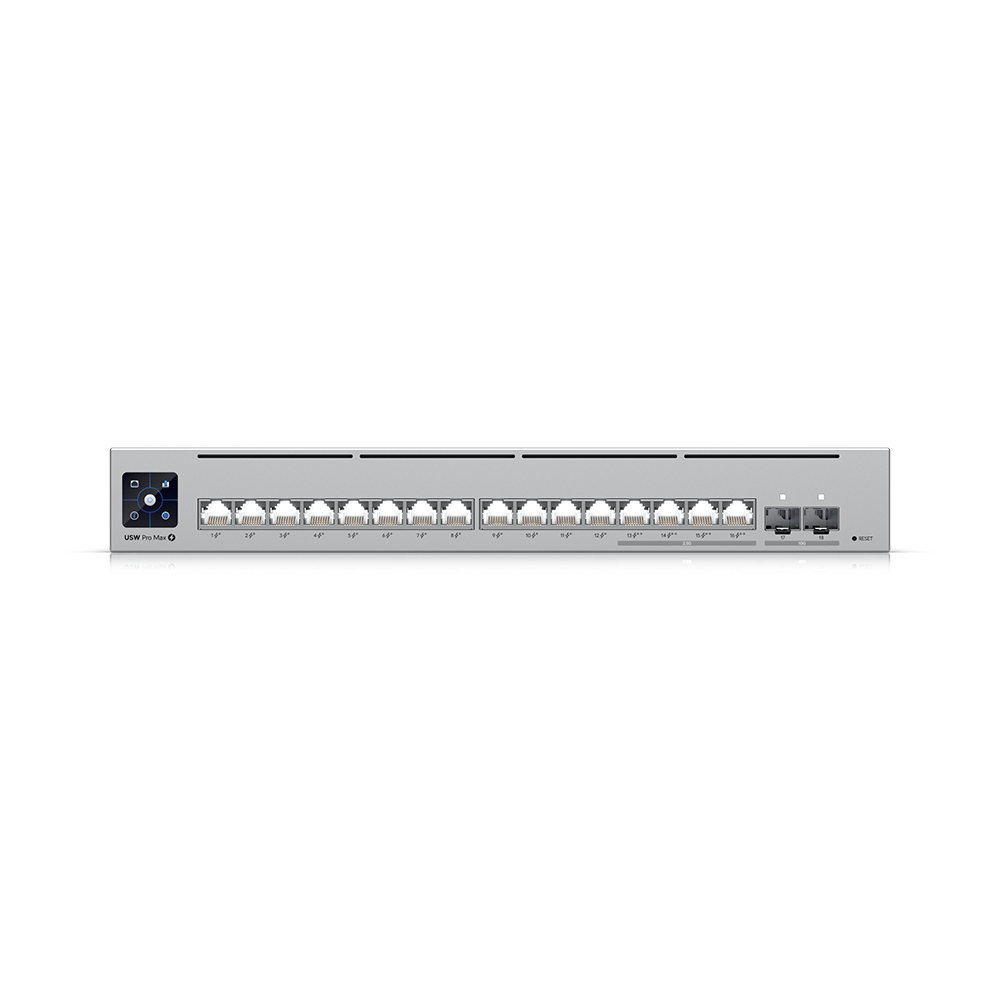

UniFi Switch Pro Max 16 PoE USW-Pro-Max-16-PoE – Switch 16 Portash PoE+ me 180W PoE - Figura 1

UniFi Switch Pro Max 16 PoE USW-Pro-Max-16-PoE – Switch 16 Portash PoE+ me 180W PoE 2

Click to enlarge

UniFi Switch Pro Max 16 PoE USW-Pro-Max-16-PoE – Switch 16 Portash PoE+ me 180W PoE

UniFi Switch Pro Max 16 PoE USW-Pro-Max-16-PoE – Switch 16 Portash PoE+ me 180W PoE - Figura 2

Përshkrim

UniFi Switch Pro Max 16 PoE është switch i menaxhuar me 16 portash PoE+, PoE++ (up to 64W), Layer 3 Routing, dhe 210W total PoE output. I përshtatshëm për pajisje UniFi, kamera, Access Points, dhe redaktorë të avancuar të rrjetit.

Specifications

Specification	Details
Model	UniFi Switch Pro Max 16 PoE
Model Code	USW-Pro-Max-16-PoE
Device Type	Managed PoE Switch
Dimensions	325.1 × 160 × 43.7 mm
Form Factor	Rack Mount 1U, Desktop, Wall Mount
WAN Ports	1 × GbE RJ45
Max WAN Port Count	8
PoE Ports	12 × PoE+, 4 × PoE++
Max PoE Output	PoE++ (Up to 64W per port)
Total PoE Availability	180W
Switching Capacity	84 Gbps
Total Non-Blocking Throughput	42 Gbps
Forwarding Rate	62 Mpps
Supported VLANs	1,000
MAC Address Table Size	16,000
IPv4 Static Routes	256
Packet Buffer Size	1.5 MB
Access Lists	IPv4: 128, MAC: 128
Layer 3 Features	DHCP Server, Relay, Inter-VLAN Routing, Static Routing
Layer 2 Features	LACP, STP/RSTP, QoS, Pro AV Profiles, IGMP Snooping, 802.1X Control, Port Isolation, Port Mirroring
Power Method	AC Adapter
Max Power Consumption	210W (Including PoE Output)
Power Supply	External AC/DC, 210W
Supported Voltage	50–54V DC
Processor	ARM Cortex-A53
Management	Ethernet, AR
Display	1.3" Touchscreen
Weight	2.1 kg
Enclosure Material	SGCC Steel
Mount Material	SGCC Steel
Supported Rack Depth	400–1200 mm
ESD/EMP Protection	Air ±15kV, Contact ±8kV
Operating Temperature	-5°C to 40°C
Operating Humidity	10% to 90% non-condensing
NDAA Compliant	Yes
Certifications	CE, FCC, IC, Anatel

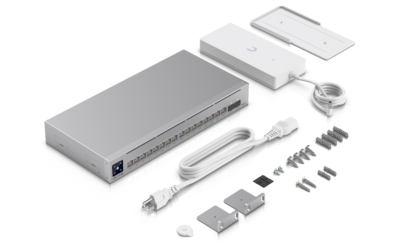

In The Box
