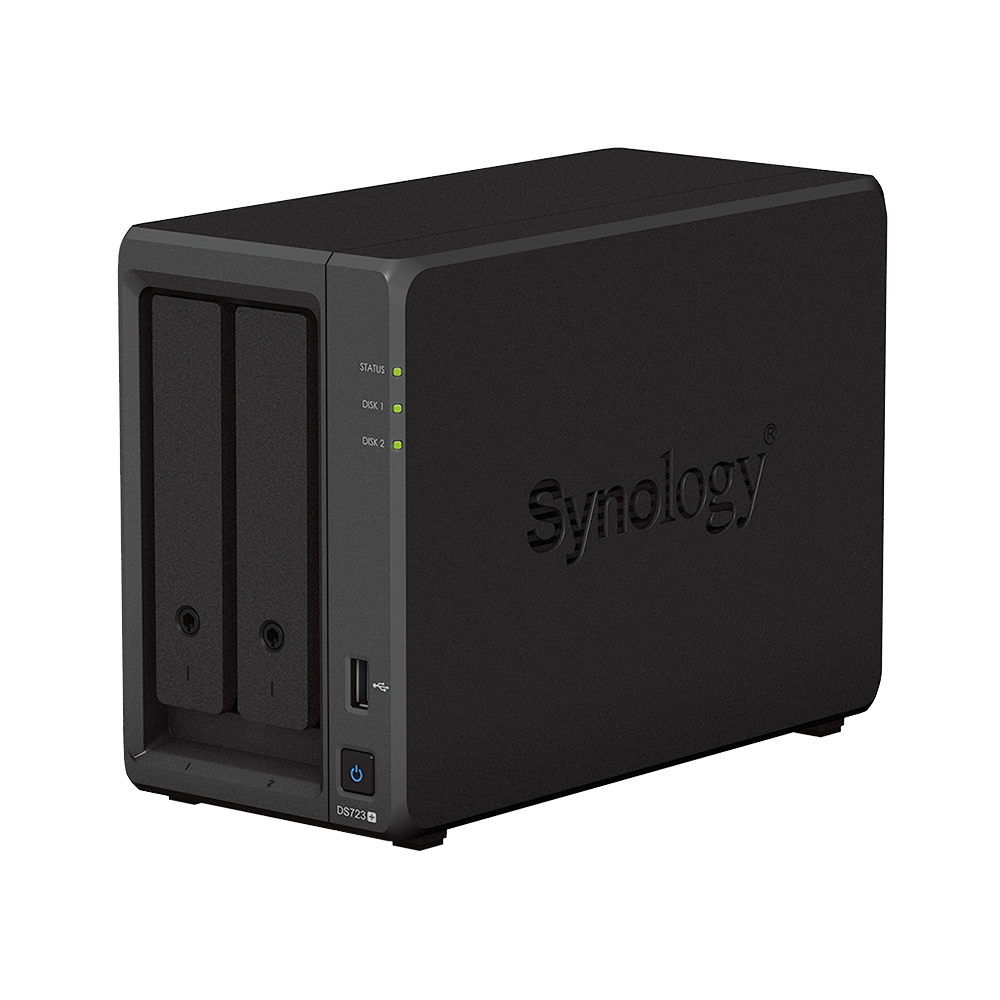

DS723+ can handle more demanding application workloads and a greater number of concurrent users compared to prior-generation systems. Experience faster file indexing in Synology Drive, photo organization in Photos, and concurrent file transfers.1
| Ac input frequency: | 50 / 60 Hz |
|---|---|
| Ac input voltage: | 100 – 240 V |
| Access control list (acl): | Yes |
| Backup features: | Cloud, iSCSI LUN |
| Backup function: | Yes |
| Browser supported: | Google Chrome, Firefox, Microsoft Edge, Safari |
| Built-in display: | No |
| Built-in ftp server: | Yes |
| Built-in speaker(s): | No |
| Cable lock slot: | Yes |
| Cable lock slot type: | Kensington |
| Cables included: | LAN (RJ-45), AC |
| Chassis type: | Tower |
| Concurrent connections: | 500 |
| Cooling type: | Active |
| Copper ethernet cabling technology: | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Depth: | 223 mm |
| Device class: | Home & Home Office |
| Drive bay locking: | Yes |
| Ecc: | Yes |
| Esata ports quantity: | 1 |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 2 |
| Ethernet lan data rate supported (max): | 10000 Mbit/s |
| Ethernet lan data rates: | 1000 Mbit/s, 100, 10 |
| External power adapter: | Yes |
| Fan diameter: | 9.2 cm |
| Height: | 166 mm |
| Hot-swap drive bays: | Yes |
| Installed storage drive type: | No |
| Internal memory: | 2 GB |
| Internal memory type: | DDR4 |
| Iscsi support: | Yes |
| Led indicators: | Yes |
| Link aggregation: | Yes |
| Management protocols: | SNMP |
| Maximum ram supported: | 32 GB |
| Memory form factor: | SO-DIMM |
| Memory slots: | 2 |
| Multilingual support: | Yes |
| Noise level: | 20.7 dB |
| Number of fans: | 1 fan(s) |
| Number of m.2 (m & b) slots: | 2 |
| Number of power supply units: | 1 |
| Number of processors supported: | 1 |
| Number of storage drives supported: | 2 |
| On/off switch: | Yes |
| Online raid expansion: | Yes |
| Online raid migration: | Yes |
| Operating relative humidity (h-h): | 5 – 95% |
| Operating system installed: | DiskStation Manager |
| Operating system version: | 7.1.1 |
| Operating temperature (t-t): | 0 – 40 °C |
| Pci express x2 (gen 3.x) slots: | 1 |
| Power cables quantity: | 1 |
| Power consumption (hdd standby): | 8.62 W |
| Power consumption (typical): | 21.07 W |
| Power supply location: | External |
| Power supply unit (psu) capacity: | 65 W |
| Processor boost frequency: | 3.1 GHz |
| Processor cores: | 2 |
| Processor family: | AMD Ryzen |
| Processor frequency: | 2.6 GHz |
| Processor manufacturer: | AMD |
| Processor model: | R1600 |
| Product colour: | Black |
| Raid levels: | 10, 1, 0, JBOD, 6, 5 |
| Raid support: | Yes |
| Reset button: | Yes |
| Security algorithms: | SSH, SSL/TLS, AES, HTTPS |
| Server operating systems supported: | Windows Server 2019, Windows Server 2016 |
| Storage drive sizes supported: | 3.5, M.2, 2.5 |
| Storage drives installed: | No |
| Storage relative humidity (h-h): | 5 – 95% |
| Storage temperature (t-t): | -20 – 60 °C |
| Supported file systems: | ext4, HFS+, Fat, BTRFS, ext3, NTFS, exFAT |
| Supported network protocols: | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Supported storage drive interfaces: | Serial ATA II, Serial ATA III |
| Supported storage drive types: | HDD & SSD |
| Sustainability certificates: | CE, RoHS |
| Sustainability compliance: | Yes |
| System log: | Yes |
| Type: | NAS |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 1 |
| Usb port: | Yes |
| Video input channels: | 2 channels |
| Wake-on-lan ready: | Yes |
| Weight: | 1.51 kg |
| Width: | 106 mm |
