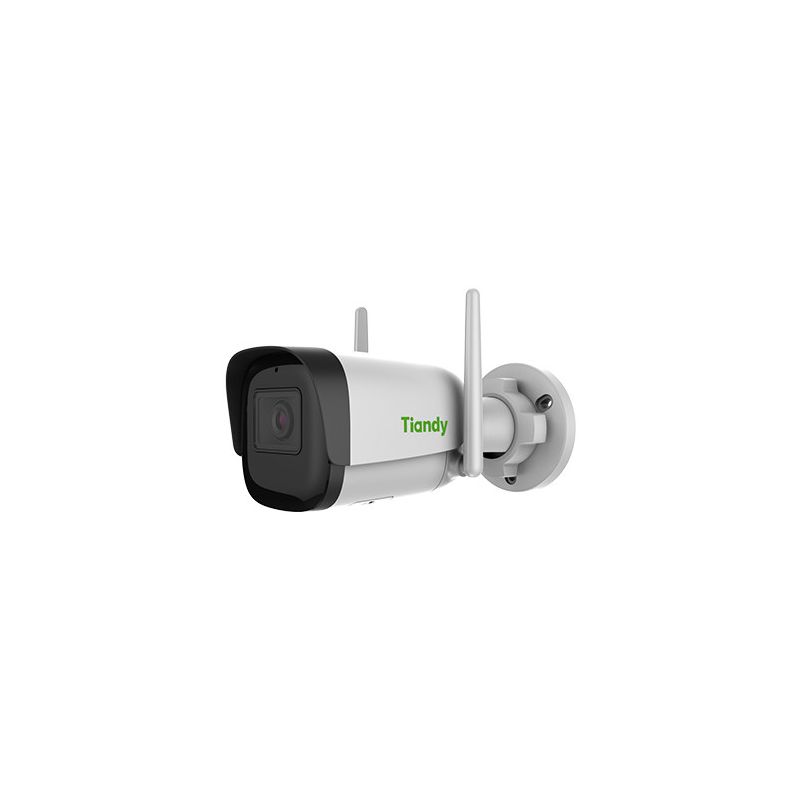

2MP Fixed IR Wi-Fi Bullet Camera (TC-C32WN Spec: I5/Y/WIFI/4mm/V4.1)
Përshkrim
KEY FEATURES
·Metal+Plastic Housing
·Up to 1920×1080@30fps
·S+265/H.265/H.264
·Min. illumination Color: [email protected]
·Smart IR, IR Range: 50m
·Operating Conditions -35℃~65°C, 0~95% RH
·Built-in Mic, SD Card Slot, Reset Button
·Support Wi-Fi
·IP67
Specification
Specification
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.02Lux@ (F2.0, AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | Digital WDR |
| Angle Adjustment | Bracket, pan 0~360°, tilt 0~75°, roate 0~360° |
| Lens | |
| Lens Type | Fixed |
| Focus | 4mm |
| Lens Mount | M12 |
| Aperture | F2.0, Fixed |
| FOV | Horizontal field of view: 83.3° Vertical field of view: 46.8° |
| Illuminator | |
| IR LEDs | 2 |
| IR Range | Up to 50m |
| Wavelength | 850nm |
| White LEDs | N/A |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264 |
| Video Bit Rate | 32Kbps~6Mbps |
| Audio Compression | G.711/G.711U/ADPCM |
| Audio Bit Rate | 8K~48Kbps |
| Image | |
| Max. Resolution | 1920x1080 |
| Main Stream | PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480) |
| NTSC: 30fps (1920×1080, 1280×720, 704×480, 640×480) | |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| NTSC: 30fps (704×480, 704×240, 640×360, 352×240) | |
| Third Stream | N/A |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| ROI | N/A |
| OSD | 16x16, 32x32, adaptable size, Letters Such as Week, Date, Time, Total 1 Regions |
| Picture Overlay | N/A |
| Privacy Mask | Yes, 4 regions |
| Smart Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection, Mask Alarm, IP Address Conflict |
| Video Analytics | Tripwire, Perimeter |
| Early Warning(EW) | N/A |
| Network | |
| Network Storage | Yes(Only Support Tiandy ANR NVR) |
| Protocols | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, IPV4, NTP, UDP, Telnet, ICMP, RTP, RTSP, UPnP |
| System Compatibility | ONVIF(PROFILE S/T/G),SDK,CGI,Milestone,P2P(Mutually exclusive with Profile G) |
| Remote Connection | 2 |
| Client | Easy7, EasyLive |
| Web Version | Web6 |
| Wi-Fi | |
| Wireless Standards | IEEE802.11b/g/n |
| Frequency Range | 2.4GHz ~ 2.4835 GHz |
| Channel Bandwidth | 20/40MHz |
| Protocols | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT |
| Security | WPA-PSK/WPA2-PSK |
| Transfer Rates | 802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps |
| Wireless Range | Up to 50m (The performance varies based on actual environment) |
| Power Consumption | 802.11b: 17±1.5dBm@11Mbps 802.11g: 14±1.5dBm@54Mbps 802.11n: 12.5±1.5dBm@150Mbps |
| Interface | |
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
| Audio I/O | Mic in |
| Alarm I/O | N/A |
| Reset Button | Yes |
| On-board storage | Built-in MicroSD card slot, up to 512 GB |
| General | |
| Web Client Language | 17 languages Chinese, English, Traditional Chinese, Korean, Spanish, Italian, Russian, Turkish, Thai, Polish, French, Dutch, Farsi, Arabic, Hebrew, Vietnamese, German |
| Operating Conditions | -35℃～65℃, 0～95% RH |
| Power Supply | DC 12V±25% |
| Power Consumption | MAX: 6.8W(12V) |
| Protection | IP67 |
| Heater | N/A |
| Dimensions | 161mm×68mm×66mm (6.34×2.68×2.60 inch) |
| Weight | 0.31Kg (0.68lb) |
