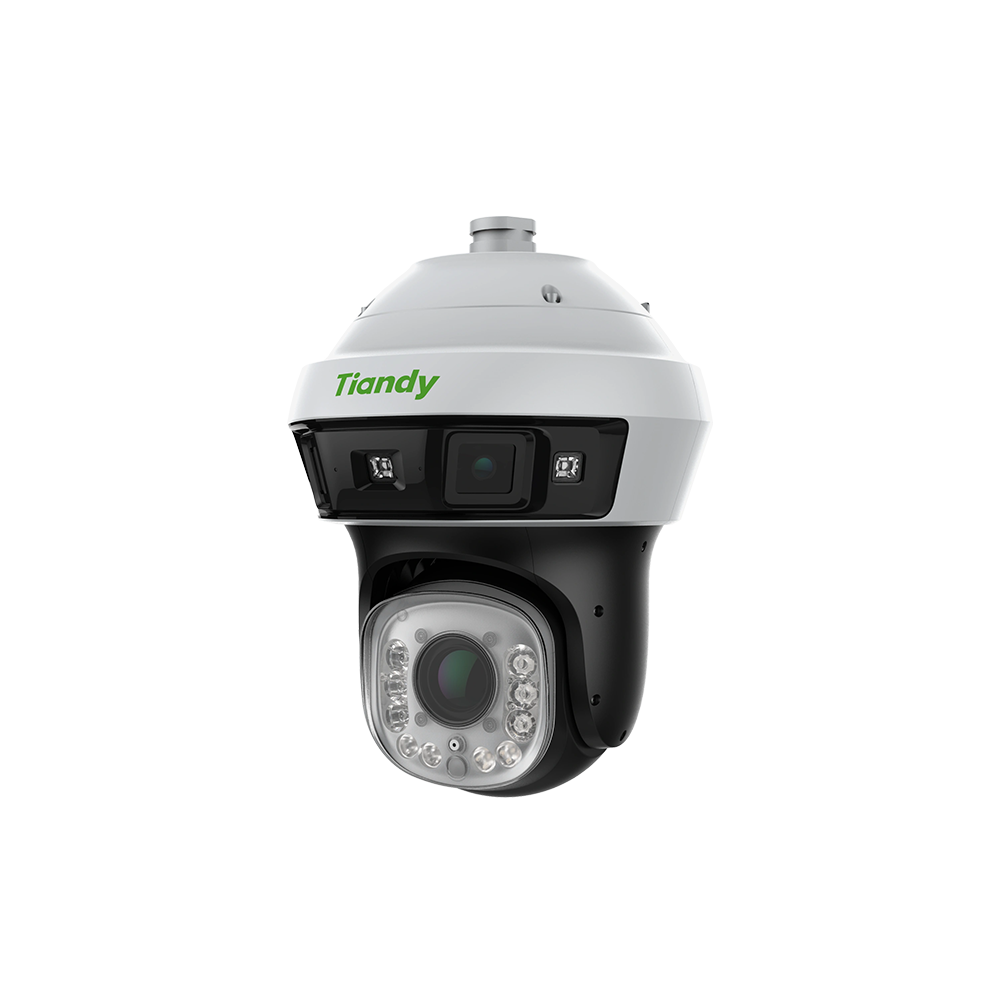

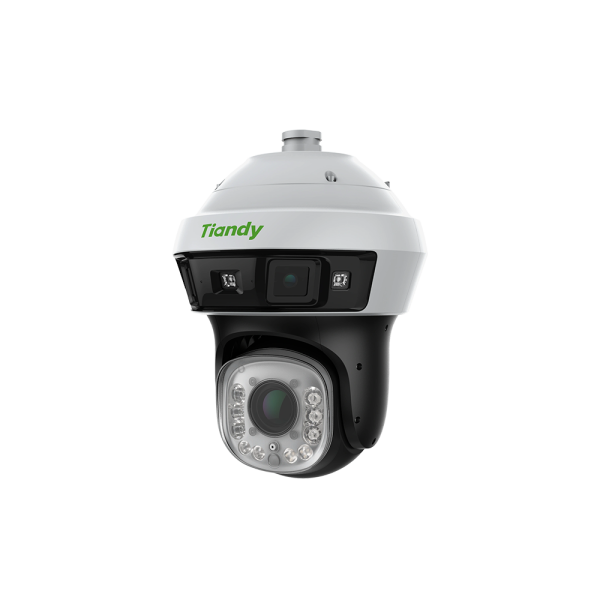

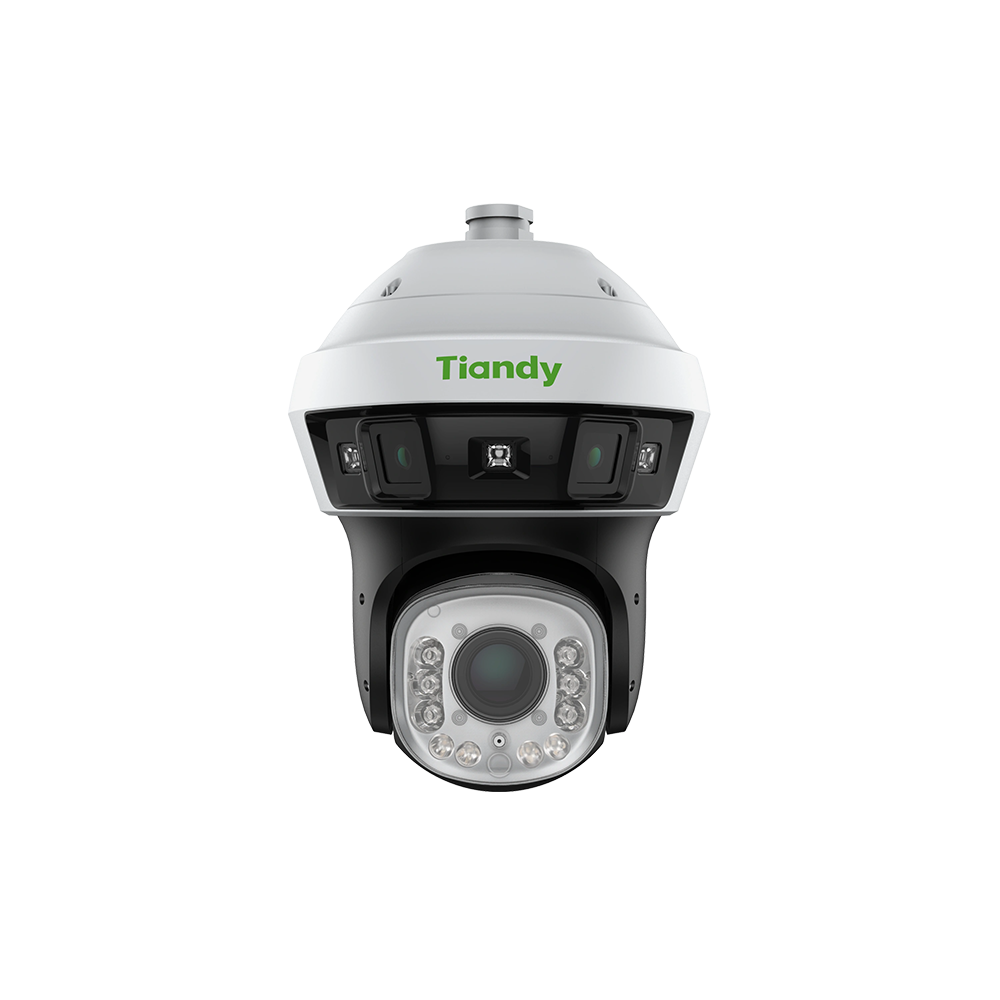

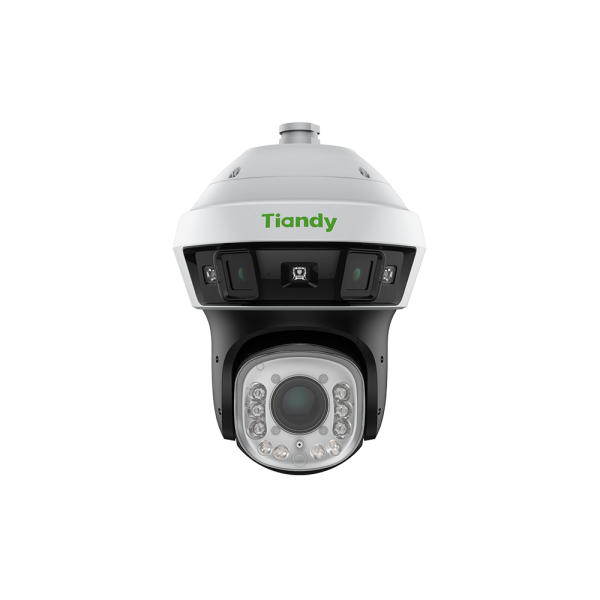

6MP 25X Polar Day Panoramic AEW PTZ Camera (TC-H366V)
6MP 25X Polar Day Panoramic AEW PTZ Camera (TC-H366V) - Image 2

6MP 25X Polar Day Panoramic AEW PTZ Camera (TC-H366V)

TC-H366V
Spec:4MP/25X/IW/E/A/2.8mm

1,024.95 €

Koha e arritjes së produktit : 28/10/2025 - 29/10/2025
  • Panoramic Camera
  • 1/1.8″ CMOS
  • Up to 3840×1568@30fps
  • Horizontal: 190°±10°, Verticle:75±10°
  • Min. illumination Color: [email protected]
  • Detail Camera
  •  Auto-Tracking Early Warning (AEW)
  •  Up to 2560*1440@30fps
  •  Optical zoom: 25x, digital zoom 16x
  •  Support 3D position
  •  IP66
SKU: 9900 Category:
Camera
Image   Sensor Panorama:1/1.8″CMOS
Detail:1/2.7″CMOS
Min.   Illumination Panorama:0.0001lux
Detail:0.001Lux
Shutter   Time 1s~1/100000s
Day&Night Detail:IR-cut   filter with auto switch (ICR)
Smart   IR Yes
WDR Panorama:DWDR
Detail:120dB
S/N Panorama:42dB
Detail:39dB
Lens
Focal   Length Panorama:2.8mm
Detail:4.8mm～120mm
Optical   Zoom 25X
Digital   Zoom 16X
Zoom   Speed ＜5s
Aperture   Range Panorama:F1.0   Detail:F1.67~F3.67
Aperture   Type Panorama:Fixed   Detail:Auto(P-Iris)
Field   of View Panorama:190±10°(H) Detail:58°~2.8°(H); Panorama:75±10°(V) Detail:33.9°~1.7°(V); Panorama:N/A Detail:64.8°~3.3°(D)
Focus   Control Detail:Auto/Semi-auto/Manual
Close   Focus Distance Panorama:2000mm   Detail:500mm~5000mm
DORI   Distance Panorama:   Detect:45.5m Observe:18.1m Recognize:9.1m Identify:4.6m
Detail: Detect:Detect:1980m Observe:785m Recognize:396m Identify:198m
Pan&Tilt
Pan   Range 0~360°
Pan   Speed Manual   Speed:0.1°～200°/s Preset Speed:240°/s
Tilt   Range -16°~90° (Default -3°~90°)
Tilt   Speed Manual   Speed:0.1°～120°/s Preset:180°/s
3D   Position Yes
Preset 500
Cruise 16,up   to 32 presets per cruise
Scan 8
Pattern 8,each   with 600s memory or 1000 orders
Scheduled   Task Preset,Cruise,Scan,Pattern
North   Point Yes(Manual   setting)
Power-off   Memory Yes
Illuminator
IR   LEDs Detail:10
IR   Distance Detail:150m
Wavelength Detail:850nm
IR   Irradiation Angle Yes
White   LEDs Panorama:3
Detail:4
Whitelight   Distance Panorama:30m
Detail:30m
Compression   Standard
Video   Compression S+265/H.265/H.264B/H.264M/H.264H/Motion   JPEG
Video   Bit Rate 32Kbps~16Mbps
Audio   Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio   Sampling Rate 8KHz/32KHz/48KHz
Max.   Resolution Panorama:3840×1568@30fps   Detail:2560×1440@30fps
Main   Stream Panorama:   PAL:25fps(3840×1568,3632×1480) NTSC:30fps(3840×1568,3632×1480)
Detail: PAL:25fps(2560×1440,2304×1296,1920×1080,1280×720) NTSC:30fps(2560×1440,2304×1296,1920×1080,1280×720)
Sub   Stream Panorama:   PAL:25fps(1200×488,960×392) NTSC:30fps(1200×488,960×392)
Detail: PAL:25fps(704×576,704×288,352×288,640×360)   NTSC:30fps(704×480,704×240,352×240,640×360)
Third   Stream Detail:   PAL:25fps(704×576,704×288,352×288,640×480) NTSC:30fps(704×480,704×240,352×240,640×480)
BLC Yes
HLC Yes
AGC Yes
3DNR Yes
White   Balance Auto/Semi-Auto/Manual/Sunshine/Nature   Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance
ROI Panorama:7   fixed rectangles and 1 dynamic tracking focus area for each main and   secondary stream
Detail:7 rectangular 3D fixed focus areas,supporting 1 rectangular dynamic   tracking ROI
OSD Panorama:   5 regions(Each region can have a maximum of 127 characters ,up to 5 lines)   ,16*16/32*32/48*48/64*64/96*96/adaptable size
Detail: 5 regions(Each region can have a maximum of 127 characters ,up to 5   lines),16*16/32*32/48*48/64*64/96*96/adaptable size; Vector/Lattice
Defog Yes
Flip Detail:Normal/Horizontal   Mirror/Vertical Mirror/Inverted Flip
Regional   Exposure Detail:Yes
Regional   Focus Detail:Yes
Demist Yes
Privacy   Mask Panorama:8   regions
Detail:24 regions(Up to 4 blocks in the same scene)
Feature
General   Alarm Panorama:Motion   Detection
Detail:Motion Detection; Panorama:Mask Alarm Detail:Mask Alarm; Alarm Input
Exceptions   Alarm Disk   Full; Disk R/W Error; Recording Exception; IP Address Conflict; MAC Address   Conflict; FTP Server Exception ; Network cable disconnected
Linkage   Method Send   Email; Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture;   Notify Surveillance Center; Alarm Output
Video   Analytics Panorama:Human/Vehicle   Classification,Perimeter,Tripwire,Double Tripwire,Heatmap,Video   Abnormal,Audio Abnormal
Detail:Human/Vehicle Classification,Perimeter,Tripwire,Double Tripwire,Object   Abandon,Object Missing,Loitering,Running,Parking,People Counting,Crowed   Detection,Safety Helmet Detection,On Duty Detection,Video Abnormal,Audio   Abnormal
Auto   Early Warning(AEW) Yes
Auto-Tracking Yes
Face   Mode Detail:Face   Capture
Face   Capture Performance Detect   up to 32 faces at the same scene; Capture up to 16 faces at the same scene
Network
ANR Yes
Protocols HTTP;   HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1\v2\v3; DHCP; DNS; DDNS; Easy   DDNS; NTP; SMTP; TLS v1.2; SSL; 802.1x; QoS; IPv4; IPv6; PPPoE; SSH; Unicast;   Multicast; ARP; RTP; SRTP; FTP; SFTP
System   Compatibility P2P;   ONVIF(Profile S/T/G/M); SDK; CGI; Milestone; RTSP; RTMP
Remote   Connection ≤7
User/Host Up   to 32 users. 4 user levels
Client Easy7   VMS
Moblie   Client EasyLive   Plus
Web IE10+;   Firefox52+; Edge89+; Safari11+; Chrome57+
Interface
Communication   Interface 1*RJ45   (10/100/1000Base-T)
Audio   I/O 1*Input   Impedance 1kΩ,2.0~2.4Vp-p; 1*Output Impedance 600Ω
Alarm   I/O 2*Switching;   1*Switching,Voltage≤DC24V,Current≤1A
Built-in   Speaker 1,4Ω4W
Reset   Button Yes
On-board   Storage Built-in   Micro SD card slot,up to 512 GB
General
Web   Client Language 19   languages:
Simplified Chinese/English/Traditional   Chinese/Spanish/Italian/Korean/Turkish/Russian/Thai/Polish/French/Dutch/Hebrew/Vietnamese/Arabic/German/Ukrainian/Portuguese/Albanian
Operating   Temperature -30℃~65℃(-22℉~149℉)
Operating   Humidity ≤95%RH
Storage   Temperature -30℃~65℃(-22℉~149℉)
Storage   Humidity 10%~95%RH(non-condensing)
Power   Supply AC24V±25%\DC24V±10%; PoE:IEEE 802.3bt
Power   Consumption 29W(IR   OFF) ; 55W(IR ON)
Protection Surge4000V;   ESD6000V; IP66
Material Metal+plastic
Boundary   Dimensions 298mm(D)*375mm(H)
Package   Dimensions 385(L)350(W)540(H)mm
GrossWeight 9.41kg
NetWeight 5.33kg
