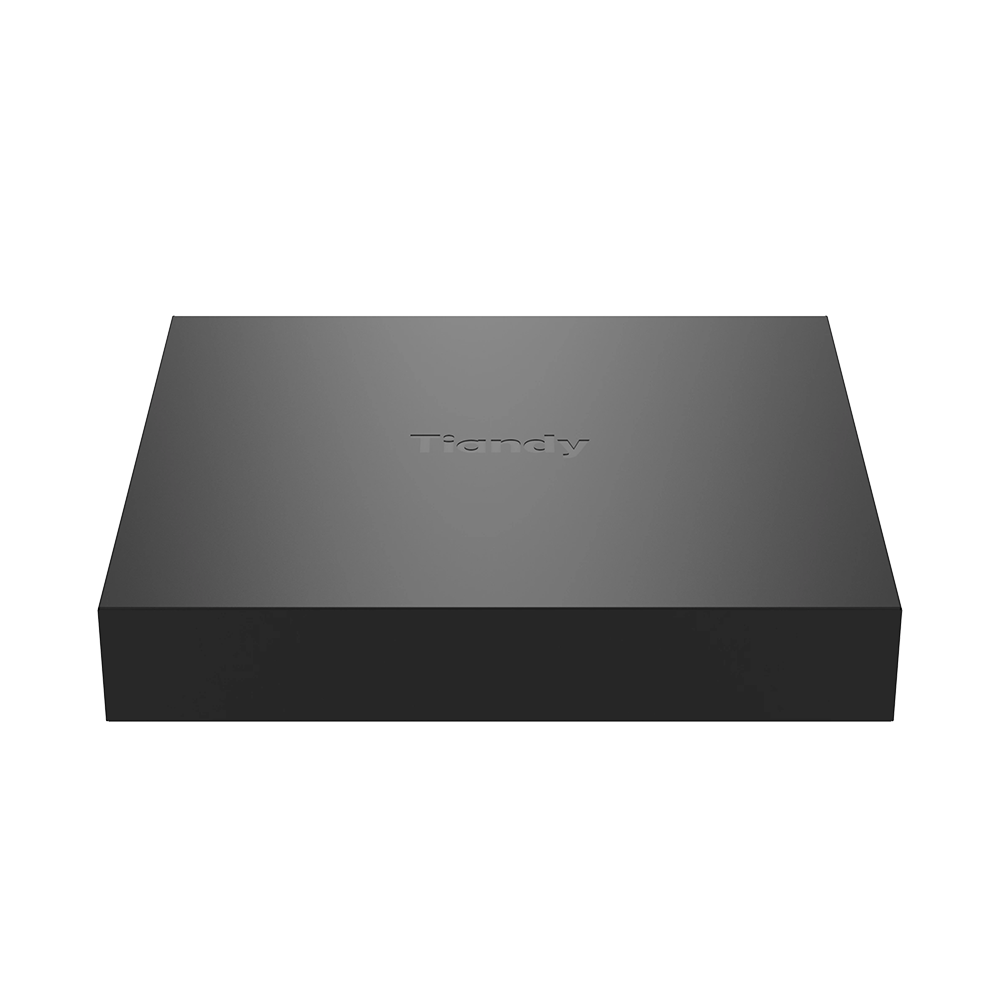

Name: 1HDD 20ch NVR TC-R3120 2MC
Brand: Tiandy
SKU: 100058
Availability: InStock

1HDD 20ch NVR TC-R3120 2MC

134.52 €

TC-R3120
2MC

Koha e arritjes së produktit : Kor 7, 2026 - Kor 8, 2026

Kodi i produktit : 100058 Kategori: AI, NVR, NVR 20ch+ Brand: Tiandy

Category	Specification
Access Channels	20
Incoming Bandwidth	100 Mbps
Outgoing Bandwidth	80 Mbps
Resolution Support	16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Preview Decoding	8MP×2, 6MP×2, 5MP×3, 4MP×4, 3MP×5, 1080P×8, 720P×16, 4CIF×20
Playback Decoding	8MP×2, 6MP×2, 5MP×3, 4MP×4, 3MP×5, 1080P×8, 720P×16, 4CIF×16
Third-party Camera Access	ONVIF(Profile S/T), RTSP
HDMI Output	Up to 4K, multiple resolutions
VGA Output	Up to 1080P, multiple resolutions
Multi-screen Display	VGA: 1~20D, HDMI: 1~20D
Audio Input/Output	Input: 1×3.5mm, Output: 1×RCA, Two-way: 1×3.5mm
Video Compression	S+265, H.265, S+264, H.264
Audio Compression	G.711A, G.711U, AAC, ADPCM_D
Stream Type	Video / Video & Audio
Network Protocols	802.1X, ARP, DDNS, DHCP, DNS, Easy DDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4/IPv6, Multicast, NFS, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMB/CIFS, SMTP, SNMP v1/v2/v3, SRTP, SSH, SSL, TLSv1.2, TCP, UDP, Unicast, UPnP
Mobile Client	EasyLive Plus (Android, iOS)
System Compatibility	ONVIF(Profile S/T/G), RTSP, CGI, SDK, P2P
Web Access	IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+
Recording	Multi-channel 16, Modes: Manual, Alarm, Schedule
Storage	Local HDD, 1×SATA up to 10TB
Dual Stream Record	Yes
Alarm	Motion, Mask, IPC/NVR Input, Video/Network/Disk Errors, Voltage, RTC, IP/MAC Conflict, Disk Overload
Intelligent Analytics	AI by Camera: Tripwire, Perimeter, Running, Parking, Crowd, Helmet, Face Detection, Human Temp., People Counting; AI by NVR: Face Detection, Recognition, Smart Motion Detection
Face Library	Up to 10 libraries, 20,000 base images
Face Comparison	Yes
PoE Ports	4×RJ45, 10/100 Mbps, 30W per port, IEEE 802.3 af/at
Power Supply	DC12V, <10W (without HDD & PoE)
Weight	Net: 1.6 kg, Gross: 2.8 kg
Dimensions (L×W×H)	341×280×47 mm
Operating Temp / Humidity	-10℃~+55℃, 10%~90% RH
Package	NVR, Screws, Mouse, DC12V 3A Adapter, EU Power Cord, Manual, Parts List
