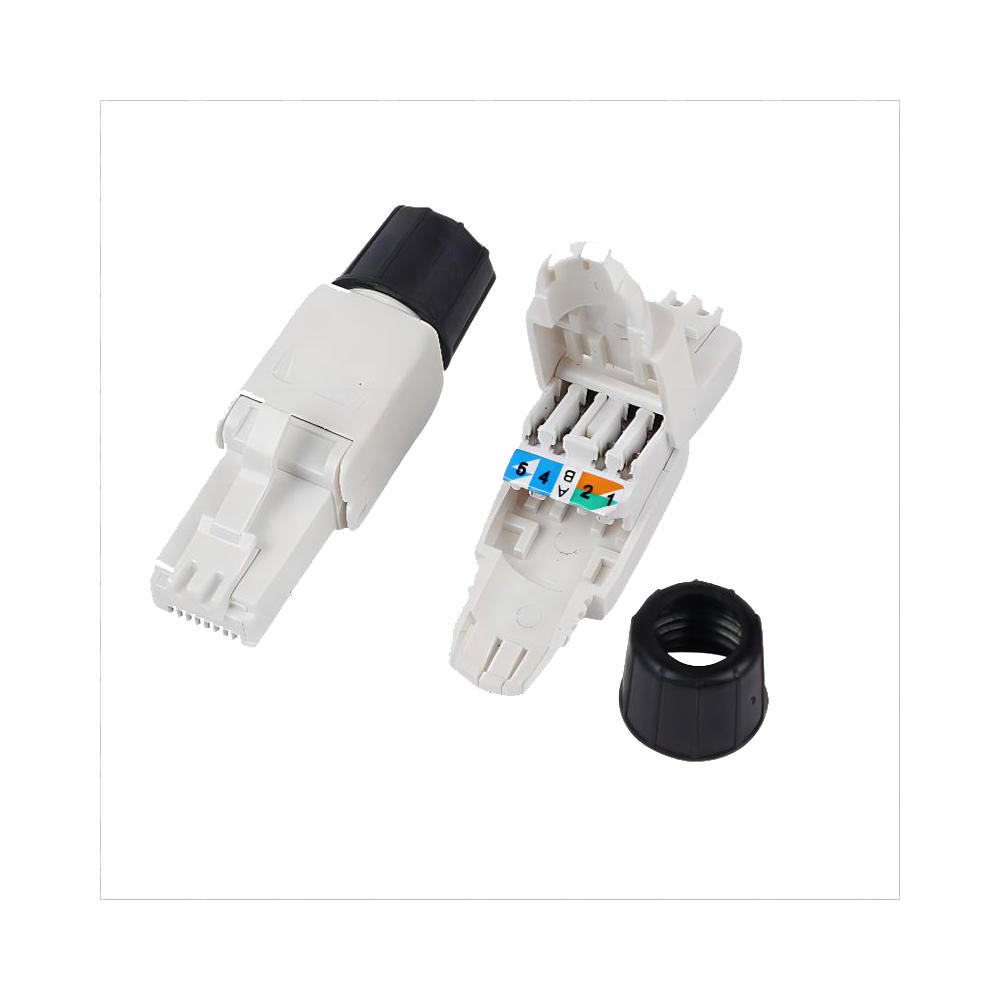

Toolless Plug/CAT6A/UTP/G40U

Technical specifications

Type:

1. Cat.6A RJ45 unshielded toolless plug
2. Colour: white+black
3. RoHS, REACH compliant

Cable matched:

1. Solid and stranded
2. 22AWG/23AWG/24AWG

Electrical:

1. Contact resistance: 20m ohm
2. Insulation resistance: <= 500M ohm @100 V DC
3. Withstand voltage: DC1000V AC700V RMS 60Hz, 1min
4. Cat6A permanent link: conform to ANSI/TIA/EIA 568B.2-10

Environmental:

1. Storage: -40° / +70°
2. Operation: -10° / +60°

Mechanical:

1. Plastic material: new PC
2. Gold pins: phosphor bronze, gold plating 3U’’
3. Terminal pins: phosphor bronze, zin plating
4. RJ45 contact life: 750 times min
5. IDC terminal life: 250 times min
