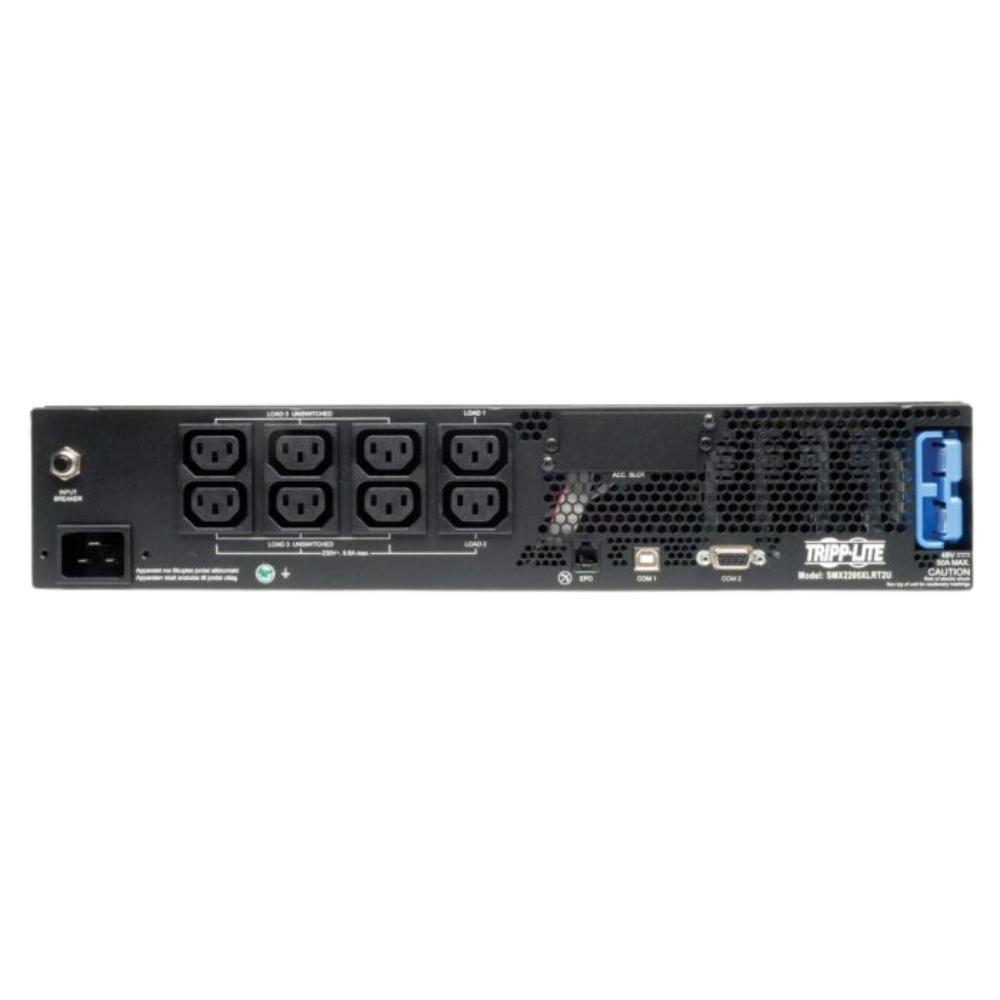

TrippLite UPS 2200VA / 1920 Watts

SmartPro, Outlets: 8x C13, Input: 158 – 278V, Output: 230V, AVR, RM 2U, Ports: USB, Serial, EPO, Shutdown Software, Slot for SNMP/wEB Interface

Disponueshmëria : Në stok
  • 2.2kVA / 2200VA / 1920W line interactive 2U rack/tower UPS, Sine Wave
  • Extended runtime options up to 1600W, 0.9 Power Factor, Interactive LCD interface
  • 98% line-mode efficiency, 2 switched load banks, 4 post mounting kit
  • USB, RS232, EPO and slot for network management card options
  • 230V C20 inlet, 8 C13 outlets
  • Optional WEBCARDLX with latest version of PADM20 supports Auto Probe feature
    OVERVIEW
    UPC Code 037332124562
    UPS Type Line-Interactive
    INPUT
    Rated input current (Maximum Load) 10.7A
    Nominal Input Voltage(s) Supported 230V AC
    UPS Input Connection Type C20 inlet
    UPS Input Connection Description IEC320-C20 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles
    Input Circuit Breakers 15A
    Input Phase Single-Phase
    OUTPUT
    Output Volt Amp Capacity (VA) 2200
    Output Capacity (kVA) 2.20
    Output Watt Capacity (Watts) 1920
    Output kW Capacity (kW) 1.92
    Power Factor 0.87
    Nominal Voltage Details 230V nominal output in battery mode
    Frequency Compatibility 50 / 60 Hz
    Frequency Compatibility Details Automatic frequency selection
    Output Voltage Regulation (Line Mode) -15%, +6%
    Output Voltage Regulation (Battery Mode) +/- 5%
    Included Output Power Cables Includes 3 C13 to C14 output power cables
    Load Management Receptacles Two switchable single-outlet C13 load banks
    Hot-Swap PDU options PDUBHV20 (2U / 6 C13, 2 C19 outlets)
    Output AC Waveform (AC Mode) Sine wave
    Output AC Waveform (Battery Mode) Pure Sine wave
    Nominal Output Voltage(s) Supported 220V; 230V; 240V
    Output Receptacles (8) C13
    Individually Controllable Load Banks Yes
    BATTERY
    Battery Type Valve Regulated Lead Acid (VRLA)
    Full Load Runtime (min.) 5 min. (1920w)
    Half Load Runtime (min.) 11.9 min. (960w)
    Expandable Battery Runtime Extended runtime supported via optional external battery packs
    Expandable Runtime Yes
    External Battery Pack Compatibility  BP48V24-2U  (limit 1);  BP48V60RT-3U  (multi-pack compatible);  BP48V27-2US  (multi-pack compatible)
    DC System Voltage (VDC) 48
    Battery Recharge Rate (Included Batteries) Less than 4.5 hours from 10% to 90% (typical, full load discharge)
    Battery Access Front panel battery access door
    Internal UPS Replacement Battery Cartridge  RBC94-2U
    Battery Replacement Description Hot-swappable, user replaceable batteries
    VOLTAGE REGULATION
    Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 158 to 278
    Overvoltage Correction Voltage reduction of 12% applies when input is between 244-278V
    Undervoltage Correction Voltage boost of 12% applies when input voltage is between 183-206V
    Severe Undervoltage Correction Voltage boost of 24% applies when input voltage is between 158-182V
    USER INTERFACE, ALERTS & CONTROLS
    Front Panel LCD Display Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
    Switches 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
    Alarm Cancel Operation Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
    Audible Alarm Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
    SURGE / NOISE SUPPRESSION
    UPS AC Suppression Joule Rating 350
    UPS AC Suppression Response Time Instantaneous
    EMI / RFI AC Noise Suppression Yes
    PHYSICAL
    Primary Form Factor Rackmount
    Rack Height 2U
    Cooling Method Fan
    Included Mounting Accessory Description Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
    Installation Form Factors Supported with Included Accessories 4 post 19 inch rackmount
    Installation Form Factors Supported with Optional Accessories 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
    Minimum Required Rack Depth with External Battery Pack (cm) 67
    Minimum Required Rack Depth with External Battery Pack (in.) 26.5
    Minimum Required Rack Depth without External Battery Pack (cm) 55
    Minimum Required Rack Depth without External Battery Pack (in.) 21.75
    Optional Mounting Accessory Notes Optional  2-9USTAND  enables upright tower UPS placement;  2POSTRMKITWM  enables wall-mount and 2-post rackmount installation;  4POSTRAILKITWM  enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm);  UPSHDEARKIT  enables installation in 2 or 4-post racks using front vertical rails only, without rear support
    Primary UPS Depth (mm) 495
    Primary UPS Height (mm) 89
    Primary UPS Width (mm) 445
    Shipping Dimensions (hwd / cm) 22.10 x 61.47 x 54.61
    Shipping Weight (kg) 36.76
    UPS Housing Material Steel
    UPS Power Module Dimensions (hwd, cm) 8.89 x 44.45 x 49.53
    UPS Power Module Weight (kg) 31.18
    ENVIRONMENTAL
    Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
    Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
    Relative Humidity 0 to 95%, non-condensing
    AC Mode BTU / Hr. (Full Load) 161
    AC Mode Efficiency Rating (100% Load) 98%
    Audible Noise 45 dBA maximum, front side 1m
    COMMUNICATIONS
    Network Management Cards SNMPWEBCARD;  TLNETCARD ;  WEBCARDLX ;  RELAYIOCARD
    Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions
    PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at https://www.tripplite.com/poweralert
    Communications Cable USB, DB9 and EPO cabling included
    WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
    Network Management Card Description Network management card optional
    Communications Interface DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)
    LINE / BATTERY TRANSFER
    Transfer Time 6 ms. (AC to DC) / 1 ms. (DC to AC)
    Low Voltage Transfer to Battery Power (Setpoint) 158V
    High Voltage Transfer to Battery Power (Setpoint) 278V
    FEATURES & SPECIFICATIONS
    Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
    High Availability UPS Features Auto Probe Monitoring and Reboot (requires WEBCARDLX); Automatic Voltage Regulation (AVR); Expandable battery backup; Hot swappable batteries; Remote management; Sine wave output; Surge/noise protection
    Green Energy-Saving Features Greater than 95% efficiency – GREEN UPS; Individually controllable load banks
    Grounding Lug Back panel grounding lug
    STANDARDS & COMPLIANCE
    Product Certifications GOST (Russia)
    Product Compliance RoHS; CE (Europe)
