DESCRIPTION

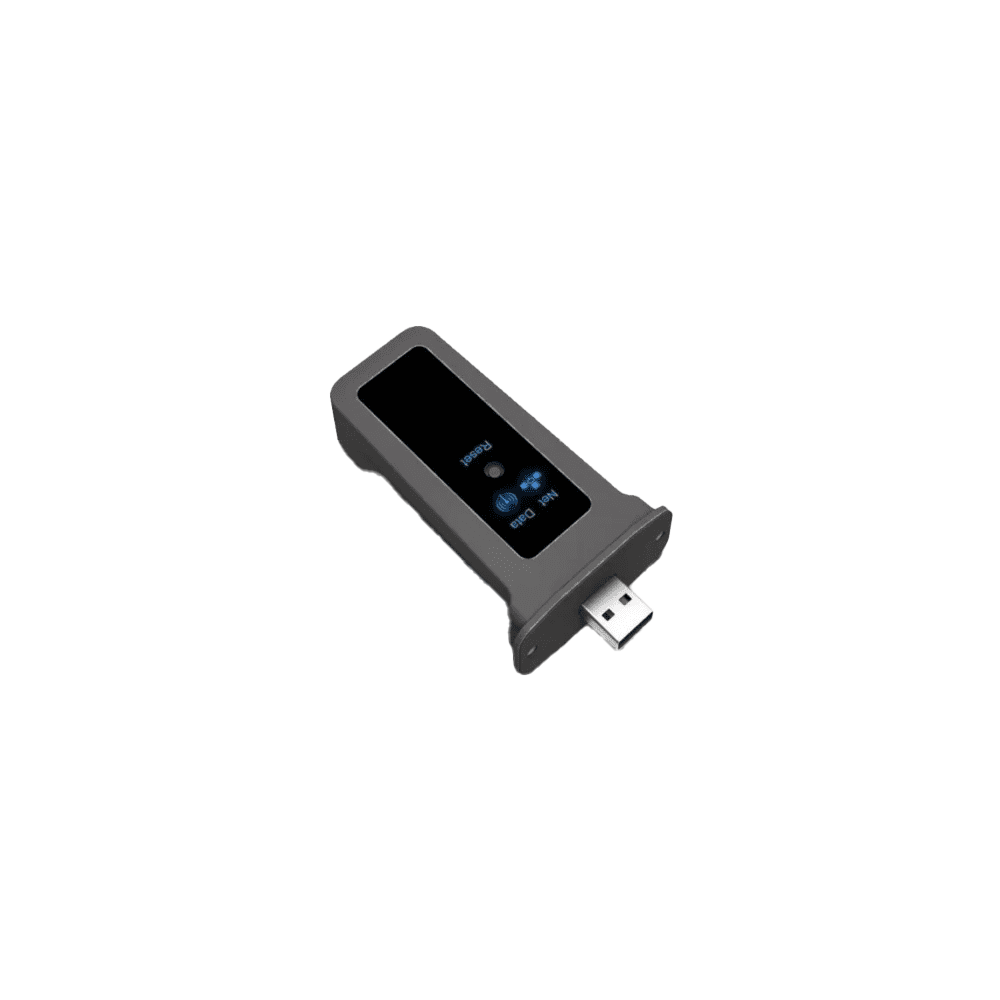

The WIFI PLUG14 dongle for Wirkos inverters can enable wireless communication between off-grid inverters and monitoring platform.
in addition, Users have complete and remote monitoring and controlling experience for inverters when combining WiFi module with WatchPower APP.
Also, available for both iOS and Android based device. All data loggers and parameters are saved in iCloud.
Technical specifications:
Maximum current: 500 mA (5V)
Input voltage range: DC 5V ~ DC 28 V
Interface: USB-A
Remote communication: WiFi
Baud rate: 9600 bps
Data collection period: 1.5 s
Operating frequency: 2.412 ~ 2.484 GHz
Communication protocol: IEEE 802.11b/g/n
Maximum transfer rate: 72 Mbps
Signal range: 100 m in the area without obstruction
Parameter settings: web server / application / remote server
Firmware update: remote web server
Application layer protocol: Modbus-RTU
Connection functions: mobile app connecting monitoring, parameter configuration
Dimensions (W × H × D): 54 × 99 (109 incl. plug) × 28 mm
Weight: 40g
Storage temperature: -40 ° C ~ 90 ° C
Guaranteed compatibility: Wirkos Solar Inverters
