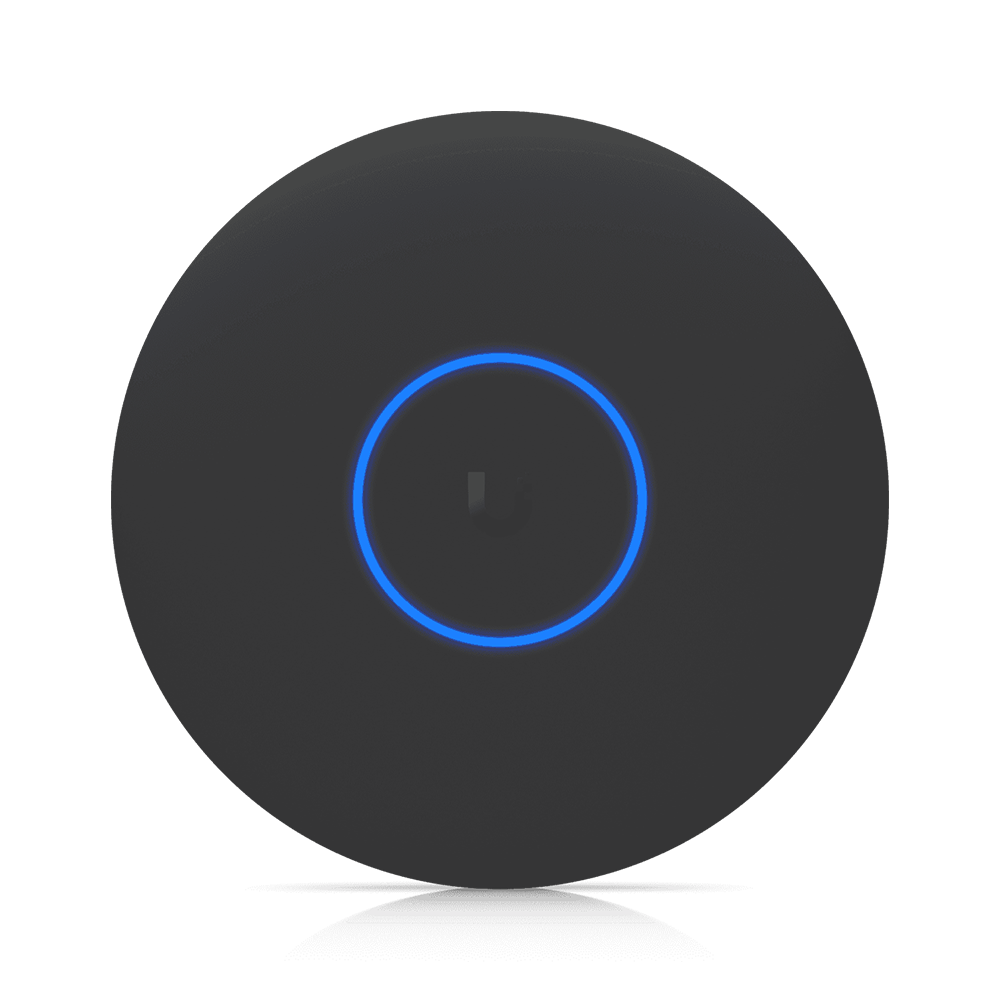

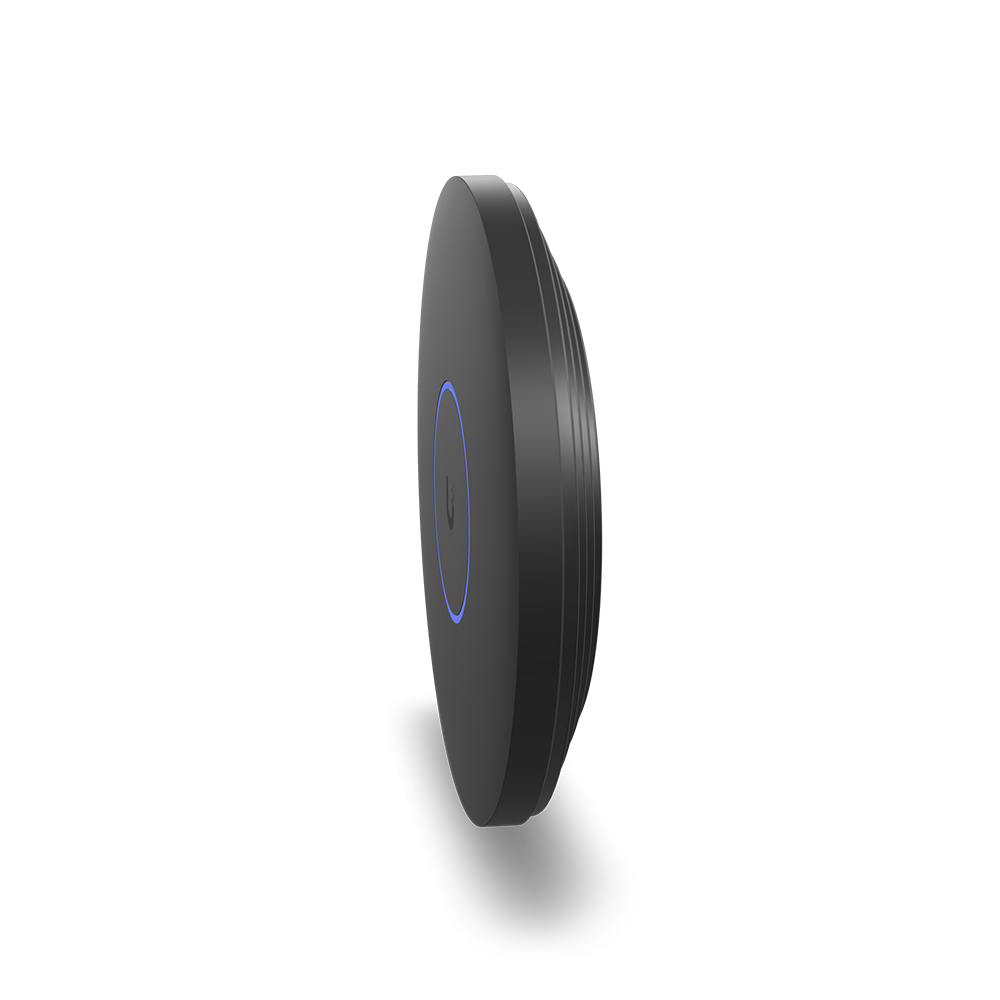

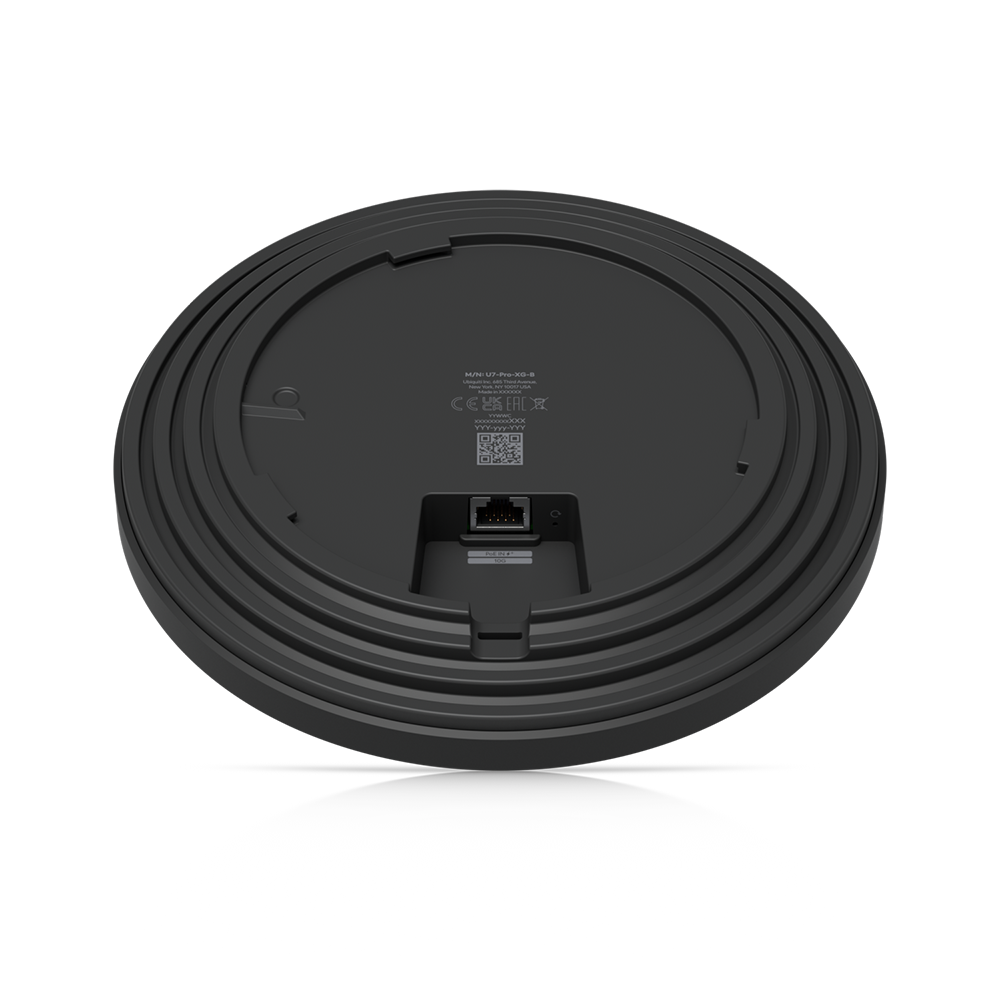

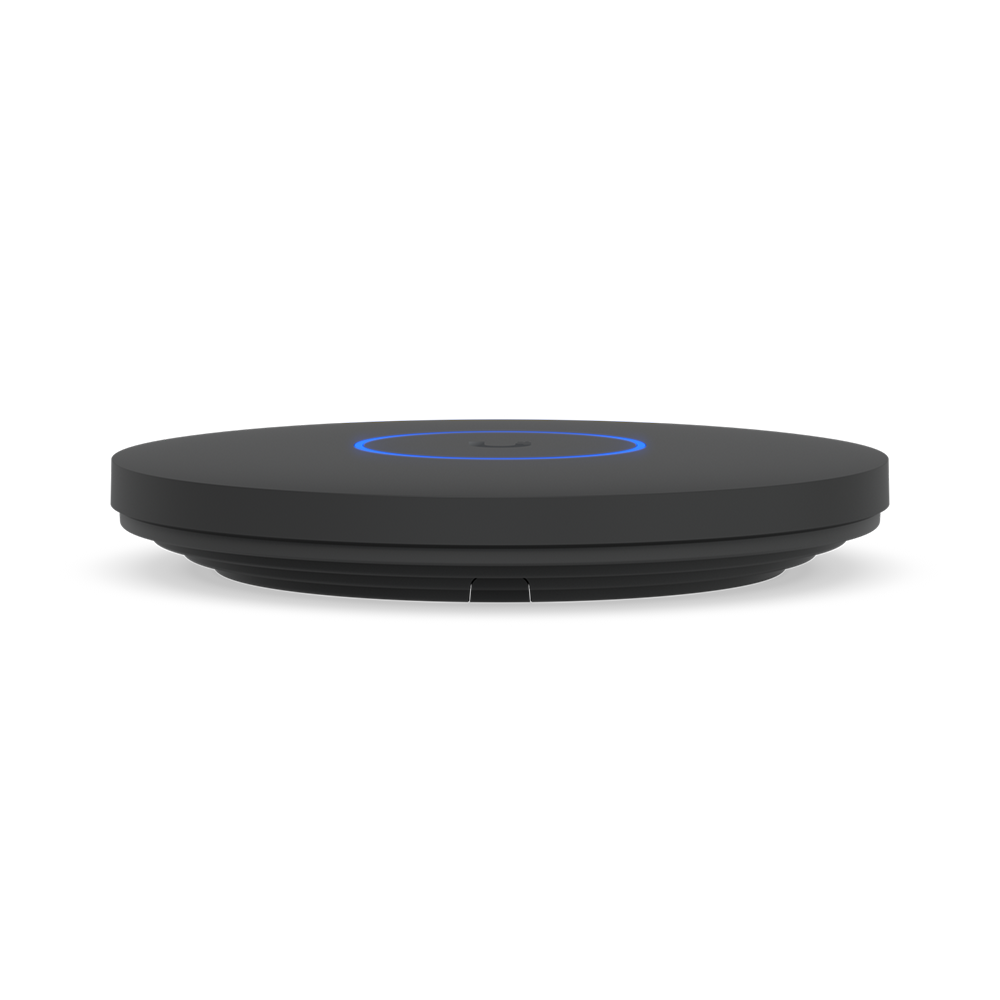

UniFi U7 Pro XG
248.80 €
U7-Pro-XG-B
UniFi
Përshkrim
Specifications
| Specification | Details |
|---|---|
| Model | UniFi U7 Pro XG |
| WiFi Standard | WiFi 7 / 802.11be |
| Spatial Streams | 6 |
| Coverage Area | 140 m² |
| Max Client Count | 300+ |
| Uplink | 10 GbE RJ45 |
| Power Method | PoE+ |
| Max Power Consumption | 22W |
| Mounting | Ceiling / Wall |
| Dimensions | Ø206 × 32.5 mm |
| Weight | 750 g |
| MIMO | 2×2 DL/UL MU-MIMO on 6GHz, 5GHz, 2.4GHz |
| 6GHz Max Data Rate | 5.8 Gbps |
| 5GHz Max Data Rate | 4.3 Gbps |
| 2.4GHz Max Data Rate | 688 Mbps |
| Antenna Gain | 6GHz: 6 dBi / 5GHz: 5 dBi / 2.4GHz: 4 dBi |
| Max TX Power | 6GHz: 24 dBm / 5GHz: 26 dBm / 2.4GHz: 23 dBm |
| Max BSSIDs | 8 per radio |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| Fast Roaming | 802.11r / 802.11k / 802.11v |
| Captive Portal | Yes |
| Guest Network Isolation | Yes |
| PPSK | Yes |
| VLAN Support | Dynamic RADIUS-assigned VLAN |
| Speed Limiting | Yes |
| Client Isolation | Yes |
| RADIUS over TLS | Yes |
| Networking Interface | 1 × 10 GbE RJ45 |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel, galvanized steel |
| LED | White / Blue system LED |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel |
| Operating Temperature | -30°C to 40°C |
| Operating Humidity | 5% to 95% non-condensing |
| Management | UniFi Network |
| Software Requirement | UniFi Network 9.0.114+ / 9.1.120+ depending on color |
