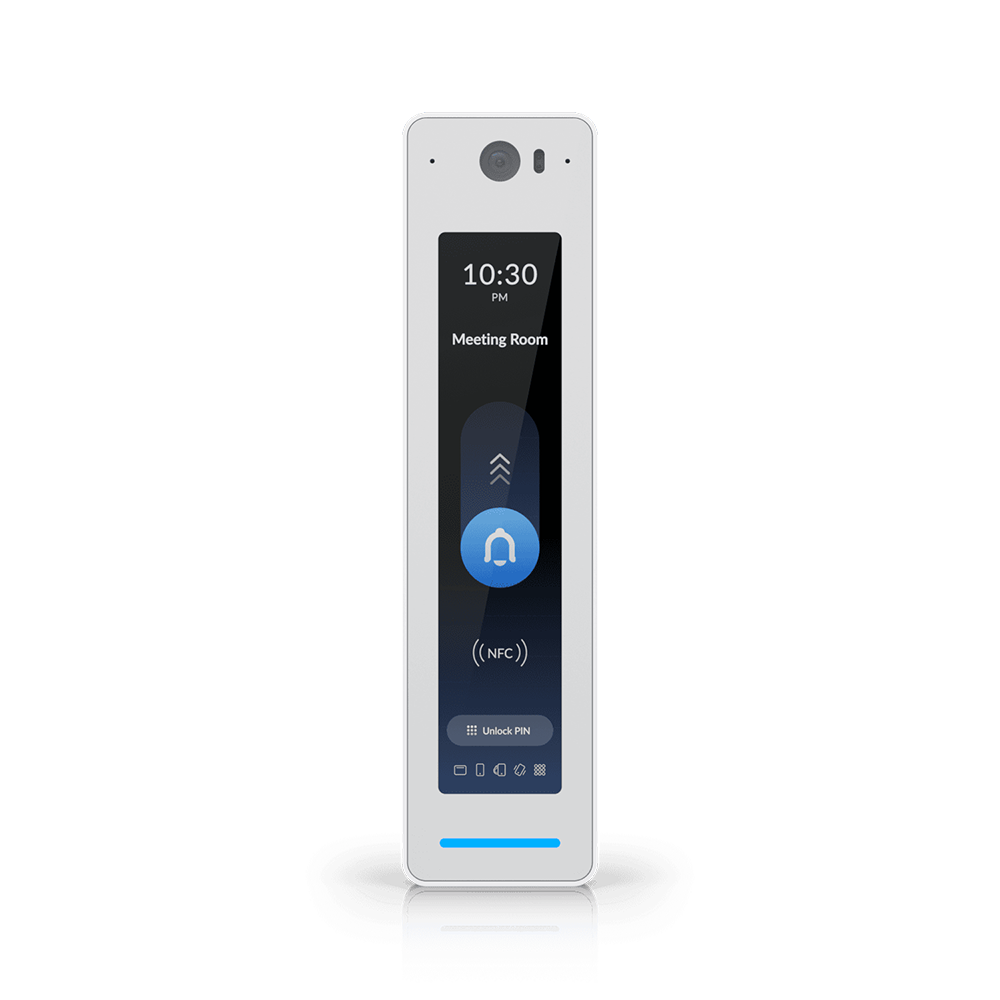

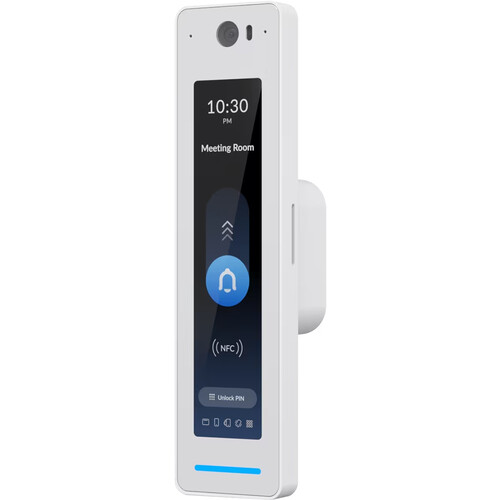

G3 Reader Pro (UA-G3-Pro-W)
414.43 €
UA-G3-Pro-W
Përshkrim
Third-generation, indoor/outdoor NFC reader and intercom with Touch Pass support.
Specifications
| Category | Specification | Value |
|---|---|---|
| Overview | Dimensions | 160 × 40.4 × 40.55 mm (6.3 × 1.59 × 1.6") |
| Integrated Camera | ✓ | |
| NFC Card & Keyfob Access | ✓ | |
| PIN Access | ✓ | |
| Apple / Google Wallet | ✓ | |
| Mobile Unlock | ✓ | |
| Two-Way Intercom & Doorbell | ✓ | |
| NDAA Compliant | ✓ | |
| UL 294 Level | Level I (Destructive, Line, Endurance, Standby) | |
| Weatherproofing | IP55 | |
| Mechanical | Weight | 136 g (4.8 oz) |
| Enclosure Material | Polycarbonate, glass | |
| Mount Material | Aluminum alloy | |
| Mounting | Wall & gang-box (included); angle & junction box (optional) | |
| Hardware | Indoor / Outdoor Use | Yes |
| Networking Interface | 1 × GbE RJ45 | |
| Connectivity | BLE 4.2, NFC | |
| Power Method | PoE | |
| Supported Voltage | 48V DC | |
| Max Power Consumption | 6 W | |
| ESD / EMP Protection | Air ±15 kV, Contact ±8 kV | |
| Optics | Camera Resolution | 12 MP (3072 × 4096) |
| Field of View | H 98.6° / V 125.7° / D 157.8° | |
| Sensors | Proximity Sensor | ✓ |
| Display | Size | 120 mm (4.7") |
| Technology | Capacitive touch | |
| Resolution | 1280 × 286 px | |
| Brightness | 480 nits (typical) | |
| Orientation | Portrait | |
| Audio | Microphone | ✓ |
| Speaker | ✓ | |
| Interface | LEDs | R / G / B / W / Amber |
| Button | Factory reset | |
| NFC | Frequency | 13.56 MHz |
| Read Range | < 30 mm (1.18") | |
| Standards | ISO/IEC 14443 A/B, 15693, 18092 | |
| Supported Tags | MIFARE Classic / DESFire, Sony FeliCa (ID), NFC T1–T5 | |
| Cabling | PoE Cabling | Minimum Cat 5e |
| Environment | Operating Temperature (Device) | −30 °C to 45 °C (−22 °F to 113 °F) |
| Operating Temperature (Display) | −10 °C to 45 °C (14 °F to 113 °F) | |
| Operating Humidity | 5% – 90% non-condensing | |
| Compliance | Certifications | CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1 |
| CAN/ULC Grade | Grade I | |
| Software | Management Application | Access |
| Software Portal | https://unifi.ui.com | |
| Document | Reference | UA-G3-Pro-W / UA-G3-Pro-B, V01 |
