Name: UniFi Cloud Gateway Max UCG-Max – Gateway
SKU: 99023
Availability: InStock

UniFi Cloud Gateway Max UCG-Max – Gateway

281.35 €

UCG-Max
Unifi

Koha e arritjes së produktit : Maj 25, 2026 - Maj 26, 2026

Specification	Details
Model	UniFi Cloud Gateway Max
Device Type	UniFi Gateway / Console / NVR
Dimensions	141.8 × 127.6 × 30 mm
Form Factor	Compact Desktop
Managed UniFi Devices	30+
Managed Cameras	15 HD / 8 2K / 5 4K
Managed Access Hubs	50
Simultaneous Users	300+
UniFi Apps	Network, Protect, Access, Talk, Connect
WAN Port	1 × 2.5GbE RJ45
Max WAN Port Count	4
Port Layout	5 × 2.5GbE RJ45
IDS / IPS Throughput	2.3 Gbps
Firewall	Stateful Firewall, Layer 7 Firewall
Security Features	DPI, IPS/IDS, Content Filtering, Ad Blocking
IDS/IPS Signatures	55,000+ with CyberSecure
VLAN Segmentation	Yes
VPN Support	Site Magic, IPsec, OpenVPN, WireGuard, L2TP, Teleport
Multi-WAN Load Balancing	Yes
Dynamic Routing	OSPF
RADIUS	Integrated RADIUS, RadSec
NVR Storage	NVMe SSD up to 2TB
Processor	Quad-core ARM Cortex-A53, 1.5GHz
System Memory	3GB
Max Power Consumption	16.1W
Power Method	USB-C 5V DC / 5A
Power Supply	USB-C Adapter included
LCM Display	0.96" Status Display
Management	Ethernet, Bluetooth
Weight Without SSD	460 g
Weight With SSD	519 g
Enclosure Material	Polycarbonate
ESD/EMP Protection	Air ±8kV / Contact ±4kV
Operating Temperature	-10°C to 40°C
Operating Humidity	5% to 95% non-condensing
NDAA Compliant	Yes
Certifications	CE, FCC, IC, Anatel, SRRC
Mobile App Requirement	UniFi iOS / Android 10.17.2+

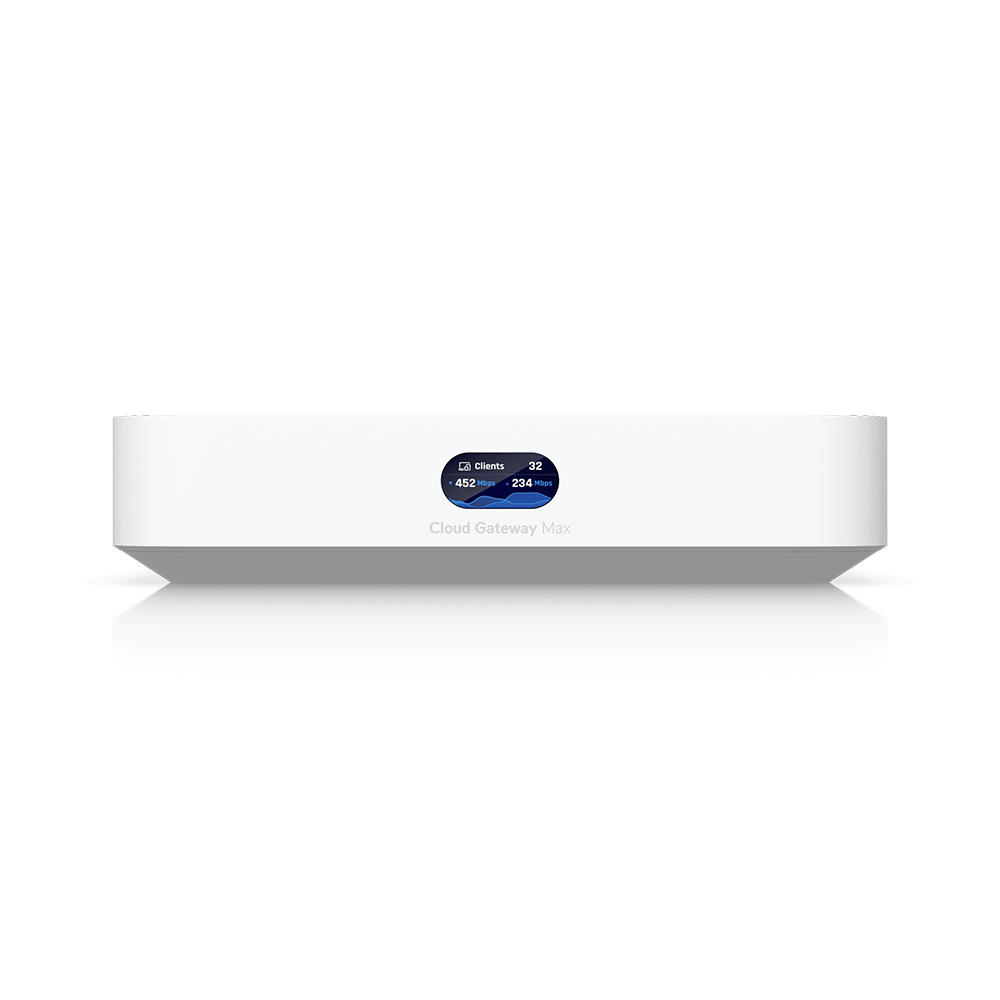

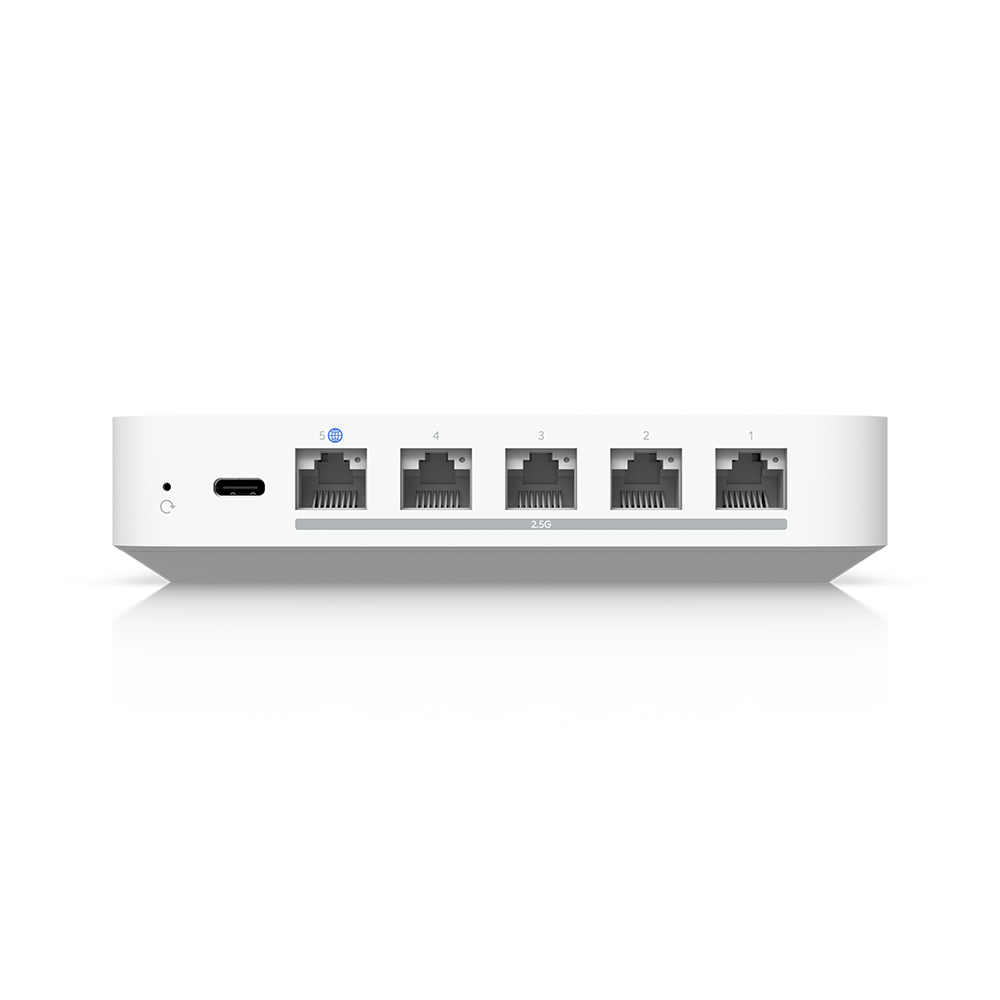

UniFi Cloud Gateway Max UCG-Max – Gateway - Figura 1

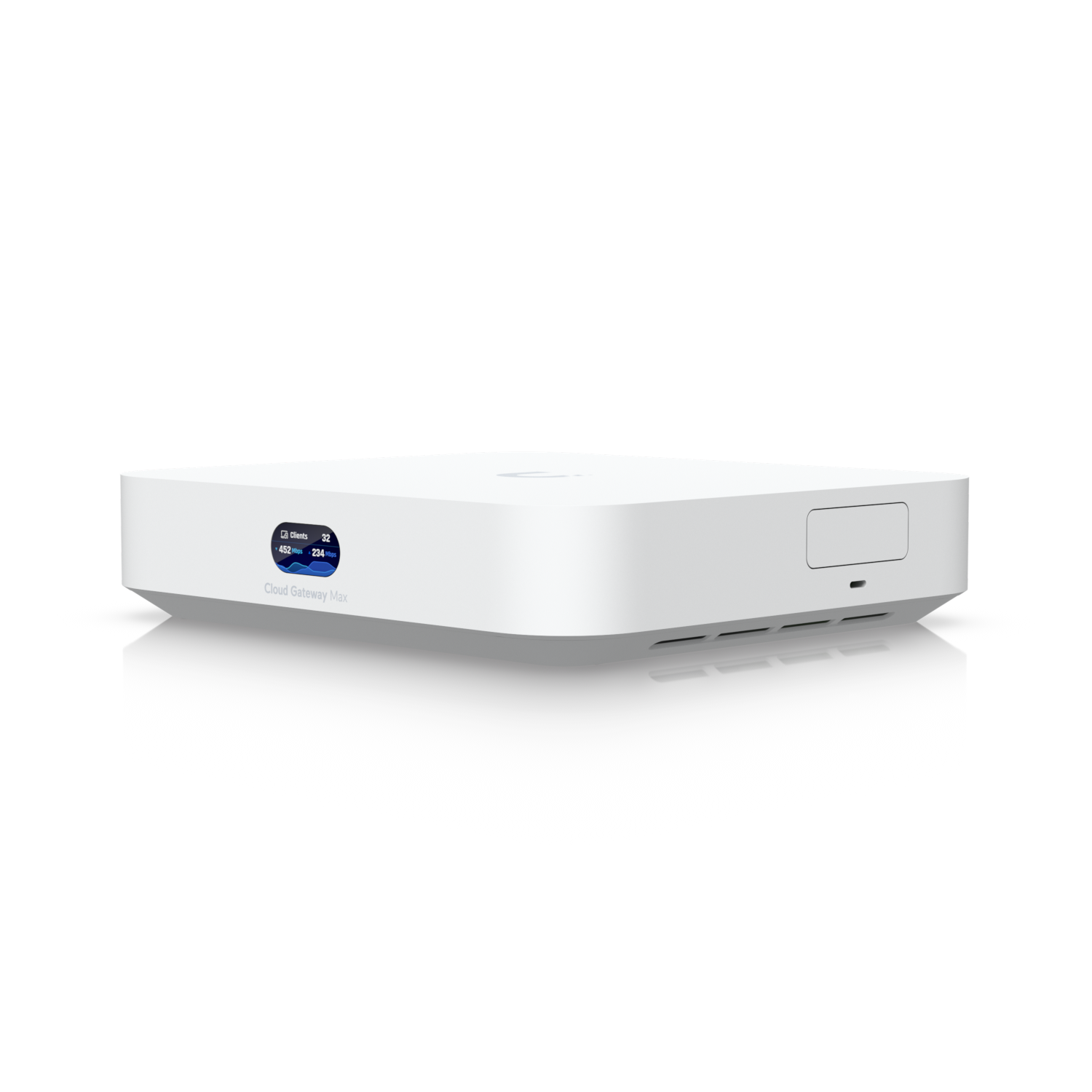

UniFi Cloud Gateway Max UCG-Max – Gateway - Figura 2

Click to enlarge

UniFi Cloud Gateway Max UCG-Max – Gateway

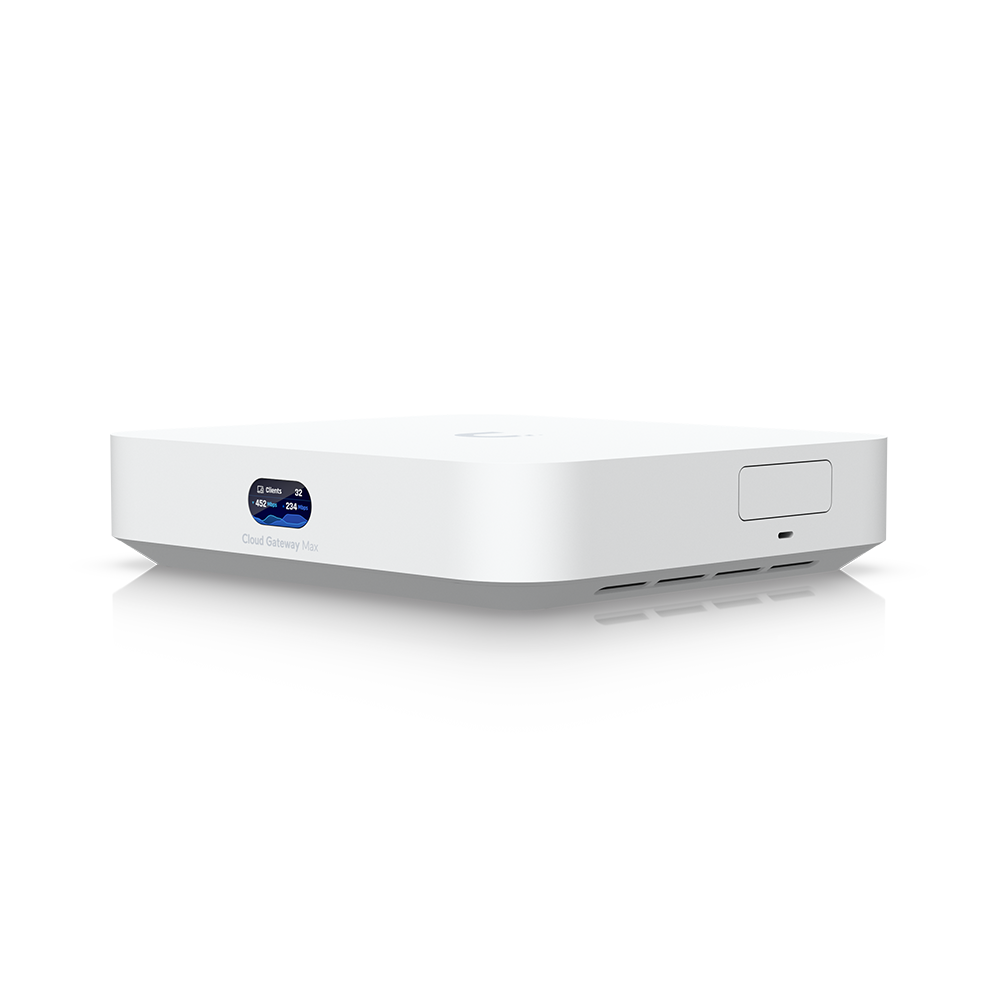

UniFi Cloud Gateway Max UCG-Max – Gateway - Figura 3

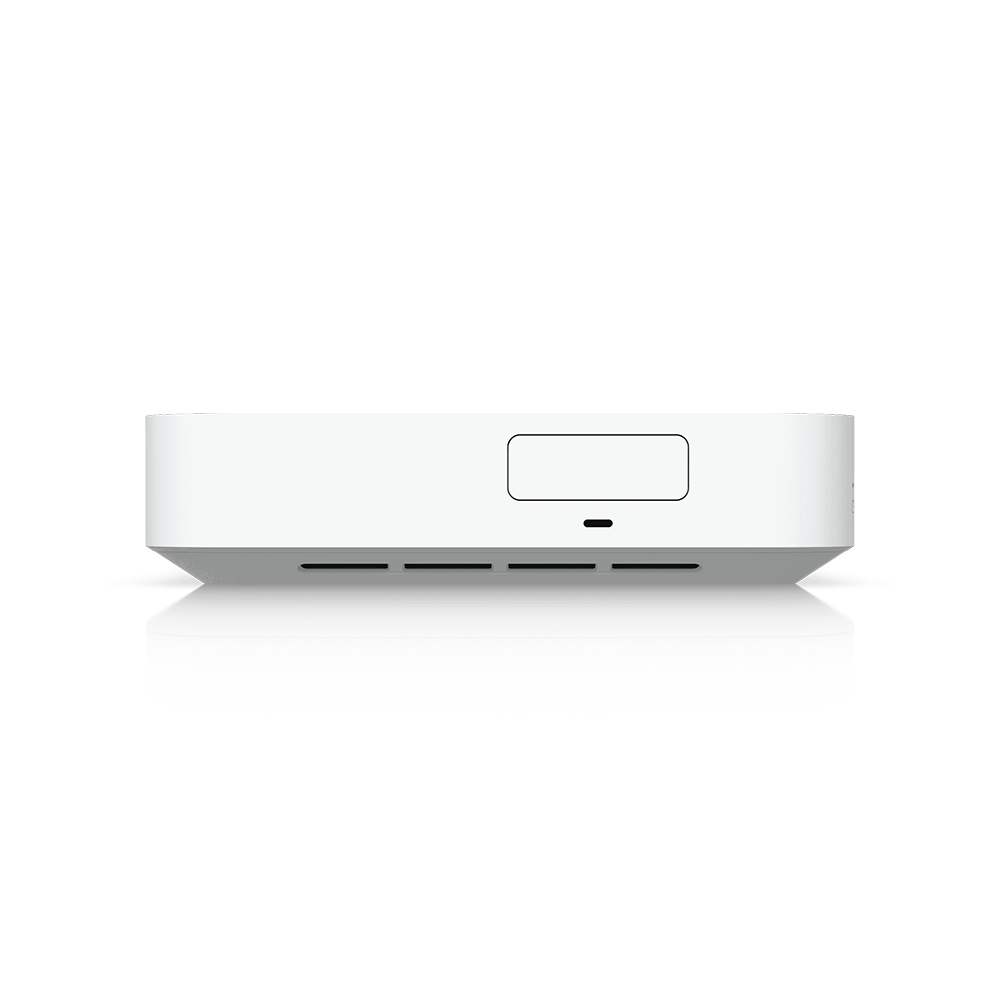

UniFi Cloud Gateway Max UCG-Max – Gateway - Figura 4

Kodi i produktit : 99023 Kategori: CloudKeys & Gateways - Unifi, UniFi Etiketa: FO, G, GM

Përshkrim

UniFi Cloud Gateway Max është gateway kompakt me 5 porta 2.5GbE, IDS/IPS 2.3Gbps, mbështetje për 30+ pajisje UniFi, deri 300+ përdorues dhe NVMe SSD deri 2TB për regjistrime. I përshtatshëm për zyra, biznese të vogla/mesme, kamera UniFi, VPN dhe menaxhim të avancuar të rrjetit.

Specification

Specification	Details
Model	UniFi Cloud Gateway Max
Device Type	UniFi Gateway / Console / NVR
Dimensions	141.8 × 127.6 × 30 mm
Form Factor	Compact Desktop
Managed UniFi Devices	30+
Managed Cameras	15 HD / 8 2K / 5 4K
Managed Access Hubs	50
Simultaneous Users	300+
UniFi Apps	Network, Protect, Access, Talk, Connect
WAN Port	1 × 2.5GbE RJ45
Max WAN Port Count	4
Port Layout	5 × 2.5GbE RJ45
IDS / IPS Throughput	2.3 Gbps
Firewall	Stateful Firewall, Layer 7 Firewall
Security Features	DPI, IPS/IDS, Content Filtering, Ad Blocking
IDS/IPS Signatures	55,000+ with CyberSecure
VLAN Segmentation	Yes
VPN Support	Site Magic, IPsec, OpenVPN, WireGuard, L2TP, Teleport
Multi-WAN Load Balancing	Yes
Dynamic Routing	OSPF
RADIUS	Integrated RADIUS, RadSec
NVR Storage	NVMe SSD up to 2TB
Processor	Quad-core ARM Cortex-A53, 1.5GHz
System Memory	3GB
Max Power Consumption	16.1W
Power Method	USB-C 5V DC / 5A
Power Supply	USB-C Adapter included
LCM Display	0.96" Status Display
Management	Ethernet, Bluetooth
Weight Without SSD	460 g
Weight With SSD	519 g
Enclosure Material	Polycarbonate
ESD/EMP Protection	Air ±8kV / Contact ±4kV
Operating Temperature	-10°C to 40°C
Operating Humidity	5% to 95% non-condensing
NDAA Compliant	Yes
Certifications	CE, FCC, IC, Anatel, SRRC
Mobile App Requirement	UniFi iOS / Android 10.17.2+

In The Box
