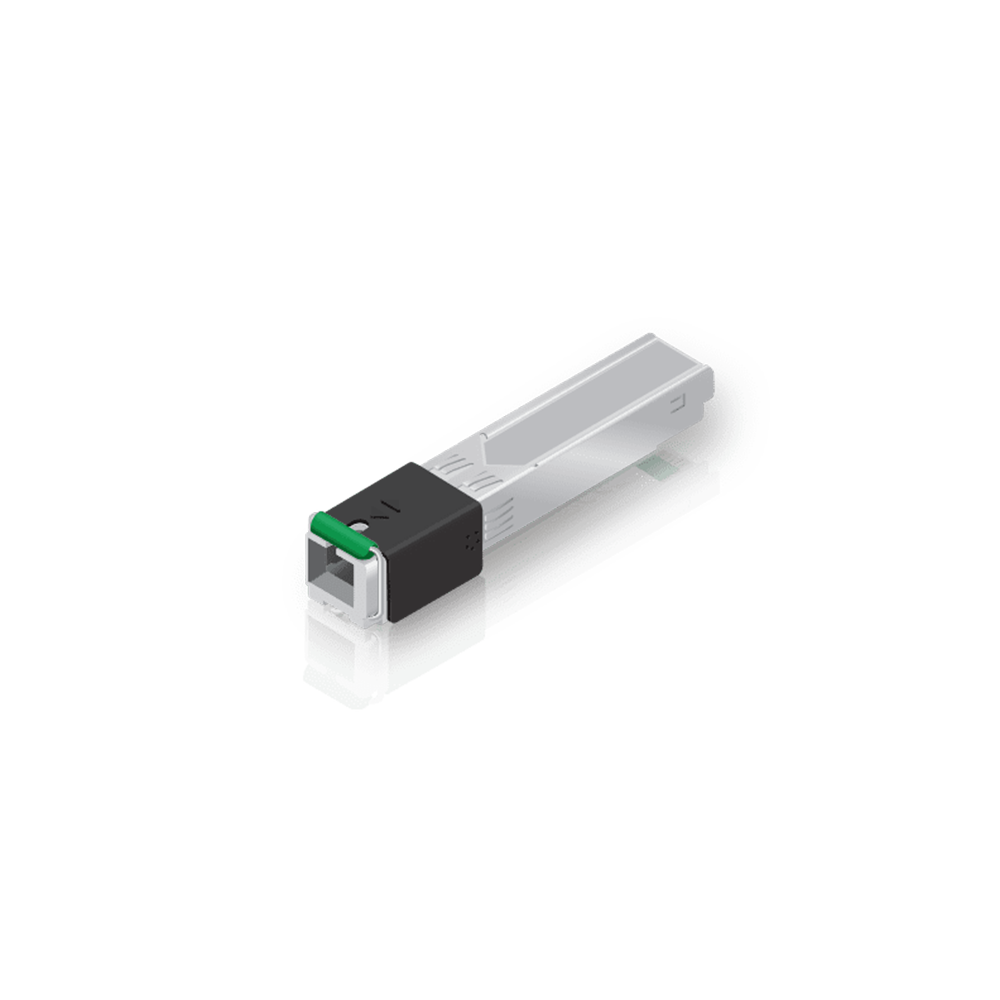

Ubiquiti UFiber Instant Optical Transceiver (UF-Instant)
The Ubiquiti UFiber UF-Instant is a high‑performance GPON CPE in the form factor of an SFP module. It features an SGMII Ethernet LAN port and is powered by SFP.
Ubiquiti UFiber UF-Instant Key Features
- High-Performance GPON CPE
- Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream GPON structure
- Supports up to 20 km GPON Links
- Powerful Layer 2/3 Management Features
- (1) GPON WAN Port, SC/APC
- (1) 1Gbps SFP interface
- 2W Max. Power Consumption
- Powered by SFP
Ubiquiti UFiber UF-Instant Technical Specifications
General
- Dimensions: 69.46 x 13.70 x 11.30 mm (2.74 x 0.54 x 0.45″)
- Weight: 30 g (0.96 oz)
- Networking Interfaces:
– (1) SC/APC, GPON WAN
– (1) SGMII Ethernet LAN - Networking Interface Speeds:
– GPON WAN, ITU G.984: 2.488 Gbps Downstream, 1.244 Gbps Upstream
– GbE LAN: 1 Gbps - Management Interface: In-Band Ethernet/PON
- Normal Optical Power Range:
– TX (Class B ): 1.5 to 5 dBm
– RX: -28 to -8 dBm - Power Method: SFP
- Power Supply: 3.3V
- Max. Power Consumption: 2W
- Supported Voltage Range: 3.3V
- Processor Specs: MIPS 100 MHz
- Memory Information: 32 MB DDR
- Operating Temperature: -10 to 45° C (14 to 113° F)
- Operating Humidity: 10 to 90% Noncondensing
- Certifications: CE, FCC, IC
