UniFi Access Reader G2 Professional (UA-G2-Pro)


464.84

Koha e arritjes së produktit : 19/04/2025 - 21/04/2025

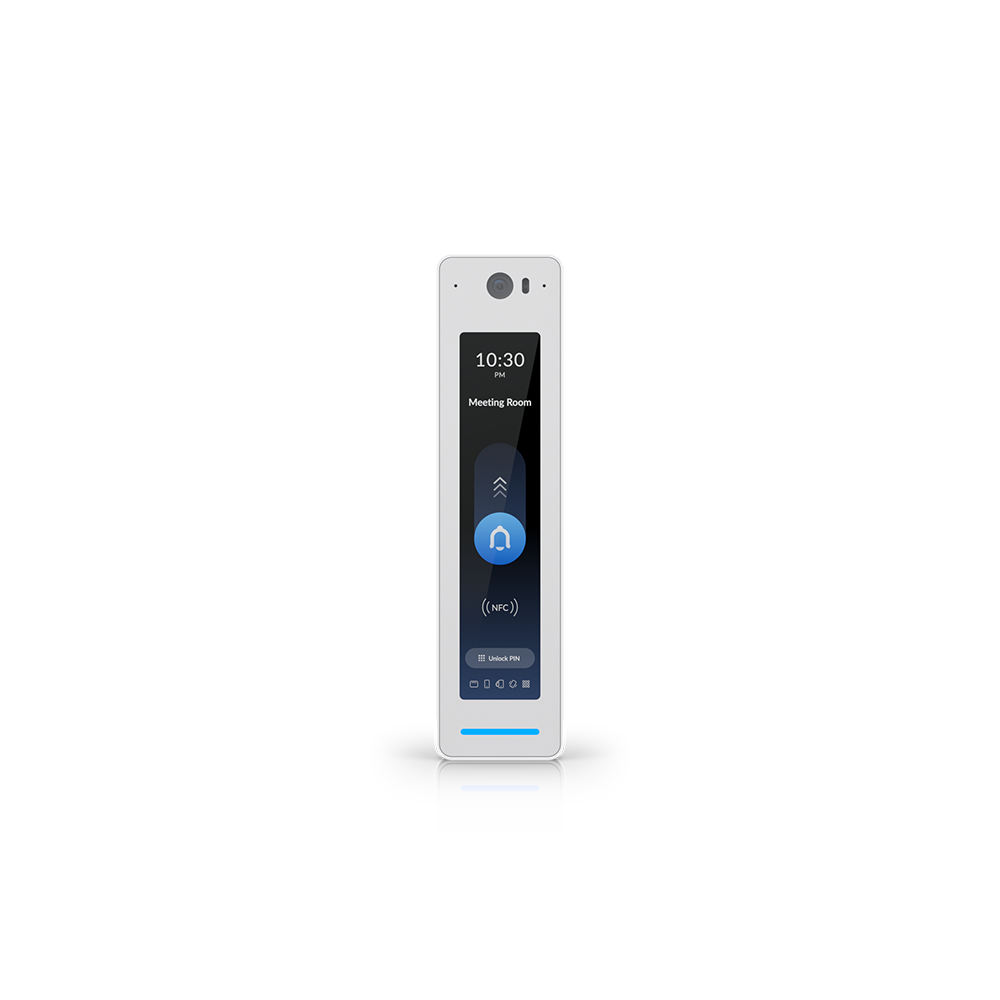

Ubiquiti UniFi Access Reader G2 Professional (UA-G2-Pro)

The Ubiquiti UniFi Access Reader G2 Pro is a cutting-edge access control solution that combines convenience, security, and versatility. Unlock your doors effortlessly using an NFC card or the UniFi Identity mobile app, offering flexible access options for users. The built-in doorbell feature triggers an intercom system with a video feed of the visitor, ensuring clear communication and ADA-compliant visibility. With PIN unlocking on the screen, an extra layer of authentication enhances security.

Seamless integration is made possible by connecting the UniFi Access Reader G2 Pro to the UniFi Access Hub using Power over Ethernet (PoE). This eliminates the need for additional power supplies and streamlines the installation process. Rain-resistant with an IP55 rating and capable of operating in temperatures from -10 to 40° C, this reader is suitable for indoor and outdoor use.

Ubiquiti UniFi UA-G2-Pro Key Features

  • Unlock using an NFC card or UniFi Identity mobile app
  • Doorbell to unlock, triggering the intercom with a video of a visitor
  • Video works at ADA-compliant mounting height
  • PIN unlocking on the screen
  • Connects to UniFi Access Hub using PoE
  • IP55 rain resistance (-10 to 40° C)
Experience a revolution in access control with the Ubiquiti UniFi Access Reader G2 Pro. Its user-friendly features, including NFC card and mobile app unlocking, video intercom, PIN authentication, and easy integration, make it an ideal choice for any facility. With its durability and weather resistance, this reader provides reliable access management in any environment.

UniFi Access App

The UniFi Access mobile app is a convenient, comprehensive management tool that allows you and other administrators to oversee every aspect of your access system, including connected doors, user rosters, reader devices, access cards, and security policies. With the app, you can also view real-time access event logs to maintain full vantage of visitor and employee traffic through your workplace.

Ubiquitu Access Application Diagram

Ubiquiti UniFi UA-G2-Pro Technical Specifications

Mechanical

  • Dimensions: 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6″)
  • Weight: 136 g (4.8 oz)
  • Enclosure material: Polycarbonate, glass
  • Mount material: Aluminum alloy
  • Mounting: Wall, gang box
  • Weatherproofing: IP55

Hardware

  • Networking interface: (1) 10/100/1,000 MbE RJ45 port
  • Connectivity: BLE 4.2
  • NFC
  • Power method: PoE
  • Supported voltage range: 48V DC
  • Max. power consumption: 6W
  • ESD/EMP protection: Air: ±15kV, contact: ±8kV
  • Sensor: ToF sensor
  • Camera: 4000 x 3000, 12 MP, 30 FPS
  • Microphone: Yes
  • Speaker: (1) 4 ohm, 1.5W
  • LEDs: R/G/B/W
  • Flash
  • Button: (1) Factory-reset
  • NFC frequency: 13.56 MHz
  • NFC read range: < 30 mm
  • NFC standards: ISO 14443A, 14443B, 15693
  • NFC technology: NFC Tag 1,2,3,4,5, MIFARE Classic, MIFAREPlus, MIFARE Ultralight, MIFARE DESFire
  • Operating temperature: -10 to 40° C (14 to 104° F)
  • Operating humidity: 5 to 90% noncondensing
  • Certifications: CE, FCC, IC

Software

  • Management application: UniFi Access: >Version 1.5.9 and later
SKU: 9538 Categories: ,
Category Specification
Overview
Dimensions 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6″)
Integrated Camera Yes
NFC Card & Keyfob Access Yes
PIN Access Yes
Mobile Unlock Yes
Two-Way Intercom & Doorbell Yes
Weatherproofing IP55
Mechanical
Weight 136 g (4.8 oz)
Enclosure Material Polycarbonate, glass
Mount Material Aluminum alloy
Mounting Wall, gang-box mount (Included); Angle mount, junction box (Optional)
Hardware
Indoor and Outdoor Use Yes
Ambient Operating Temperature Device: -30 to 45° C (-22 to 113° F); Display: -10 to 45° C (14 to 113° F)
Ambient Operating Humidity 5 to 90% noncondensing
Networking Interface (1) GbE RJ45 port
Connectivity BLE 4.2, NFC
Power Method PoE
Power Compliance UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption 6W
Supported Voltage Range 48V DC
ESD/EMP Protection Air: ±15kV, Contact: ±8kV
Sensors & Display
Sensors Proximity sensor
Display Size 120 mm (4.7″) diagonal
Touch Screen Capacitive touch
Display Luminance 480 nits (Typical)
Screen Orientation Portrait
Resolution 1280 x 286 px
Audio & Visual Indicators
Microphone Yes
Speaker Yes
LEDs R/G/B/W/Amber
Button (1) Factory-reset
NFC Details
NFC Frequency 13.56 MHz
NFC Read Range < 30 mm (1.18”)
NFC Technology ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
Cabling & Power Standards
PoE Cabling Requirements Min Cat 5e, 26 AWG for patch cords, 24 AWG for horizontal/riser cables
UL 294 Level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 Statement Compliance with IEEE 802.3 not verified. Complies with ANSI/NFPA 70, Article 725.121
CAN/ULC-60839-11-1 Grade Grade I
Certifications & Compliance
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document Info UA-G2-Pro/UA-G2-Pro-Black, V02
NDAA Compliant Yes
