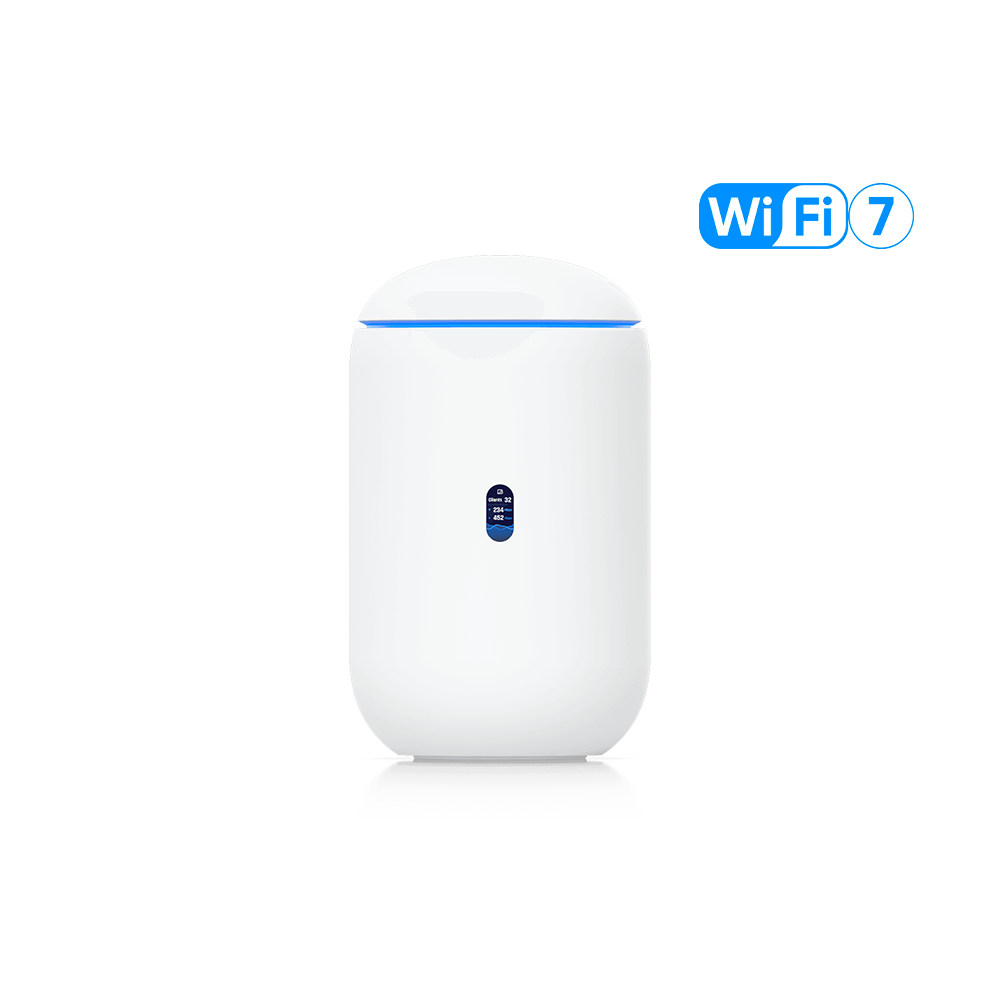

Ubiquiti UniFi Dream Router 7 (UDR7)
Meet the successor to the popular Dream Router, keeping the same form factor but with a significant performance and connectivity boost. The UniFi Dream Router 7 can seamlessly run all UniFi applications at once and boasts:
- An LCM status screen for at-a-glance updates
- A 2.5 GbE switch with a PoE port and an SFP+ port for WAN or LAN connectivity.
- SD-Card storage for Protect and other UniFi applications.
- An integrated power supply
- A super-antenna system for high-performance WiFi
With 6-stream 6GHz WiFi 7 performance and full 10 Gigabit support, the UDR7 is perfect for the networks of today and tomorrow. This is a perfect solution for a small branch office, coffee shop, or even for fiber ISPs looking for a perfect residential/SMB routing and Wi-Fi solution.
Ubiquiti UniFi Dream Router 7 Key Features:
- Integrated 6-stream WiFi 7 AP with 6 GHz support
- Includes full UniFi application suite for device management
- Manages 30+ UniFi devices and 300+ clients
- Integrated 4-port switch with (1) PoE port
- (1) 10G SFP+ and (1) 2.5 GbE RJ45 WAN port
- 64 GB microSD storage pre-installed (upgradable)
Ubiquiti UDR Technical Specifications
Mechanical
- Dimensions: Ø110 x 184.1 mm (Ø4.3 x 7.3″)
- Weight: 1.1 kg (2.4 lb)
- Enclosure material: Polycarbonate
Hardware
- Processor specs: Quad-core Arm® Cortex® A53 at 1.5 GHz
- System memory: 3 GB DDR4
- Expansion slot: MicroSD memory card* (optional) – *64 GB pre-installed microSD.
- Management interface: Ethernet, Bluetooth
- Networking interfaces: LAN: (3) 2.5 GbE RJ45 ports WAN: (1) 10G SFP+ port (1) 2.5 GbE RJ45 port
- PoE interface: (1) PoE (Pair A 1, 2+; 3, 6-)
- IDS/IPS throughput: 2.3 Gbps
- Power method: Universal AC input, 100—240V AC, 1.5A Max., 50/60 Hz
- Power supply: AC/DC, internal, 50W
- Supported voltage range: 100—240V AC
- Max. power consumption: 26W (Excluding PoE output)
- PoE budget: 15.4W
- Max. PoE wattage per port by PSE: 15.4W
- Voltage range PoE mode: 44—57V DC
- Max. TX power:
- 2.4 GHz 22dBm
- 5 GHz 26dBm
- 6 GHz 23 dBm
- MIMO
- 2.4 GHz 2×2 (DL/ UL MU- MIMO)
- 5 GHz 2×2 (DL/ UL MU- MIMO)
- 6 GHz 2×2 (DL/ UL MU- MIMO)
- Throughput rate
- 2.4 GHz 688 Mbps (BW40)
- 5 GHz 4.3 Gbps (BW240)
- 6 GHz 5.7 Gbps (BW320)
- Antenna gain
- 2.4 GHz 5 dBi
- 5 GHz 7 dBi
- 6 GHz 6 dBi
- LCM display: (1) 0.96″ screen
- Button: Factory reset
- LEDs: White/blue
- Ambient operating temperature: -10 to 40° C (14 to 104° F)
- Ambient operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC
Gateway Features
- Performance
- WiFi QoS with UniFi APs
- Application, domain, and country-based QoS
- Application and device type identification
- Additional internet failover with LTE Backup
- Internet quality and outage reporting
- Next-generation security
- Application-aware firewall rules
- Signature-based IPS/IDS threat detection
- Content, country, domain, and ad filtering
- VLAN/subnet-based traffic segmentation
- Full stateful firewall
- Advanced networking
- License-free SD-WAN
- WireGuard, L2TP and OpenVPN server
- OpenVPN client
- OpenVPN and IPsec site-to-site VPN
- One-click Teleport and Identity VPN
- Policy-based WAN and VPN routing
- DHCP relay
- Customizable DHCP server
- IGMP proxy
- IPv6 ISP support
Software
- WiFi standards: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
- Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
- BSSID: 4 per radio
- VLAN: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest traffic isolation: Supported
- Concurrent clients: 300+
Supported Data Rates
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
- 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
- 802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
- UniFi Network Version 9.0.108 and later
