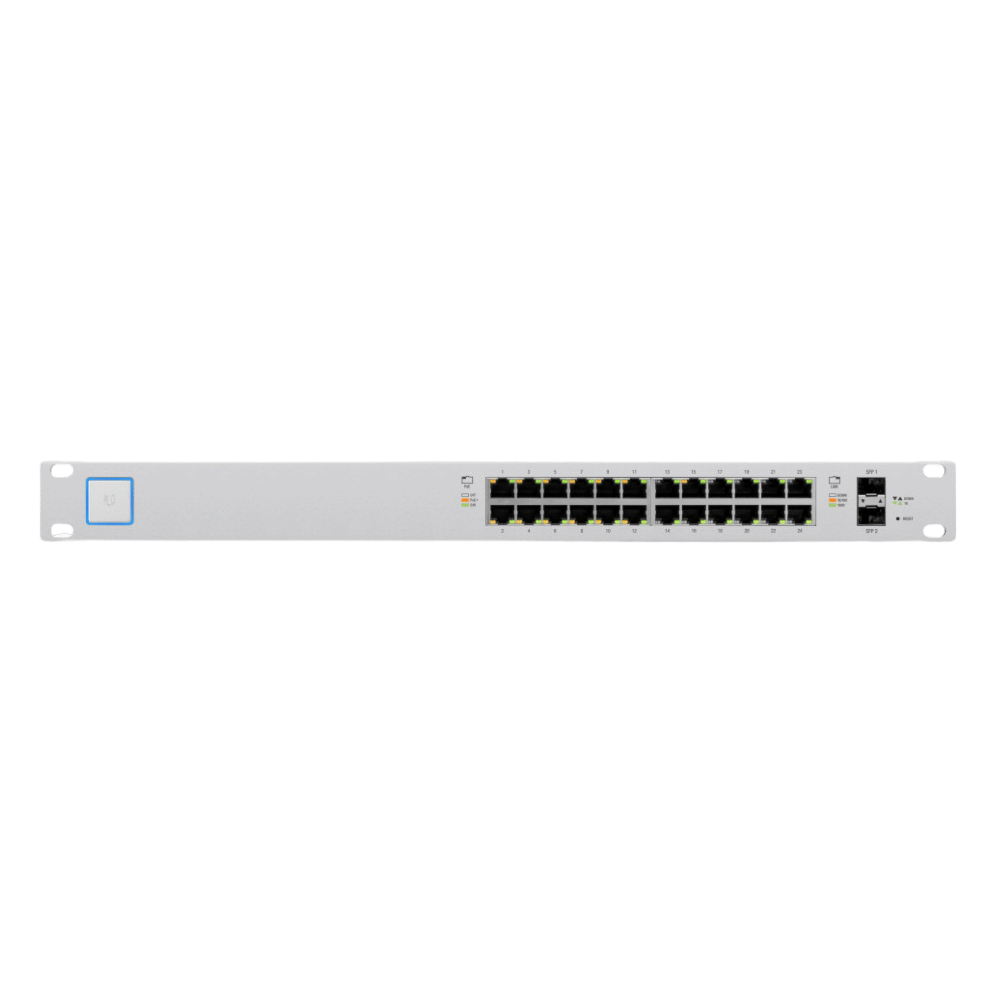

UniFi Switch 24 250W


US-24-250W – UniFi Switch, 24-Port, 250W

DATASHEET

  • Process All Ports at Line Rate / No Loss
  • Up to 26 Gbps Non-Blocking Throughput
  • 52 Gbps Switching Capacity
  • 250W Maximum Power Consumption
  • Custom Settings per Port
  • 2 SFP Ports – Up to 1 Gbps Fiber Uplinks
  • Auto-Sensing IEEE 802.3af/at
  • 24V Passive PoE
  • 38.69 Mpps Forwarding Rate
  • UniFi SDN Platform Seamless Integration



455.40

With 24 auto-sensing Gigabit Ethernet ports, the UniFi Managed PoE+ Gigabit 24 Port Switch with SFP from Ubiquiti Networks is capable of providing a stable, reliable network connection to a large number of Ethernet enabled devices. Add in 802.3af/at PoE compatibility and 250W of available power, and this managed PoE+ switch is capable of powering a variety of PoE compatible network components such as access points, VoIP phones, and much more. Along with Gigabit Ethernet connectivity users can connect high speed storage devices to either of the two SFP ports. Once configured, Ubiquiti’s own UniFi controller software makes network configuration and management simple as you can mange PoE settings, operation modes, VLAN configuration, storm control settings per port, and much more.

Key Specs
Inputs/Outputs
24x RJ45 Gigabit Ethernet
2x SFP Gigabit Ethernet
1x RJ45 LAN
Switching Bandwidth
52 Gb/s
26 Gb/s (Non-Blocking)
Performance
Forwarding Rate
38.69 Mpps
Switching Bandwidth
52 Gb/s
26 Gb/s (Non-Blocking)
Electrical
PoE per Port
17 to 34.2 W
Power Draw
250.00 W (Active)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Environmental
Operating Temperature
23 to 104°F / -5 to 40°C
Operating Humidity
5 to 95%
General
Certifications
No
Indicator Lights
Yes
Rack Mountable
Yes 1 RU
Dimensions
19.1 x 11.2 x 1.8″ / 48.5 x 28.5 x 4.5 cm
Weight
8 lb / 4 kg
Packaging Info
Package Weight
12.4 lb
Box Dimensions (LxWxH)
22.5 x 13.1 x 3.2″
