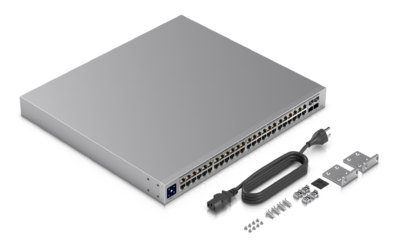

UniFi Switch PRO 48-Port Gigabit Managed Switch with SFP+


USW-PRO-48

DATASHEET

  • 48 x Gigabit Ethernet Ports
  • 40 x PoE+ Ports | 8 x PoE++ Ports
  • 4 x 10 Gb/s SFP+ Ports
  • 176 Gb/s Switching Capacity
  • 130.94 Mpps Forwarding Capacity
  • Rack-Mountable Design
  • 1.3″ Touchscreen Display
  • Passive Cooling
  • UniFi Controller Compatible

685.15

Expand your business’s network with the fully manageable second-generation UniFi Pro PoE 48-Port Gigabit Managed PoE Network Switch with SFP+ from Ubiquiti. Designed with Layer 3 protocol support, the passively cooled 48-port Gigabit switch features a total power budget of 600W across 40 32W PoE connectors and eight 64W PoE++ ports for power-intensive devices such as high-resolution network security cameras. Each port delivers 88 Gb/s non-blocking throughput with a 176 Gb/s switching capacity and a 130.94 Mpps forwarding rate. Four 10 Gb/s SFP+ ports are available for additional network expansion using compatible devices. Administrators may monitor and manage the switch with the 1.3″ touchscreen display or access and configure it and connected devices using the UniFi Network Controller application.
Key Specs
Inputs/Outputs
40x RJ45 Gigabit Ethernet WAN PoE+ (30 W, 802.3at)
8x RJ45 Gigabit Ethernet WAN PoE+ (30 W, 802.3at)
4x SFP+ 10 GbE WAN
Switching Bandwidth
44 Gb/s (Non-Blocking)
PoE Power Budget
600 W
Protocols
Layer Services Supported
Layer 2, Layer 3
Supported Protocols
Auto-MDIX/MDI
Port Mirroring
Performance
Forwarding Rate
65.47 Mpps
Switching Bandwidth
44 Gb/s (Non-Blocking)
Electrical
PoE per Port
32 to 64 W
PoE Power Budget
600 W
Power Draw
60.00 W (Max)
DC Input Power
11.5 to 52 VDC at 11.54 A
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Supply Type
Internal
Environmental
Operating Temperature
27 to 72°F / -5 to 40°C
Operating Humidity
10 to 90%
General
Certifications
CE, FCC, IC
Cooling System
Passive
Indicator Lights
Yes
Rack Mountable
Yes 1 RU
Dimensions
17.42 x 11.24 x 1.72″ / 442.4 x 285.4 x 43.7 mm
Weight
9.48 lb / 4.3 kg
Packaging Info
Package Weight
16.295 lb
Box Dimensions (LxWxH)
20.3 x 20.1 x 4.8″
