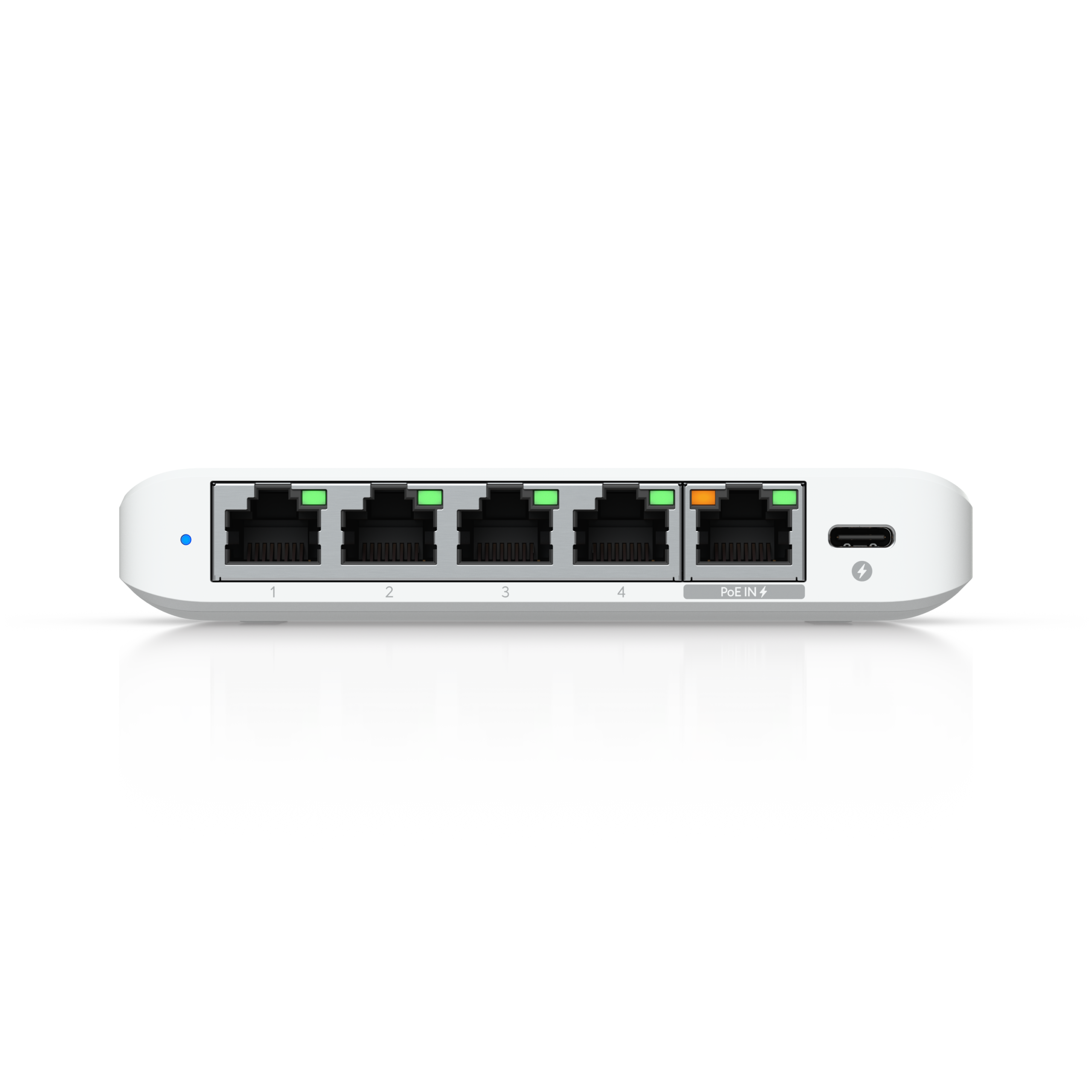

UniFi Flex Mini 2.5G Switch (USW-Flex-2.5G-5)

Ubiquiti USW-Flex-2.5G-5 Technical Specifications

Mechanical

• Dimensions: 117.1 x 90 x 21.2 mm (4.6 x 3.5 x 0.8″)
• Weight: 206 g (7.3 oz)
• Enclosure material: Polycarbonate

Hardware

• Management interface: Ethernet In-Band
• Networking interface: (5) 1/2.5 GbE RJ45 ports
• Total non-blocking throughput: 12.5 Gbps
• Switching capacity: 25 Gbps
• Forwarding rate: 18.6 Mpps
• Power method:
  • (1) AC power adapter, 5V DC, 1A
  • (1) PoE (PairA 1, 2+; 3, 6-) (PairB 4, 5+; 7, 😎
• Power supply:
  • External AC/DC adapter
  • UniFi PoE switch
• Supported voltage range:
  • AC/DC input: 5V DC
  • PoE input: 44—57V DC
• Max. power consumption:
  • AC/DC input: 5W
  • PoE input: 6.4W
• Button: Factory reset
• Ambient operating temperature: -20 to 45° C (-4 to 113° F)
• Ambient operating humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC

Switching Features

• Layer 2 features:
  • STP / RSTP with priorities and port-level disable
  • Port isolation
  • Storm control
  • Port mirroring
  • Multicast / broadcast rate limiting
  • Flow control
  • Jumbo frames
  • Egress rate limit
• Layer 3 features: –

LEDs

• System:
  • (1) Blue/white: power
  • Blinking white: bootup in progress
  • Blinking blue: firmware upgrading
  • Steady white: factory defaults; unit is awaiting adoption
  • Steady blue: unit is adopted
• Ethernet: (5) Green: link/activity

Application Requirements

• UniFi Network: Version 8.4.62 and later
