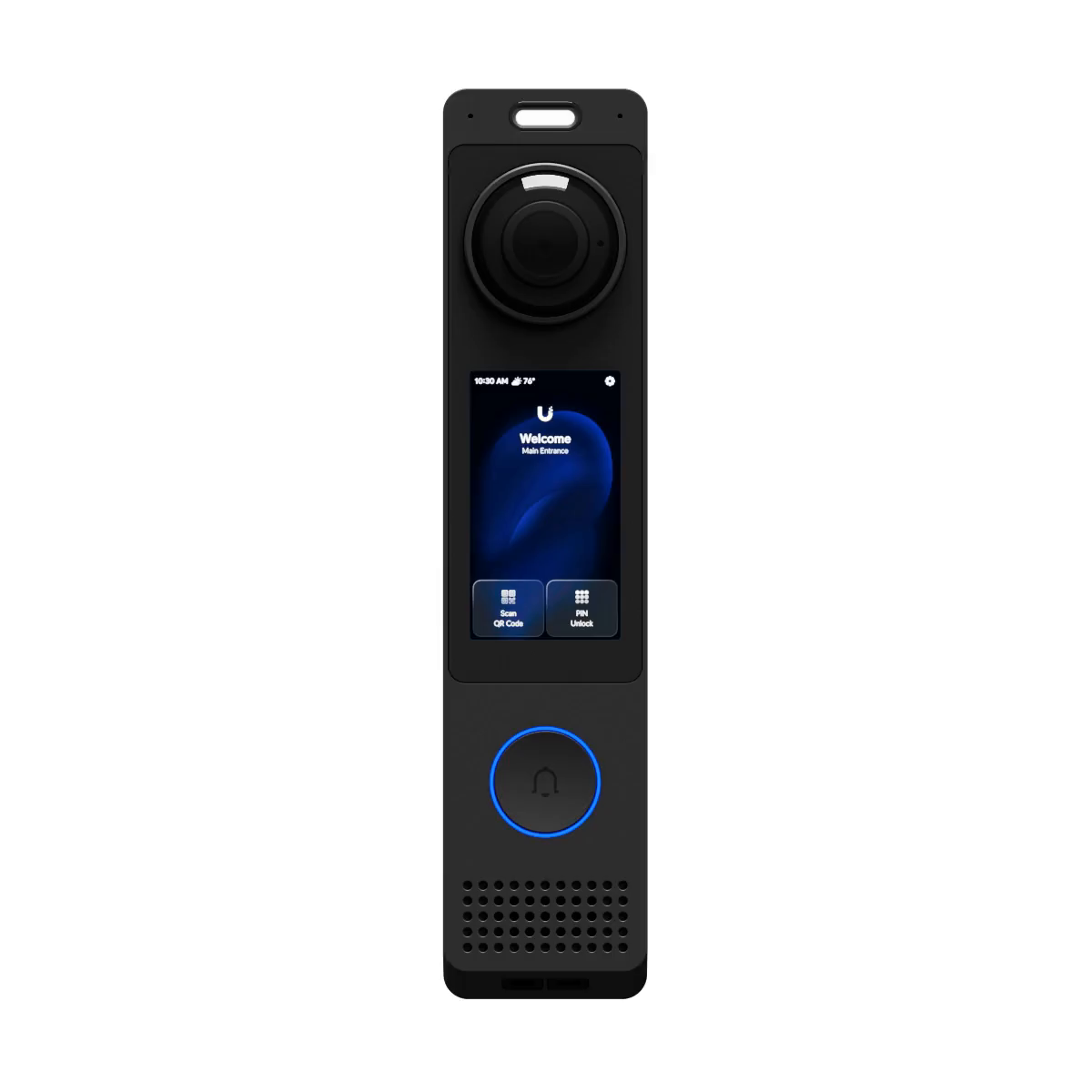

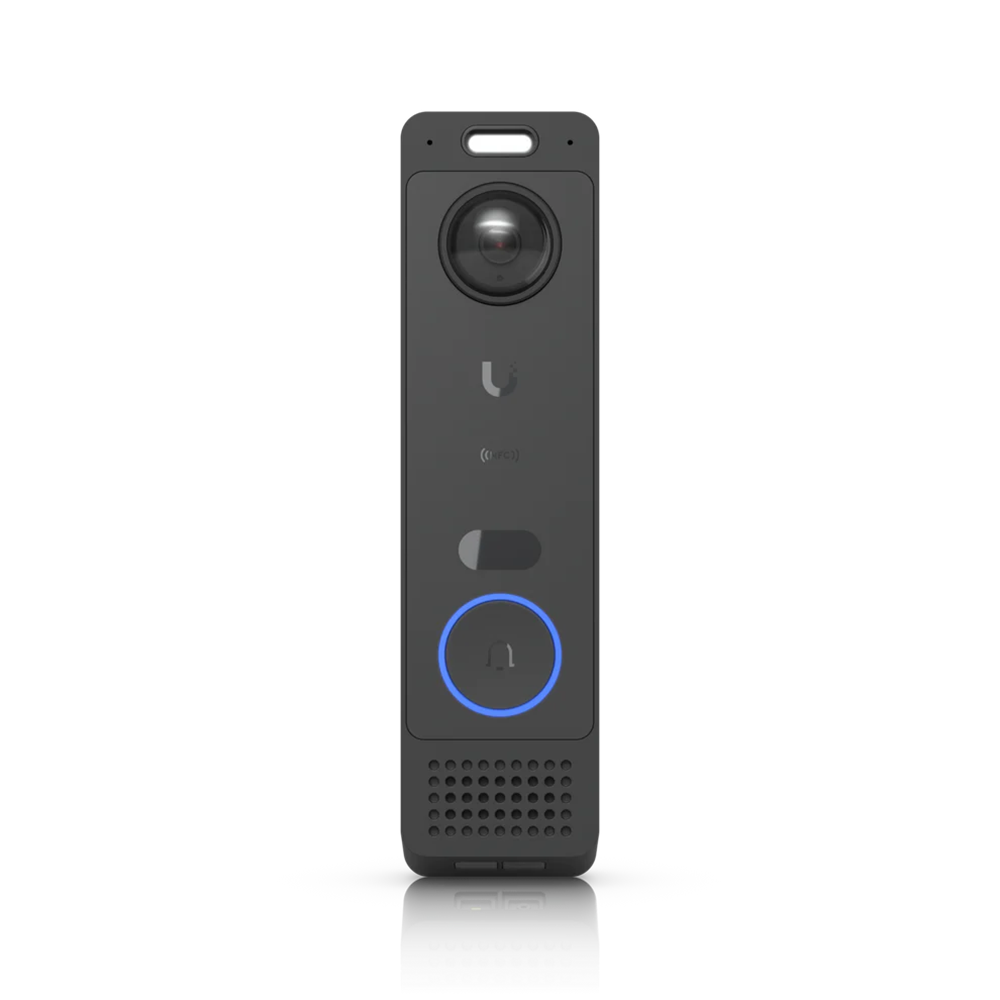

UniFi G6 Entry Doorbell (UVC-G6-Entry)

Ubiquiti UniFi G6 Entry Doorbell Technical Specifications

Overview

• Dimensions: 176 x 45 x 29.6 mm (6.9 x 1.8 x 1.2″)
• IR Night Vision: 5 m (16 ft)
• Face Recognition: Yes
• Smart Detections (People, Vehicles, Animals): Yes
• Resolution: 5MP
• Field of View: H: 100°, V: 135°, D: 180°
• Audio: Two-way audio
• Weatherproofing: IP55
• Tamper Resistance: IK07
• Mounting: Wall mount, Gangbox mount plate (Included), Junction box, 20° wedge mount (Optional)
• UniFi Application Suite: Protect – Yes

Performance

• Networking interface: GbE RJ45 port
• Connectivity: BLE 4.1, NFC
• Video:
  • Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
  • Max. Frame Rate: Main camera: 30 FPS, Package camera: 5 FPS
  • Resolution: Main camera: 5MP, 1920 x 2560 (3:4) Package camera: 8MP 3264 x 2448 (4:3)
• Optics:
  • Sensor:  Main camera: 5MP CMOS, Package camera: 8MP CMOS
  • Lens: Fixed focal length
  • Night Mode: Built-in IR LED illumination and IR cut filter

Hardware

• Max. power consumption: 16W
• Supported Voltage Range: 42—57V DC
• Power Method: PoE+
• Processor: Quad-core Arm® Cortex®-A53 based chip
• Weight: 275 g (9.7 oz)
• Enclosure: Material Aluminum
• Mount Material: Wall mount: Stainless steel, Gangbox mount plate: SGCC steel, Gangbox mount cover: Polycarbonate
• Button: (1) Ring button, (1) Factory-reset, (1) Tamper switch
• Ambient Operating Temperature: -30 to 50° C (-22 to 122° F)
• Ambient Operating Humidity: 5 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC
