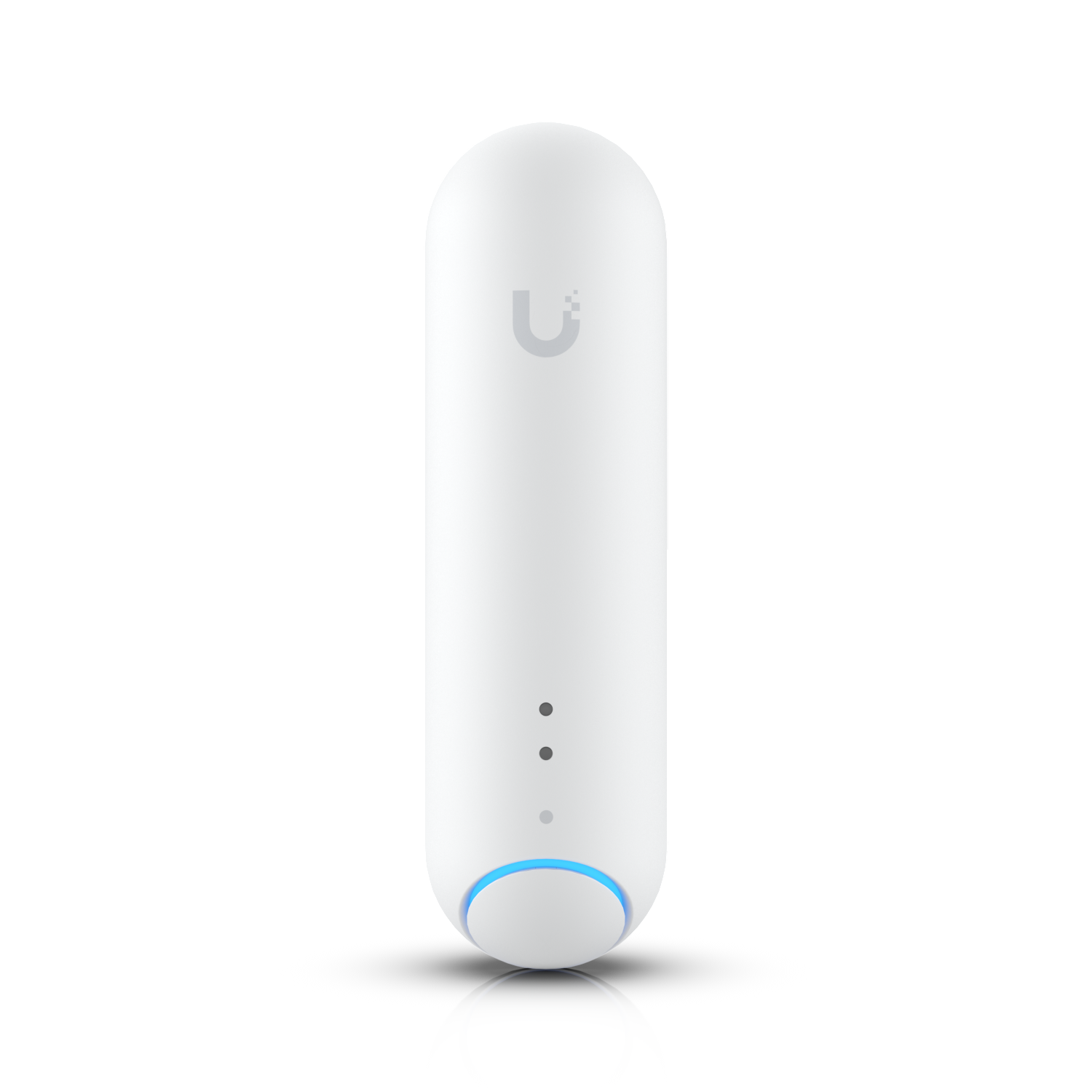

Unifi (UP-Sense) Multifunction Smart Sensor

Ubiquiti UniFi UP-Sense Technical Specifications

Mechanical

• Dimensions: Ø24 x 83.5 mm (Ø0.94 x 3.29″)
• Weight: 50.2 g  (1.77 oz)
• Enclosure Materials: Polycarbonate
• Mount Materials: Flat Wall Mount: Polycarbonate, Adhesive
• Corner Mount: Polycarbonate, Adhesive
• Additional Gear: Magnet
• Water Sensor Adapter (Only Available in the Three-Pack at General Release)

Hardware

• Processor: MCU Processor at 40 MHz
• Management Interface: UniFi Protect
• Networking Interface: Bluetooth 5.0, BLE
• Antenna: 2.4GHz
• Antenna Gain: 0.5 dBm
• Max. TX Power: 5dBm
• Max. Power Consumption: 77mW
• Power Method: Lithium Battery CR123A
• Sensor Features:
•     Motion Sensor (5 m/16 ft Maximum Range)
•     Magnetic Entry Sensor for Door or Window Open/Close
•     Accelerometer for Garage Door Open/Close
•     Temperature Sensor
•     Humidity Sensor
•     Ambient Light Sensor
•     Alarm Sound Sensor
•     Water Sensor for Detecting Leaks and Floods (Requires Water Sensor Adapter Accessory)
•     BLE Connectivity from Access Point in Indoor Setting (Recommended Range 15 m/49 ft)
• Button: Factory Reset
• LEDs: R/B/W
• Operating Temperature: 0 to 45° C (32 to 113° F)
• Operating Humidity: 10 to 90% Non Condensing
• Certifications: FCC, IC, CE
