DESCRIPTION
Rated temperature:70℃
Reference standard:UL Subject 444, EIA/TIA 568B.2-10
& ISO/IEC 11801, IEC 61156
Solid bare copper conductor
Colour-coded PE insulation
Rip cord (optional)
PVC or LSZH jacket
Packaging: Reel,Reel in Box
APPLICATION
100 Base-T4
100Base-TX
100VG-AnyLAN
1000Base-T
1000Base-TX
155Mbps ATM
622Mbps ATM

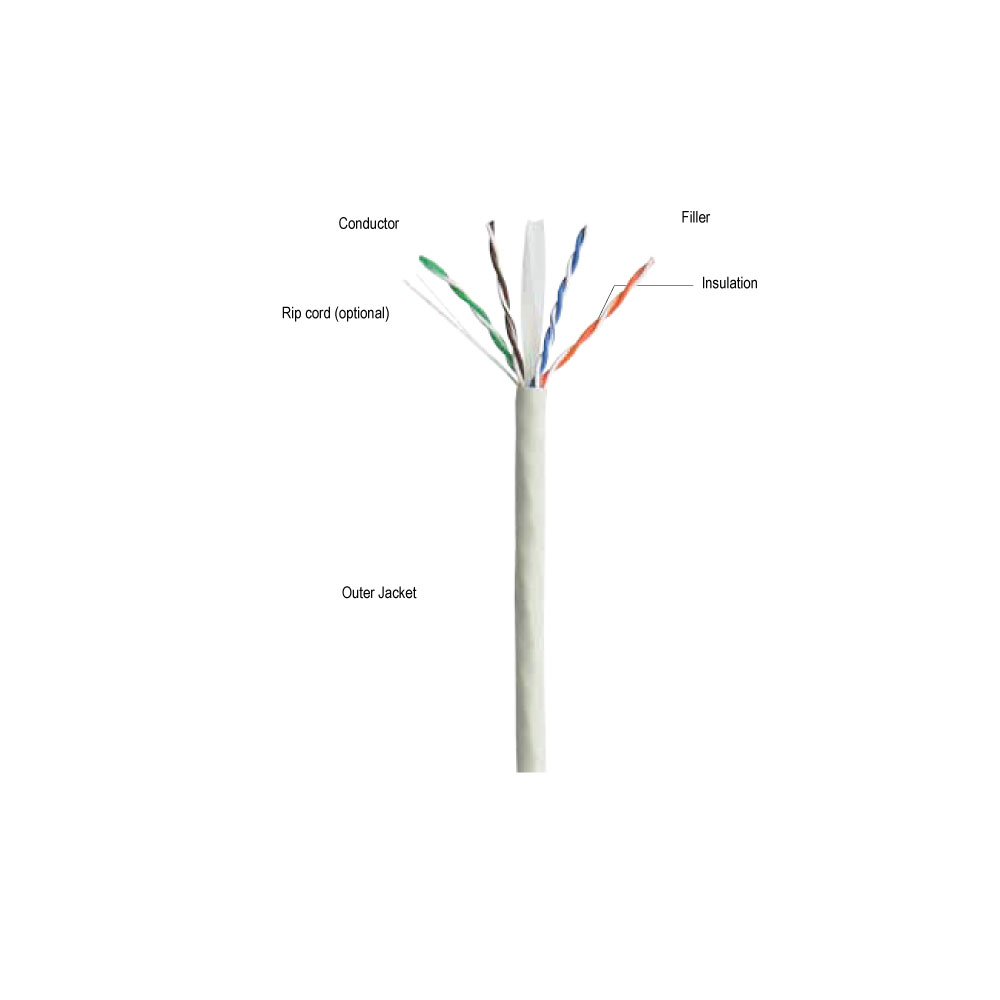

Construction
UTP
Number of Pairs
?? Pair
AWG
??AWG
Conductor Dimension (mm)
0.555±0.005mm
Insulation material
HDPE
Operating Temp. Range
-20~70℃
